[Hands-On] Best 9mm AR Lowers for Your AR-9 Build

Ready to build your own pistol caliber carbine? We've got the details on the best 9mm ar lowers you should add to your AR-9 PCC build.

Pistol caliber carbines are more popular than ever.

At the same time, more and more gun owners are custom building their own ARs or looking to upgrade or convert.

3. Faxon Bantom 16 Inch PCC in Desert
C’mon, PCCs are just cool!

So, it’s no surprise that there’s a growing market for 9mm lowers and other PCC parts.

Choosing a 9mm lower can be tricky if you’re not familiar with lowers. Even if you know your stuff, the sheer number of options can seem daunting.

PSA PX-9 Lower
PSA PX-9 Lower

Fortunately, you’ve got us and we love to help!

We’ve used tons of different 9mm lowers over time and this list encompasses some of our favorites.

But before we jump into the best 9mm lowers, let’s go over what you need to know about these parts in general.

Table of Contents

Loading...

The Low-Down on Lowers: 9mm Style

First let’s talk about how a 9mm lower is different than a standard 5.56/.223 model.

For one, 9mm setups use a blow-back system, rather than a gas system like you find on a standard AR-15.

PSA AR-15 Lowers
These AR-15 lowers look way different than their 9mm counterparts.

Because of this, 9mm lowers come with a pre-installed ejector since they require a smaller fire control group. It’s that fin-looking thing below.

PSA PX-9 Lower
PSA PX-9 Lower

The other major difference is that 9mm lowers feature a different magazine well and mag catch/release – either Colt or Glock style.

When selecting a 9mm lower, you’ll want to be aware of which you prefer and choose your lower to match Colt mags or Glock mags.

PSA PX-9 Glock Magazine Magwell
Note the Glock magwell on the PSA PX-9.

There are a couple of other things to keep in mind when choosing a 9mm lower.

Lowers can be either come stripped or fully assembled.

A stripped lower includes the receiver itself and minimal or no other parts and hardware. You’ll need to buy the rest of the lower assembly parts individually or as a lower parts kit (LPK).

Foxtrot Mike FM-9 Billet Lower
A Foxtrot Mike stripped lower.

But don’t worry…the ejector and mag release are almost always installed already.

Stripped receivers give you the room to hand-pick every single part of your lower assembly for the ultimate custom feel. Check out our Guide to Assembling a Lower.

A fully assembled (or complete) lower will come ready to shoot as soon as it’s attached to a complete upper assembly with everything installed.

Foxtrot Mike FM-9 Billet Lower Receiver, Complete
The same Foxtrot Mike lower as above, but a completed version.

Fully assembled lowers require less work and typically cost less than buying parts individually. On the other hand, don’t expect them to include high-end parts.

One thing you don’t typically need to consider is material.

Most lowers use 7075 aluminum, a durable and lightweight metal.

7075 vs 6061, Proto Labs
A breakdown of 7075 vs 6061 (Photo: Proto Labs)

Many of the receivers on this list opt for 7075 and also all have a black hard coat anodized finish.

This coating makes the surface aluminum harder and more resistant to corrosion and wear.

Word of warning: lower receivers, whether stripped or complete, are considered firearms.

So, you’ll have to have them delivered to an FFL and go through the normal transfer process.

ATF Meme Guy
Don’t want these guys knocking at your door.

If you haven’t bought a gun online before, don’t worry.

It’s super straightforward and your FFL will be able to help you get the info you need, but you can also check out How to Buy A Gun Online to get up to speed.

Used Gun Sites
Buying online is suuuper easy.

Now that you know what a 9mm lower is and how it differs from a standard AR-15 receiver, let’s talk about our favorites.

Best 9mm AR Lowers

1. PSA 9mm Classic Colt-Style Pistol Lower

First up is the Palmetto State Armory 9mm Classic Colt-Style Lower Receiver.

It’s a fully assembled lower receiver that, as you can probably guess based on the name, accepts Colt-style magazines.

PSA 9mm Colt Lower
PSA 9mm Classic Colt-Style Lower

Designed to pair with a PSA Hybrid 9mm Upper, this does limit your upper receiver options.

But the PSA uppers are good too, so it’s not a big deal.

This complete lower is available in two versions.

160
at Palmetto State Armory

Prices accurate at time of writing

Prices accurate at time of writing

PSA 9mm Classic Colt-Style Pistol Lower
$160 at Palmetto State Armory

Prices accurate at time of writing

One has a PSA Pistol lower build kit with an A2 grip, sling loop latch plane, and 7075 T6 aluminum pistol buffer tube.

The other has a PSA lower build kit with an A2 grip, 6-position buffer tube, and M4 style stock.

160
at Palmetto State Armory

Prices accurate at time of writing

Prices accurate at time of writing

PSA 9mm Classic Colt-Style Lower, M4
$160 at Palmetto State Armory

Prices accurate at time of writing

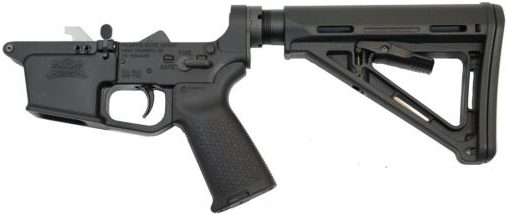

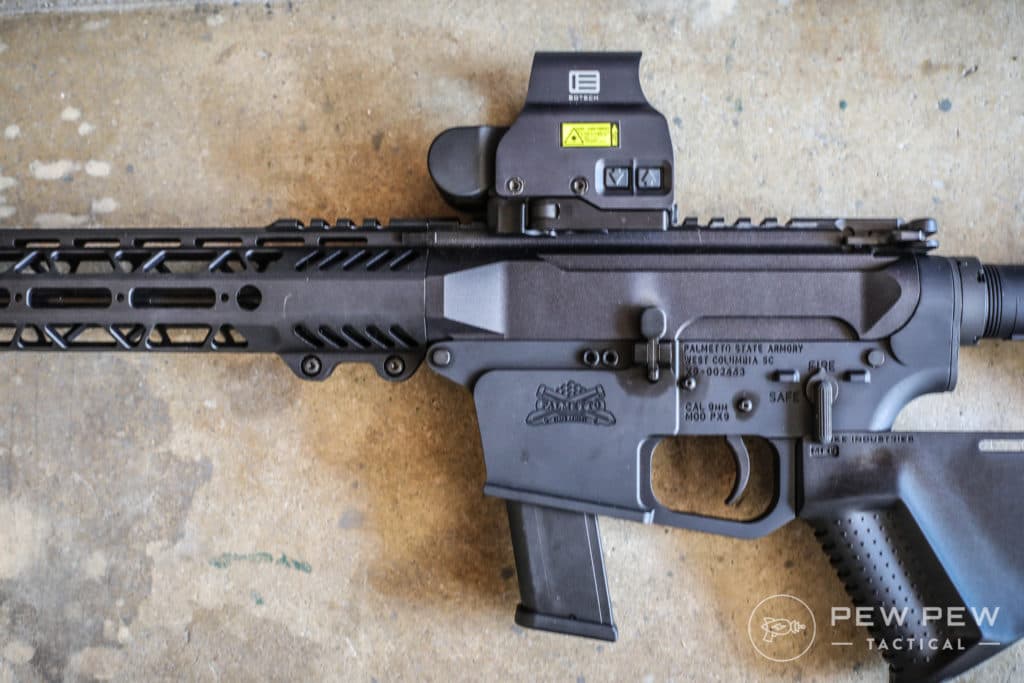

2. PSA PX-9 Forged Complete Glock-Style MOE Lower

If you’d rather use Glock mags, PSA has a complete lower receiver for that too.

And it’s our current favorite entry-level lower.

Like the first PSA option, this lower is designed to pair with a PSA Hybrid 9mm Upper.

PSA PX-9 Sharp Lower Receiver
PSA PX-9 Sharp Lower Receiver

Unfortunately, it doesn’t feature last round bolt hold open capability (LRBHO). What that means is when your mag is dry it won’t automatically lock the bolt open.

You’ll probably not know and press the trigger to hear a *click*, then have to drop the mag, insert a new mag, and rack the bolt.

That’s what puts in an “entry-level” category. But if you run 33-round Glock mags you’ll seldom run out!

25
at Gun Mag Warehouse

Prices accurate at time of writing

Prices accurate at time of writing

Glock OEM Magazines (All Capacities)
$25 at Gun Mag Warehouse

Prices accurate at time of writing

There are three versions of the lower you can choose.

The first has a pistol grip and stock from the ever-popular Magpul MOE line, a PSA Single Stage AR-15 trigger group, and a PSA 7075 6-position adjustable buffer tube.

290
at Palmetto State Armory

Prices accurate at time of writing

Prices accurate at time of writing

PSA PX-9 Forged Complete Glock-Style MOE Lower
$290 at Palmetto State Armory

Prices accurate at time of writing

A second version has all of these but uses an Enhanced Polished Trigger (EPT) instead.

340
at Palmetto State Armory

Prices accurate at time of writing

Prices accurate at time of writing

PSA PX-9 Forged Complete Glock MOE EPT Lower
$340 at Palmetto State Armory

Prices accurate at time of writing

The third version is the same as the first, but with a Magpul STR stock instead of the Magpul MOE stock.

380
at Palmetto State Armory

Prices accurate at time of writing

Prices accurate at time of writing

PSA PX-9 Forged Complete Glock-Style MOE STR Lower
$380 at Palmetto State Armory

Prices accurate at time of writing

Whichever one you go with…you can’t go wrong with the price.

Or go with a stripped version and build it yourself!

PSA PX-9 Lower
PSA PX-9 Lower
209
at PSA

Prices accurate at time of writing

Prices accurate at time of writing

PX-9 Stripped Lower
$209 at PSA

Prices accurate at time of writing

See our review of the PSA PX-9 complete gun and a quick vid of one of our editors in action:

What’s your take on the PX-9 for an entry-level 9mm AR lower?

Readers' Ratings

4.99/5 (349)

Your Rating?

3. CMMG AR-15 9mm Dedicated Lower Receiver

The CMMG AR-15 9mm Dedicated Lower Receiver

Like our others, it’s made from forged 7075 T6 aluminum and hard coat anodized. However, CMMG takes it a step further by also adding a Teflon coat after the anodization.

CMMG AR-15 9mm Dedicated Lower

What does this achieve? Basically, it resists scuffs, scratches, and discoloration.

This stripped lower uses Colt pattern magazines.

It comes with the feed ramp, ejector, and bolt catch pre-installed and you can add whatever trigger group, buttstock, and buffer system you prefer.

195
at Brownells

Prices accurate at time of writing

Prices accurate at time of writing

CMMG AR-15 9mm Dedicated Lower Receiver
$195 at Brownells

Prices accurate at time of writing

4. Foxtrot Mike Products FM-9 Billet Lower Receiver

Next up is the Foxtrot Mike Products FM-9 Billet Lower Receiver.

This lower comes in both complete and stripped versions (the complete lower is a Brownells exclusive).

Foxtrot Mike FM-9 Billet Lower Receiver, Complete
Foxtrot Mike FM-9 Billet Lower Receiver, Complete

The receiver itself is compatible with mil-spec AR-15 components and Glock-style magazines.

Also worth mentioning, it offers last round bolt hold open.

A mag release and bolt release come pre-installed on the stripped receiver.

The complete lower comes with a lower parts kit which includes a 6.5-ounce heavy buffer, mil-spec 6-position carbine buffer tube, GI Trigger Group, and .308 carbine recoil spring.

Side note: there’s no stock.

Also, for all your Californians — this receiver is not California legal.

Bummer.

270
at Brownells

Prices accurate at time of writing

Prices accurate at time of writing

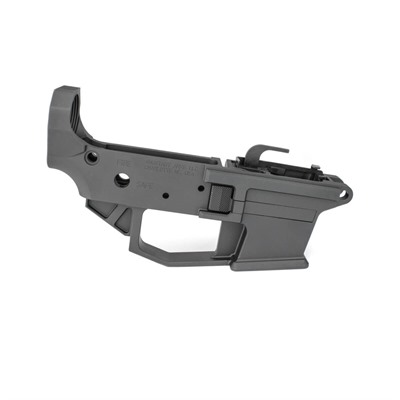

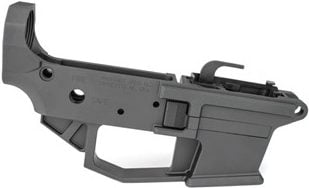

5. Angstadt Arms 0940 AR-15 Lower Receiver

The Angstadt Arms 0940 AR-15 Lower Receiver for Glock is another great stripped lower.

As the name implies, it takes Glock mags and does so using a flared magwell. We love a flared magwell as it makes for easier magazine insertion.

Angstadt Arms 0940 AR-15 Lower

Bonus to this platform?

The Angstadt accepts 9mm, .40 S&W, and .357 SIG, so you could also use this receiver for other PCC builds. (Though it only accepts aftermarket Glock 9mm double-stack mags.)

Angstadt UDP-9 at Sunset
Angstadt UDP-9 at Sunset

More bang for the buck? Sign me up!

Like the rest of these lowers, it uses 7075-T6 aluminum and a matte black hard coat anodized finish. Weighing 10-ounces, this one is pretty lightweight relative to other lowers.

Rounding out the features: last round bolt hold open, an oversized trigger guard, and a threaded bolt catch screw.

It also works with any mil-spec upper, a 9mm bolt carrier assembly, and a standard AR-15 hammer.

Check out our video+review of the lower in the complete UDP-9 gun.

Angstadt UDP-9 On a Stump
Angstadt UDP-9 On a Stump

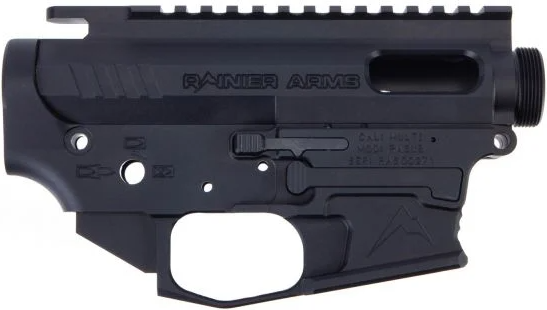

6. Rainier Arms 9mm Billet Receiver Set

Our next option, the Rainier Arms 9mm Billet Receiver Set, includes both upper and lower receivers to give you a head start on your PCC build.

Both lowers are proprietary Rainier Arms designs, so you can’t mix and match them with other uppers and lowers.

But that’s probably not what you’re opting for with a set, is it?

Rainier Arms 9mm Billet Receiver Set
Rainier Arms 9mm Billet Receiver Set

The set comes with a tensioning screw to help you ensure the perfect fit between the upper and lower.

Like the Angstadt Arms lower, this one accepts 9mm, .40 S&W and .357 SIG factory Glock magazines, as well as aftermarket Glock 9mm double stack mags.

Glock G43X and G48 and Mags
Got some Glock mags? You’re good to go!

It also uses a flared magwell and threaded bolt catch screw. Oh, and you also get last round bolt hold open for empty magazines.

The upper has A4 feed ramps, an ambidextrous bolt release, and a spacious ejection port.

Other notable features include the threaded retainer screw for the takedown pin, zinc-plated extractor, and compatibility with a short throw safety selector.

475
at Rainier Arms

Prices accurate at time of writing

Prices accurate at time of writing

Rainier Arms 9mm Billet Receiver Set
$475 at Rainier Arms

Prices accurate at time of writing

7. New Frontier Armory C-9 Billet Lower Receiver

Last up is the New Frontier Armory C-9 Billet Lower Receiver — an incredibly versatile lower that’s one of our favorites.

This is a multi-caliber lower that can be paired with 9mm, .40 S&W, .357 SIG, and other small frame caliber upper receivers.

NFA C9
The NFA C9 fully built out.

It accepts Glock style magazines in those calibers, including both factory Glock mags and aftermarket magazines.

To make loading magazines faster and easier, the precision-machined magwell has a beveled feed lip.

It uses a proprietary magazine catch assembly with a factory-installed ejector.

NFA C9
Looking good.

Since it’s made to mil-spec standards, the C-9 Billet Lower also doesn’t limit your options for other components too much.

The platform offers compatibility with most standard and aftermarket AR-15 components in addition to 45- and 60-degree short throw fire control selectors.

The takedown pin spring and detent hole and bolt catch pin hole are both threaded and come with the necessary hardware.

An upper tension screw is also included to help you get a neat fit with whichever upper you choose.

It has an oversized “winter” style trigger guard and ambidextrous trigger finger rests.

Finally, the New Frontier Armory C-9 Billet Lower Receiver comes in stripped and complete options.

(Psst…watch the video below to see it in action.)

The complete version comes with a factory-installed LPK, standard carbine buffer, buffer spacer, and stock kit, including a B5 Bravo collapsible stock.

You can find out more about this great lower and New Frontier Armory’s corresponding upper by reading our more comprehensive review.

290
at Primary Arms

Prices accurate at time of writing

Prices accurate at time of writing

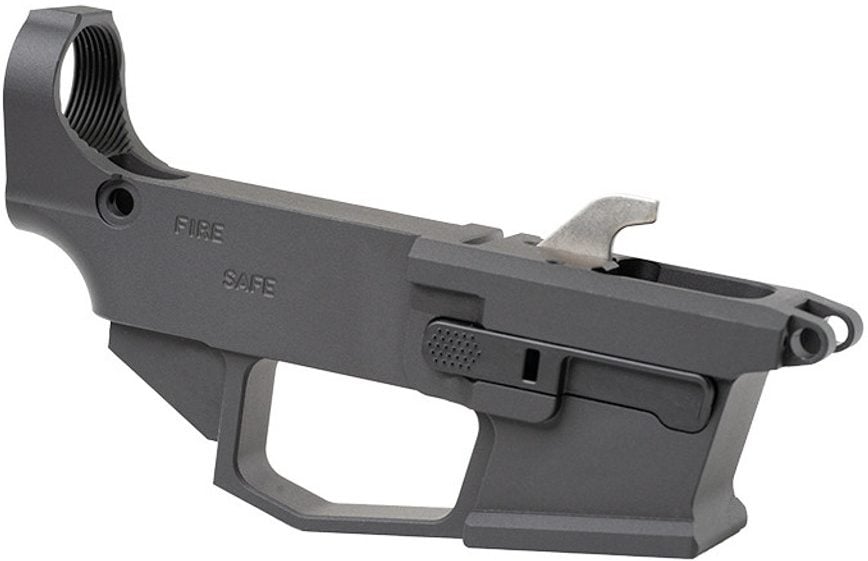

8. 80% Arms AR-9 80% Lower Receiver

If you’re looking for an 80% lower, 80% Arms as your back with their AR-9 80% Lower Receiver

Since it’s an 80% lower, it can be legally shipped to your home, no FFL needed. However, that also means you’ll need to finish machining the receiver yourself.

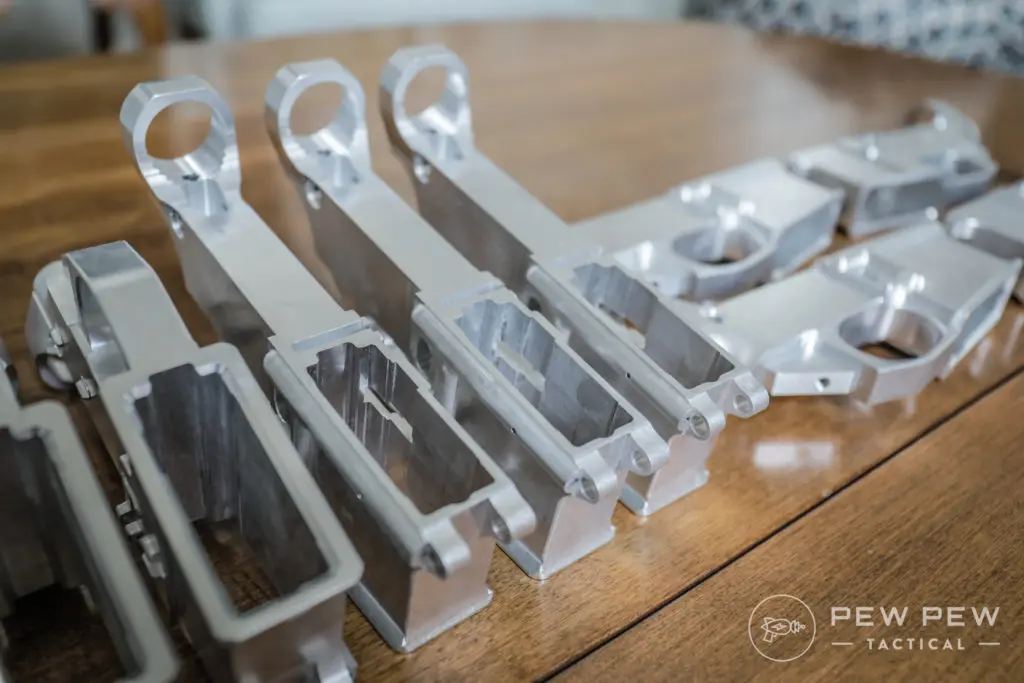

Some 80% AR-15 Receivers
Some 80% AR-15 Receivers

That, in turn, means that you have to have the equipment to do so. Fortunately, that’s just a router and a power drill.

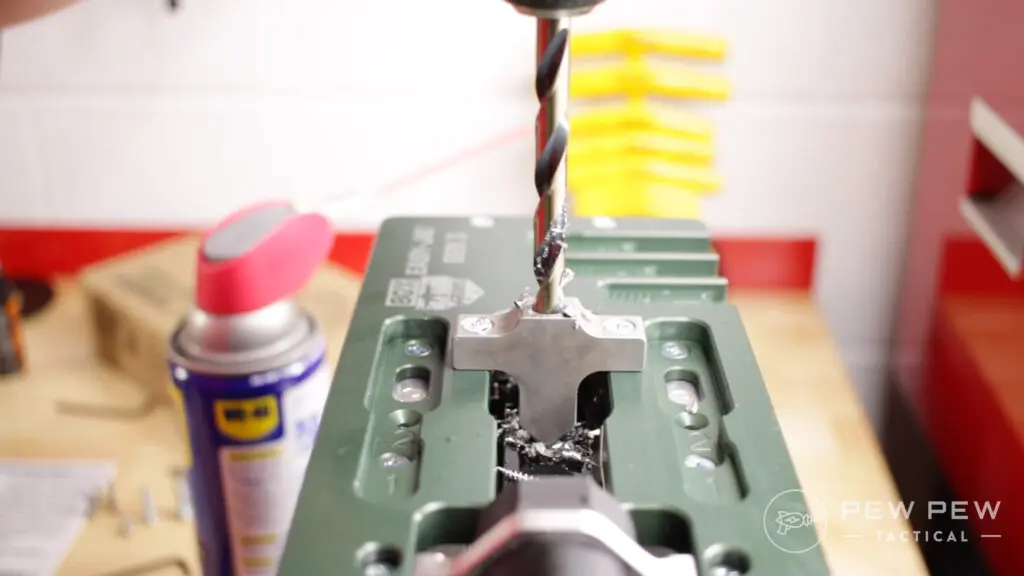

You’ll also want to pick up a jig to help you with hole placement. Fortunately, we’ve already put together a list of jigs that we recommend.

80 Percent Arms Easy Jig Gen 3 Drilling
80 Percent Arms Easy Jig Gen 3 Drilling

Anyway, back to the receiver itself. It’s CNC machined from a solid piece of aircraft-grade billet aluminum for durability and strength. You can get the receiver with Black, FDE, Bead Blasted, and Raw finishes over the aluminum to fit your build.

The lower is Glock magazine compatible and has a flared magwell for quicker, easier loading. An oversized trigger guard provides plenty of room for use with gloves.

Glock Mags
Glock Mags

The rear takedown lug pocket is already completed and the lower is designed for mil-spec compatibility. And the bolt catch hole and hole for upper receiver tension adjustment are both threaded.

These features combine to make finishing both the receiver and your overall build a little bit easier.

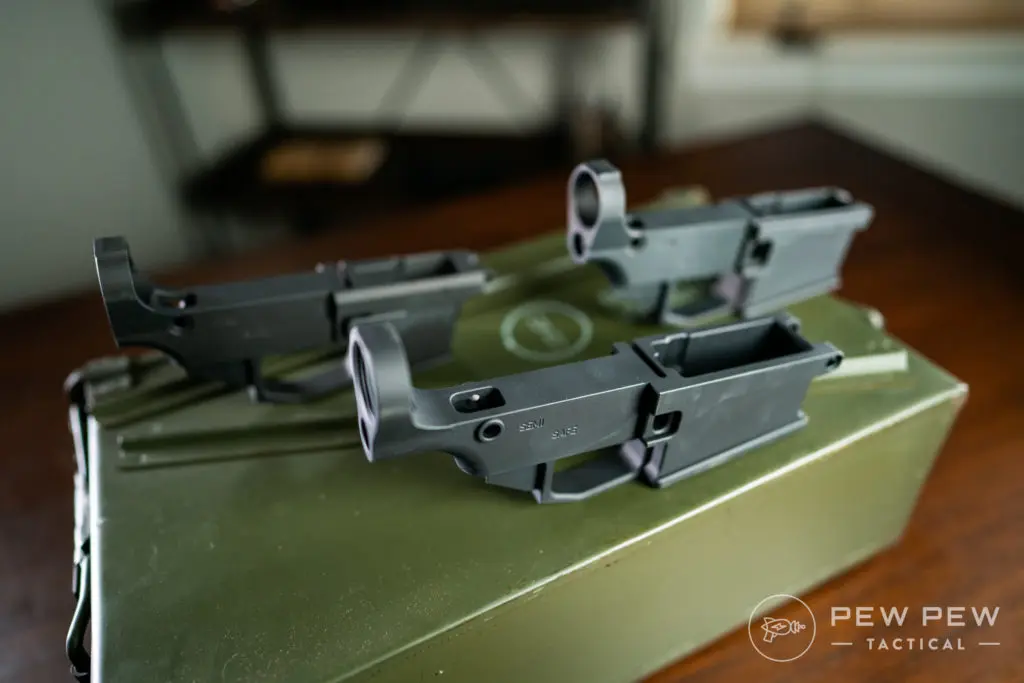

80% Arms Lowers
80% Arms Lowers

Other features worth noting include that Fire Safe/Safe markings are already engraved and that the lower is designed to work with an upper receiver that features last round bolt hold open.

Finally, the 80% Arms AR-9 80% Lower Receiver comes with a lifetime warranty.

139
at 80% Arms

Prices accurate at time of writing

Prices accurate at time of writing

9mm AR-9 80% Lower - Glock Mags
$139 at 80% Arms

Prices accurate at time of writing

Be sure to see Johnny’s thoughts on the 80% Arms set-up in the full video review below.

9. Aero Precision EPC-9 Lower Receiver

Aero Precision is well known for its high-quality AR parts and its EPC-9 platform is no exception.

This line includes all kinds of AR-9 parts, but here we’re obviously talking about the Aero Precision EPC-9 Lower Receiver specifically.

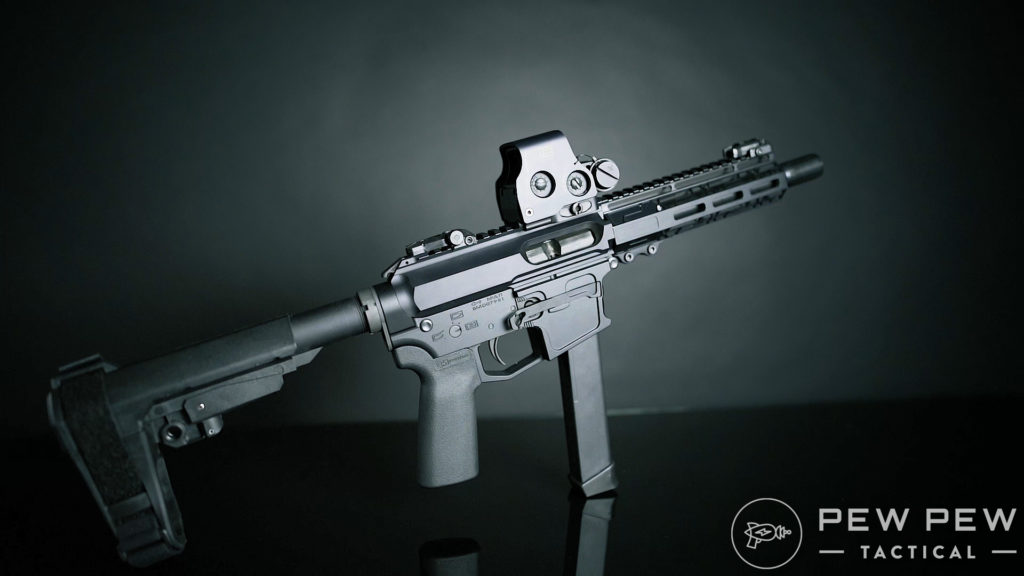

Aero EPC-9 8.3" Build
Aero EPC-9 8.3″ Build

It’s a multi-caliber lower, accepting 9mm and .40 S&W. It also takes standard frame Glock magazines via the flared magazine well.

To make installation easier, the lower uses a standard AR-15 pin lug pattern, and has a threaded bolt catch pin and threaded takedown pin detent recess.

It’s machined from 7075-T6 aluminum and has an enlarged trigger guard.

Aero Precision EPC Shooting
Aero Precision EPC Shooting

Weighing 12.8 ounces, the Aero Precision EPC-9 lower receiver is pretty lightweight.

The lower receiver comes in anodized black and FDE Cerakote finishes, so you can pick the finishes that best fit the overall vibes of your AR-9 build.

Aero Precision EPC Full Build
Aero Precision EPC Full Build

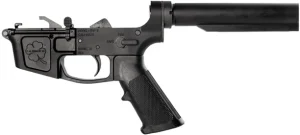

In addition to just the stripped receiver, you also have the option of a variety of complete lower configurations with different stocks and pistol grips.

314
at Aero Precision

Prices accurate at time of writing

Prices accurate at time of writing

Aero Precision EPC-9
$314 at Aero Precision

Prices accurate at time of writing

Make sure to check out John’s full review on the Aero Precision EPC-9 Build here or watch the video review below.

Conclusion

While our list by no means covers all 9mm lowers on the market, these are some of our favorites with a wide range of price points and degrees of completion.

With a little help from one of the 9mm lowers on this list, you’re just steps away from completing the PCC of your dreams.

PSA PX-9 Upper and Lower
When it all comes together, it looks good.

As for choosing parts themselves, to find an upper to go with one of the lowers here, be sure to check out the Best 9mm Uppers.

If you opt to go with a stripped upper, you’ll also want to click on over to the Best 9mm AR-15 Barrels and the Best Pistol Caliber Carbine Barrels.

You’re going to need a barrel too…

And if you went with a stripped lower, you’ll benefit from taking a look at the Best Pistol Caliber Carbine Triggers.

Now tell us more about your 9mm setup in the comments below. Also, don’t forget to take advantage of our other resources. We have visual guides for assembling lower and upper receivers, as well as a Complete AR-15 Parts List to help you make sure you’ve got everything you need.

The Best Gun Deals, Coupons and Finds

Subscribe to Pew Pew Tactical's sales and deals email.

6 Leave a Reply

  • Commenter Avatar
    Zpo

    I agree wit c George about his comments about spikes tactical ( accept for the price) I built an 8.5 inch barrel version. With all spikes part accept the trigger. The barking spider muzzle works as promised. It is Glock based. Never had any problems







    “Ll

    January 19, 2022 8:12 am
  • Commenter Avatar
    Ed Harris

    Nordic Components PCC lower with interchangeable magwell; one for Glock style magazines and one for M&P. I have the M&P since that is my carry.
    Upper is Foxtrot Mike 10" with side charger and Vortex Spitfire prism with etched reticle and Olight Baldr Mini light.

    January 18, 2022 4:00 pm
  • Commenter Avatar
    Zend

    Are there any differences in short stroking capabilities between Glock and Colt? And Which Lower has the best LRBHO function? I wonder why this whole article does not even scratch this topic even though it is only 3 month old. absolutely not helpful in my decision to find a Lower that is compatible with the new LRBHO BCG group from JP Rifles.

    May 10, 2021 7:52 am
    • Commenter Avatar
      jesse

      Normally the bolt face engages with the bolt catch. In order for a BCG to lock back with a short strock, it must have a cut underneath to engage with bolt catch. Colt magazines are positioned farther back than Glock. I have a Taccom short stroke BCG but the cut to engage the bolt catch is a few millimeters too far back. This means it will lock back on empty with a Colt magazine, but when you reinsert a new magazine, the bolt isn't far enough back to actually feed the next round without pulling the BCG back those few extra millimeters.

      September 13, 2021 8:51 am
  • Commenter Avatar
    C. George

    Im floored that Spikes Tactical did not even get a mention. As this is your list, I'm very curious why that is. I believe they have both colt & glock styles along with last round, correct? Not to mention they are cheaper than any on the list. I also feel as a brand, they are more recognizable than the six listed. What am I missing here?

    February 17, 2021 7:25 pm
  • Commenter Avatar
    John A Bird

    I have been building 9mm pcc's for several years and use barrels and buffers from Macon Armory, Macon Georgia. The barrels are guaranteed to feed and the buffers are dead blow so you can utilize a spring for a 5.56/223 eliminating the force behind a 308 spring.

    January 21, 2021 4:55 pm
Join the community! Log in
Please provide a valid email.
Field is required.
or
Register
Please provide a valid email.
Field is required.
or
Trouble logging in?
Type your email address and we’ll send you a link to reset your password.
Please provide a valid email.
Password
Type your new password and hit button below to confirm it.
Field is required.
Account already exists
We already have an account registered for email address () which is linked to your Facebook account.
To log in type your Pew Pew Meter password below.
Field is required.
Account already exists
We noticed that you have previously logged in with your Account which is linked to the same email address () - we can link both of your accounts together.
In order to link your accounts, hit button below and log in to your Account with the same email as above.

Account in Pew Pew meter means more

Check what do you get by creating an account
Lorem ipsum dolor sit amet,
Consectetur adipiscing elit, sed do
Sed do eiusmod tempor incididunt ut labore
pew pew tactical logo

new here?

Personalize your experience.
Select what level shooter you are!

pew pew tactical logo

level up your gun knowledge

Thanks! We'll send you the latest guides and training tips geared towards your level.

pew pew tactical logo

welcome!

You'll now receive newsletters of our best articles on techniques, guns & gear.

$47 value

yours free!

targets targets
free

practice targets

printer icon printable

our 9 favorite targets and drills

free

practice targets

printer icon printable

enter your email to download

We'll only use the information provided according to our privacy policy.

success icon

Ready to Download

Click below to begin your download

download pdf
