Best AR-15 Upgrades [2018]: Handguards, Triggers, Barrels, BCGs

Want your AR-15 to be the best it can be?

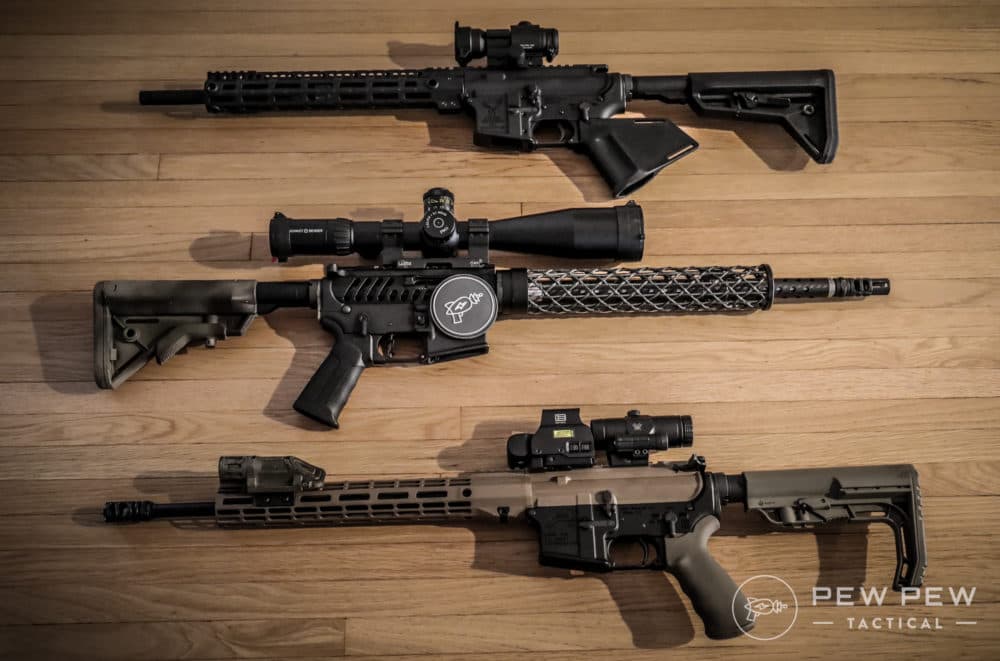

Pew Pew Upgraded AR-15s
Pew Pew Upgraded AR-15s

We’ve built dozens of AR’s and we’ll cover all the best AR-15 upgrades such as handguards, triggers, BCGs, gas blocks, and more.

Table of Contents

Loading...

Why Upgrade the AR-15?

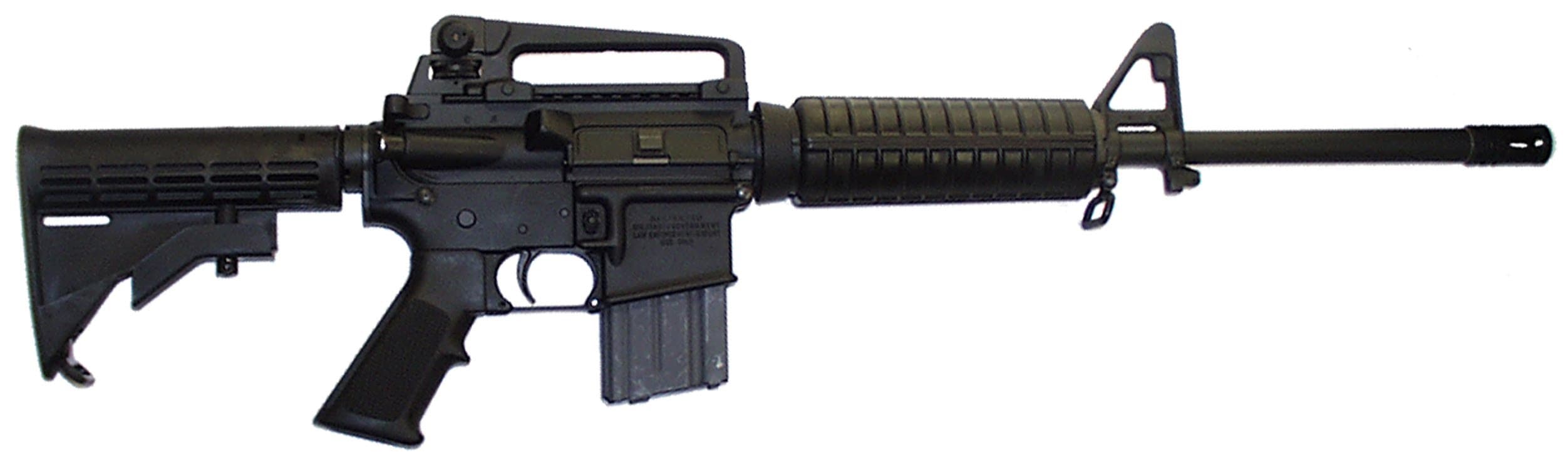

Typical AR-15
Typical AR-15

After you get some time with a more basic AR, you’ll likely start to realize could be improved to meet your specific purpose.  And the AR-15 modular system makes upgrading a breeze for most components.

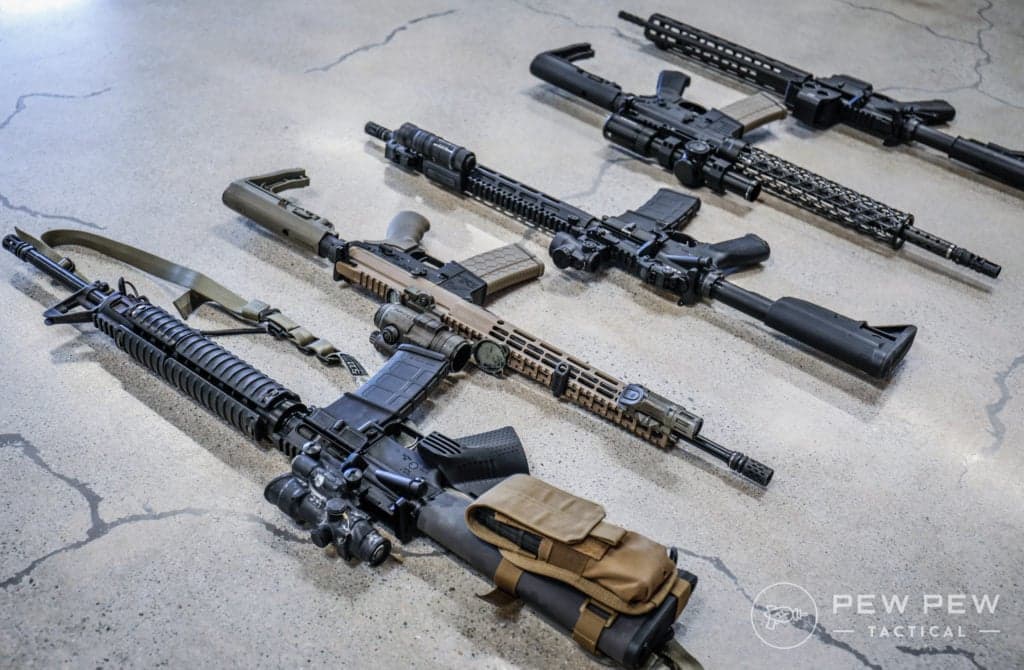

Modded AR-15s
More Modded AR-15s

We’ll start off first with possible upgrades to the upper receiver group followed by the lower receiver group and furniture.  We’ll also provide examples of what we think are the best in class for each type of upgrade.

Don’t have an AR yet?  Check out our Buyer’s Guide to the AR-15 first.

Let’s get started!

Best AR-15 Barrel Upgrades

If you haven’t read the Barrels section in our AR-15 guide, please do that first.  Now that you’re caught up, you might consider a barrel upgrade if you’ve worn out your barrel or if your current profile/length isn’t up to par for your purpose.

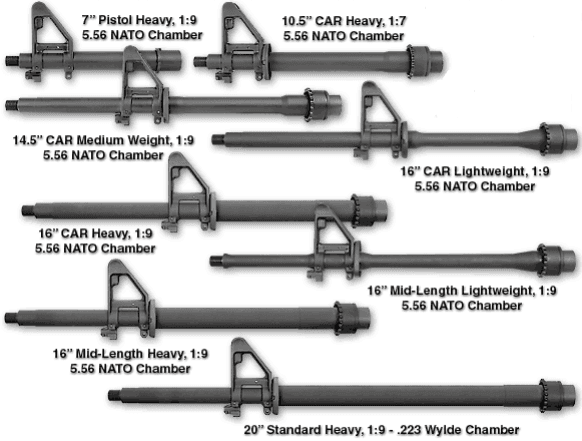

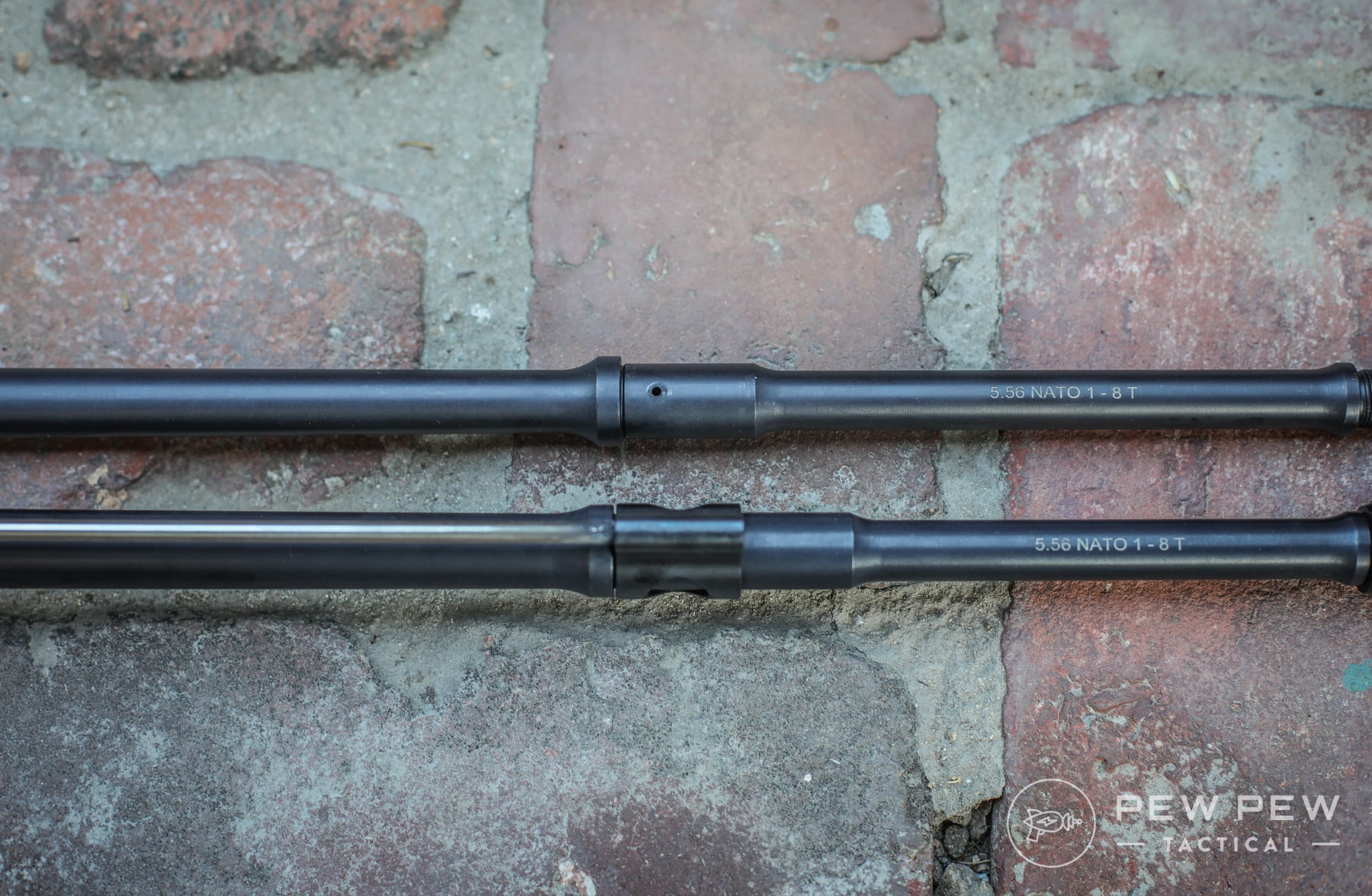

AR-15 Barrel Contours
AR-15 Barrel Contours

For more accuracy-related tasks, you might consider a heavier contour which makes the barrel stiffer and more resistant to accuracy drop-offs due to heat and barrel whip.

If you’re wanting to reach out farther, you might consider a longer 18″ or 20″ barrel for that extra boost in velocity.  Stainless steel barrels are also known for being more accurate but at the expense of a shorter life (and more expense).

Or if you’re looking to cut back on weight and looking at sub-300 yard distances, you could go for a lightweight profile and drop to the standard 16″ or even 14.5″ with a pinned muzzle device.

And for critical use rifles, we would suggest both MP/HP tested barrels for that extra margin of safety.

For those looking for a softer shooting AR-15, you could look for a longer gas length, such as moving up to mid-length from a carbine.  The extra length gives more space/time for gas pressures to lower before cycling back.

Still with me?

Recommended AR-15 Barrels & Manufacturers

We cover all of our favorite manufacturers and specific barrels in Best AR-15 Barrels…but here’s the gist:

  • Faxon Firearms: My go-to barrel manufacturer with accurate, affordable, and specific Gunner profile.  Made in-house with their aerospace manufacturing background.  Great across the board for 16″, precision, short, and other calibers.
Goldilocks Barrel
Faxon 16" Gunner, 5.56 NATO, Mid-Length

Faxon 16" Gunner, 5.56 NATO, Mid-Length

Best Short Barrel
Faxon 11.5" Gunner, 5.56, Mid-Length

Faxon 11.5" Gunner, 5.56, Mid-Length

  • Ballistic Advantage: Another in-house manufacturer that has a proprietary Hanson profile that reduces barrel whip.  Currently in my competition rifle.  Also great for other calibers.
All-Around Barrel
Ballistic Advantage 16" Hanson, .223 Wylde, Mid-Length

Ballistic Advantage 16" Hanson, .223 Wylde, Mid-Length

Ballistic Advantage 18" Fluted, .223 Wylde, Rifle-Length

Ballistic Advantage 18" Fluted, .223 Wylde, Rifle-Length

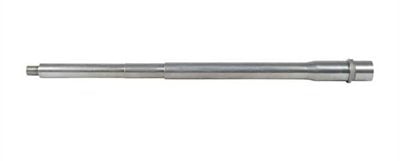

White Oak .223 Wylde Barrels

White Oak .223 Wylde Barrels

Prices accurate at time of writing

  • Daniel Defense: Cold-hammer forged for extreme durability

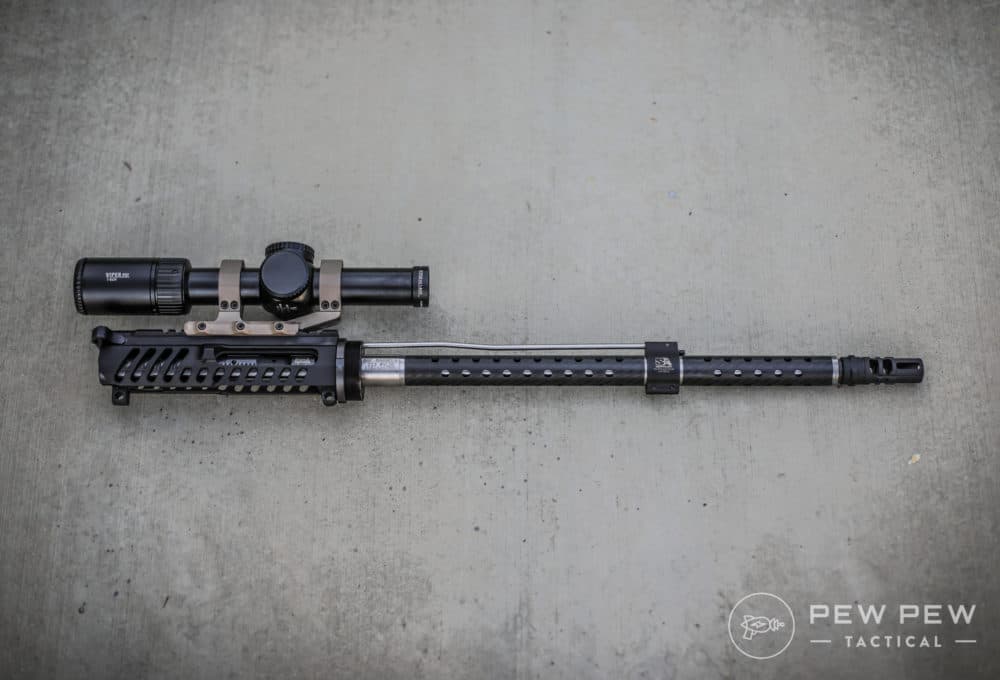

  • BSF: Anyone say…carbon fiber?
Best Bang for Buck Carbon Fiber

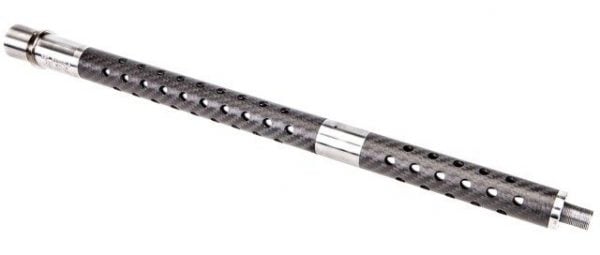

BSF Barrels .223 Wylde Carbon Fiber 1/8 Twist

BSF Barrels .223 Wylde Carbon Fiber 1/8 Twist

Best AR-15 Gas Blocks

Low Profile Adjustable Gas Block
Low Profile Adjustable Gas Block

Having a low profile gas block allows you to put on a free-floating handguard which unlocks better accuracy and more rail space for your grip and accessories.  Some gas blocks will also be adjustable so you can tune your rifle to your specific ammo to create a softer shooting AR.

Be sure to match up the diameter of the gas block to your barrel profile.  Light profile is .625″, normal is .750″, and heavy profile is .936″.  Also make sure to have the appropriate length gas tube if you are not reusing your old one.

If you have a front sight base barrel, it is extremely difficult to remove and can result in a bent barrel if done improperly.  We recommend taking it to a gunsmith or just shaving it down yourself to have a makeshift low profile gas block.

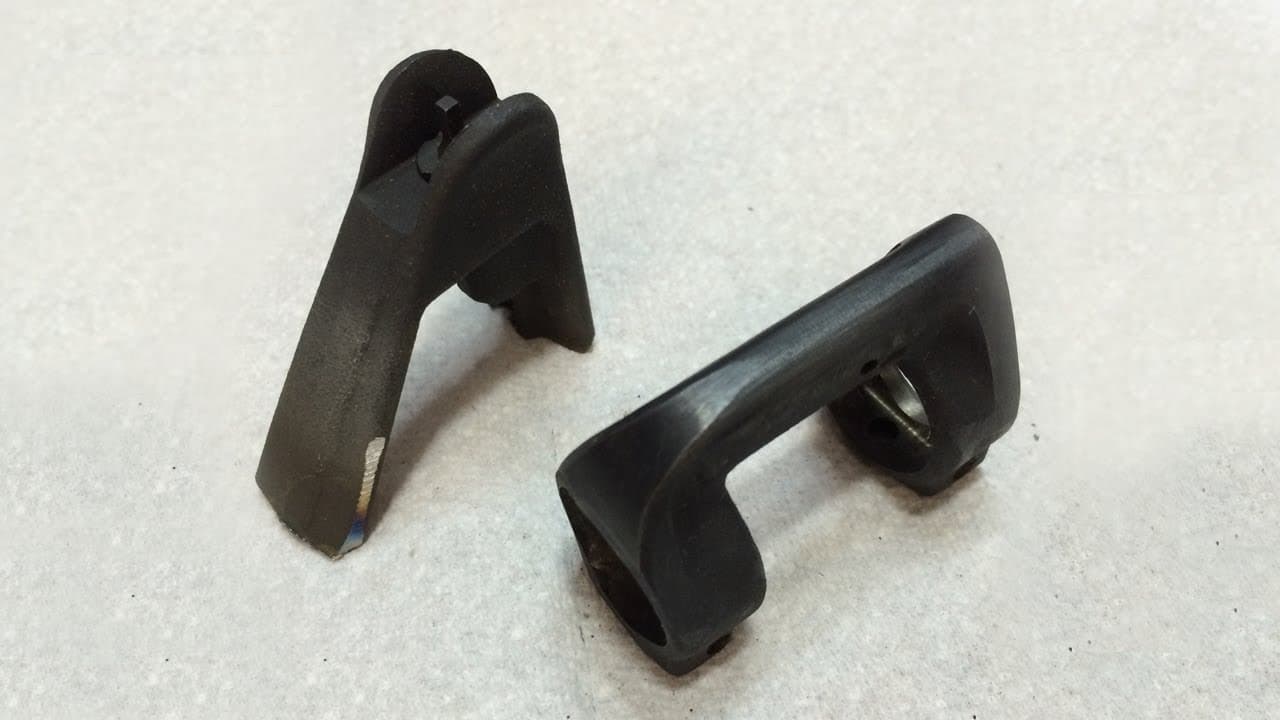

Shaved AR-15 Front Sight Base
Shaved AR-15 Front Sight Base

Recommended AR-15 Low Profile Gas Block

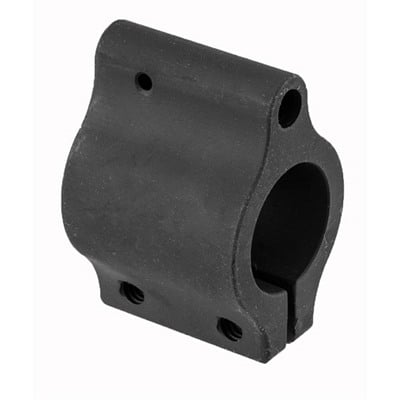

DD Low Profile Gas Block

DD Low Profile Gas Block

Prices accurate at time of writing

JP Enterprises Adjustable Gas Blocks

JP Enterprises Adjustable Gas Blocks

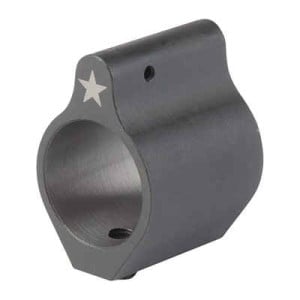

BCM Low Profile Gas Block

BCM Low Profile Gas Block

Prices accurate at time of writing

Seekins

Seekins' Adjustable Gas Block

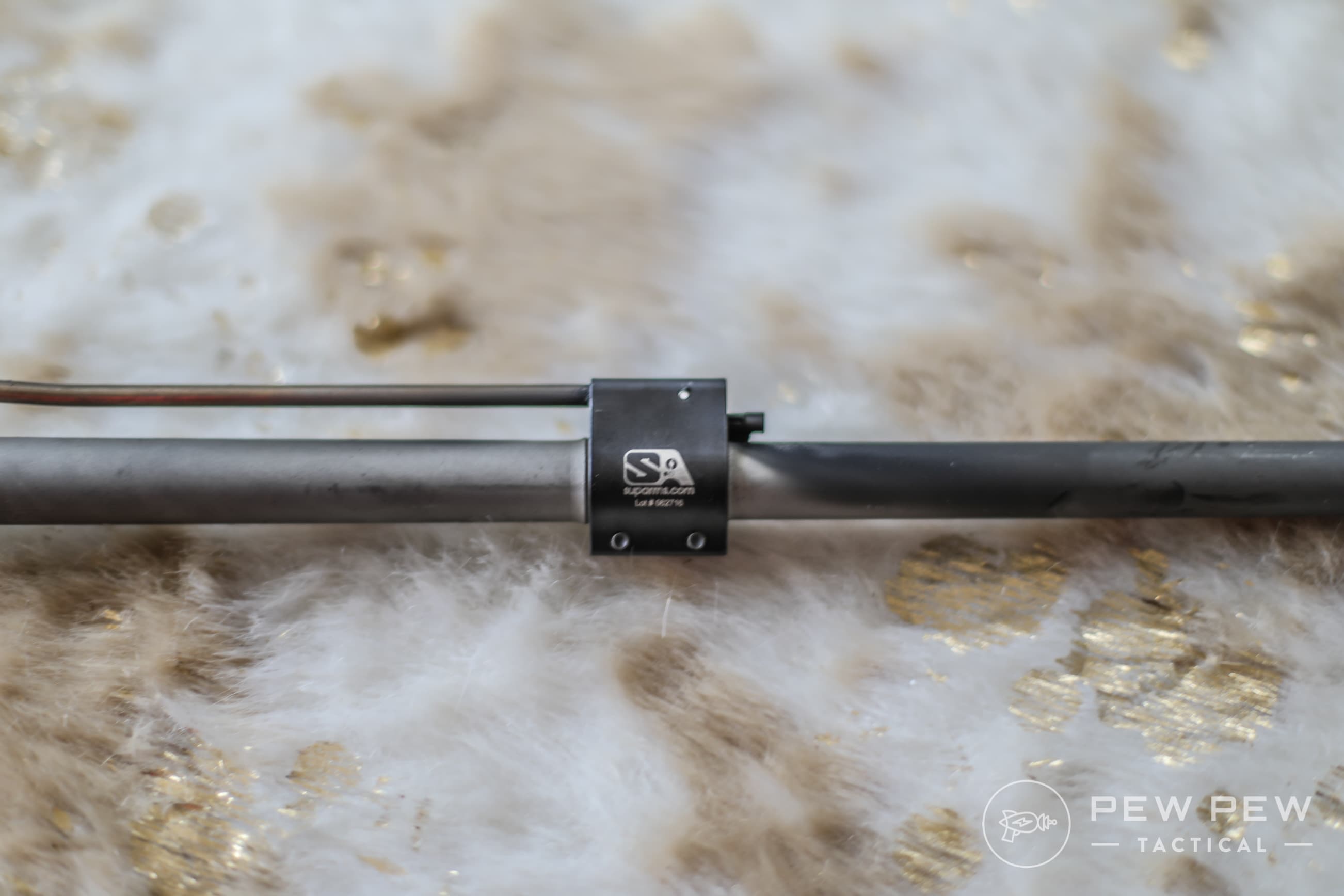

  • Superlative Arms Adjustable Gas Block: My new favorite because you can easily adjust without taking off your handguard plus it bleeds the excess gas forward instead of all over the place like other adjustable blocks.  Full review here.
Best Adjustable Gas Block
Superlative Arms Adjustable Gas Block

Superlative Arms Adjustable Gas Block

Recommended AR-15 Drop-In Handguards

We’ll focus on two types of handguards, drop-in, and free float.  We cover this in much more depth in our Best AR-15 Handguards section.  But here are our top selections.

Drop-in handguards are when you have a delta ring on the receiver and a fixed front sight base.

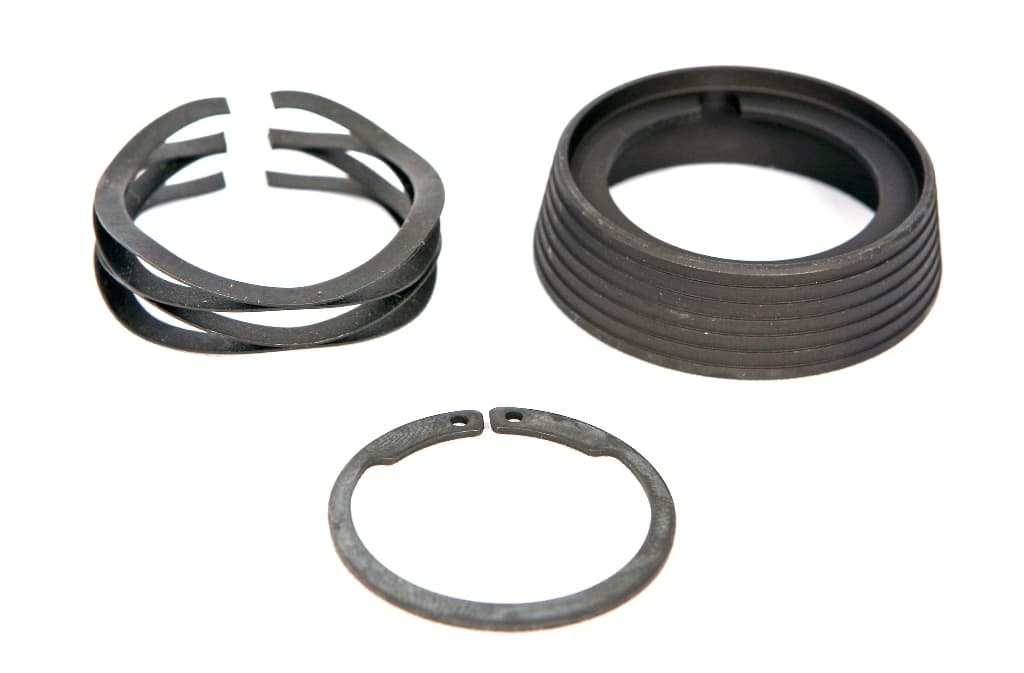

Delta Ring
Delta Ring

You’re limited in the established length from the receiver to the FSB.  Drop-in handguards are also in two pieces so they can fit without removing the barrel, delta ring, or FSB.

AR-15 A2 Handguard
AR-15 A2 Handguard

You also have to make sure you get the proper length for your gas system.

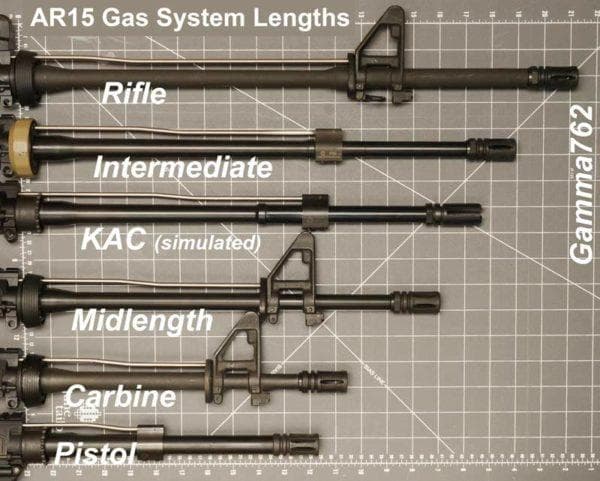

AR 15 gas systems
Some AR-15 handguards need to correspond with the right length in order to fit.

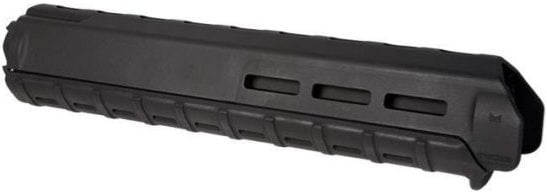

Magpul MOE Handguards

Most Affordable Drop-In Handguard
Magpul MOE Handguards

Magpul MOE Handguards

Prices accurate at time of writing

  • Price: $33
  • Length: 9.2″ (Mid-Length)
  • Total Weight: 8.7 oz

Probably the most ubiquitous drop-in handguard due to their weight, affordability, and looks.  Comes in several colors and all the normal gas lengths: carbine, mid-length, & rifle.

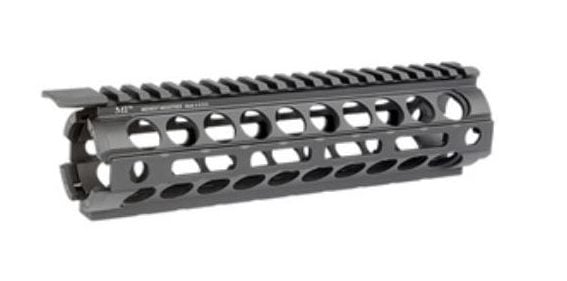

Midwest Industries Two-Piece Drop-In Handguards

Midwest Industries Two-Piece Drop-In Handguard

Midwest Industries Two-Piece Drop-In Handguard

  • Price: $130
  • Length: 9″ (Mid-Length)
  • Total Weight: 6.6 oz

Aluminum rail options for the different gas lengths.  Pricier but from a reputable company.  We run multiple versions of their free-float handguards.

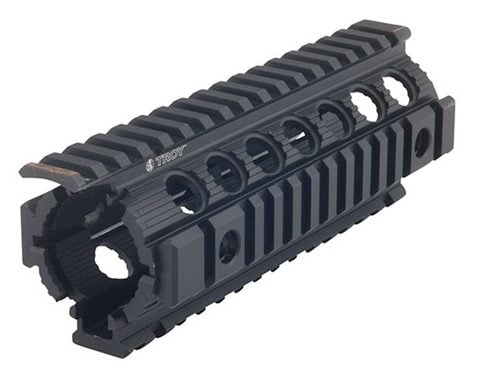

Troy Industries Drop-In Quad Rail

Troy Industries Drop-In Quad Rail

Troy Industries Drop-In Quad Rail

If you’re looking for a quad-rail system, here it is.  Comes in a variety of gas system lengths.

  • Price: $160
  • Length: 9″ (Mid-Length)
  • Total Weight: — oz

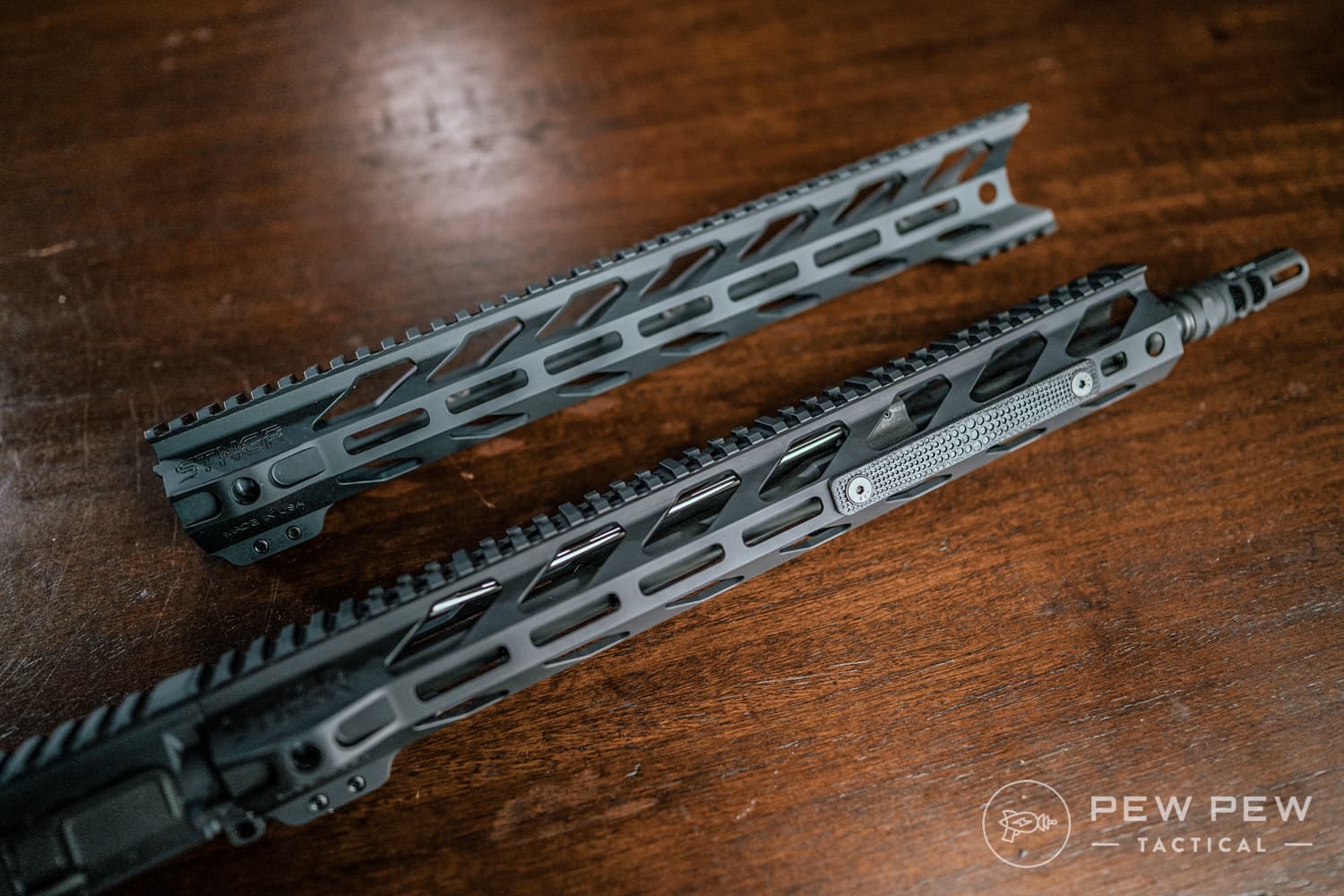

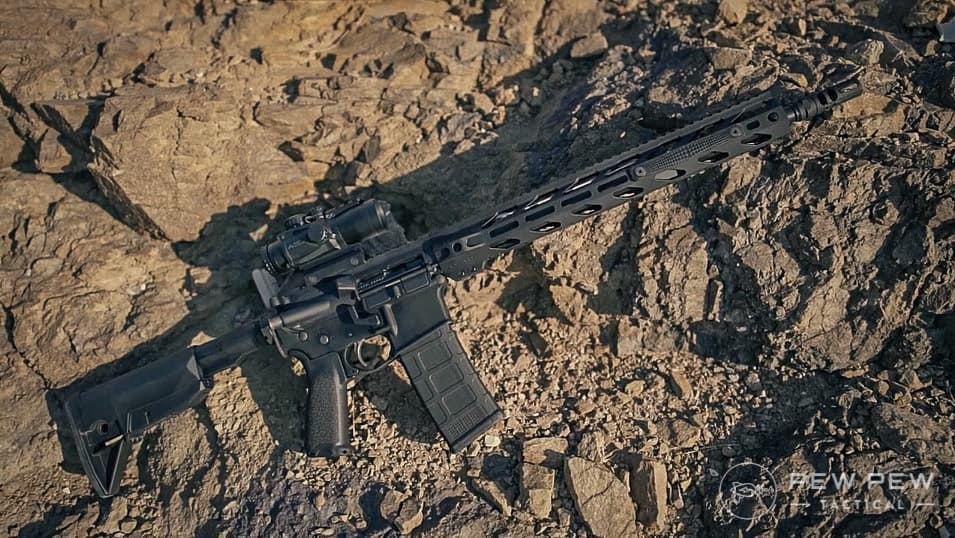

Best AR-15 Free-Floating Handguards

Free-floating handguards connect only to the receiver and do not touch the barrel.  This increases accuracy since there’s nothing interfering with the barrel such as the stock, grip, or accessories.

You can also choose the length of your handguard to be much longer to accommodate an extended grip and hang extra accessories.  Just be sure to measure your barrel + muzzle device so you order the right length handguard.

My personal recommendation is for a 12″ or 13″ handguard which will give you enough space for almost any arm position.  Plus, I prefer M-LOK over KeyMod.  Looks like US Special Operations Command (USSOCOM) agrees too.

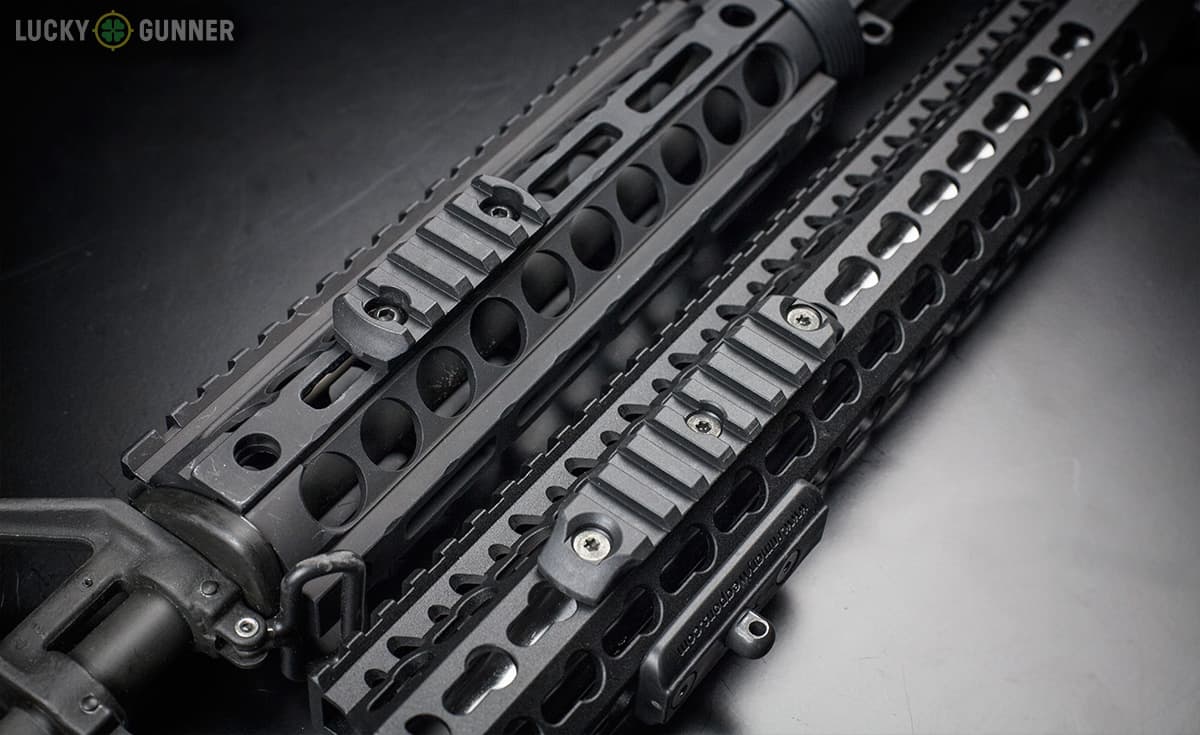

M-LOK vs KeyMod, LuckyGunner
M-LOK (L) vs KeyMod (R), LuckyGunner

The trend is moving towards just Picatinny rails on the top instead of quad-rails (all around) to reduce weight.  And then just adding on rails where needed for flashlights, grips, etc.

C Clamp Grip
Free Floating Handguard

Again, here’s a few of our top choices.  For more see our Best AR-15 Handguards article.

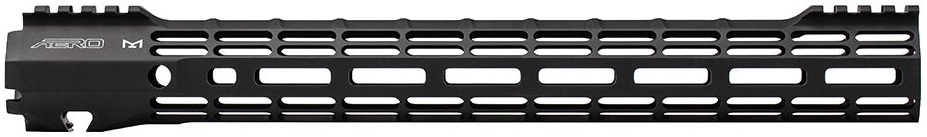

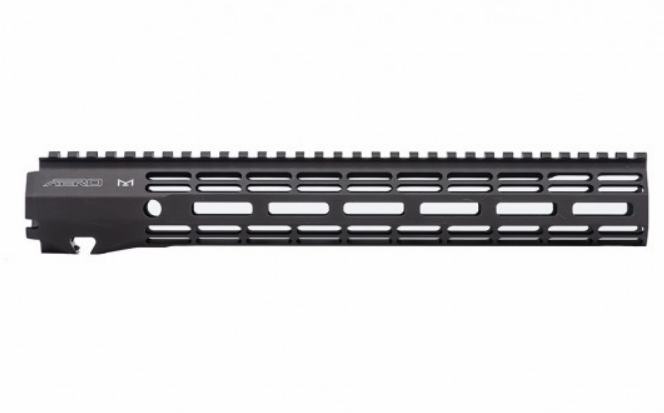

Aero Precision ATLAS

Best Bang-for-the-Buck Handguard
Aero Precision ATLAS M-LOK Handguard

Aero Precision ATLAS M-LOK Handguard

Prices accurate at time of writing

  • Price: $140
  • Length: 12″
  • Handguard Weight: 7.0 oz
  • Barrel Nut Weight: 4.7 oz
  • Total Weight: 11.7 oz

My current favorite due to the weight savings from the removal of the top Picatinny rails.  Plus the front taper perfectly fits my thumbs.

Here it is on the new Aero upper I’m currently testing (full review).

Aero Precision M4E1 with ATLAS Handguards
Aero Precision M4E1 with ATLAS Handguards

Midwest Industries M3 GL

Best Lightweight Handguard
Midwest Industries G3 ML

Midwest Industries G3 ML

  • Price: $190
  • Length: 12.625″
  • Total Weight: 8.8 oz

My favorite handguard that is featured in Best Lightweight Handguards.  Comes with 8 sides of M-LOK attachment capability.

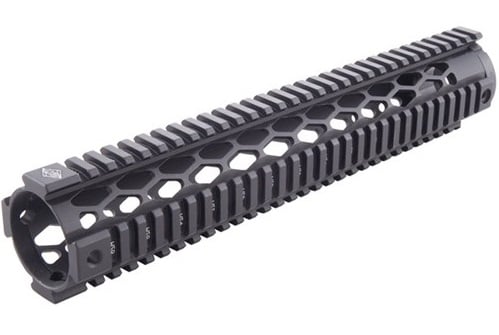

Yankee Hill Machine Quad Rail

Best Free-Float Quad Rail
Yankee Hill Machine Quad Rail

Yankee Hill Machine Quad Rail

  • Price: $160
  • Length: 12.6″
  • Total Weight: 15.2 oz

If you’re still looking for a quad rail…YHM has got you covered.  A little heavier but you get tons of real estate to put anything your heart desires.

Midwest Industries G3M

Midwest Industries G3M

Midwest Industries G3M

Prices accurate at time of writing

The full rail version of my favorite Midwest handguard.  One-piece design that comes with a super slim 1.5″ outside diameter and detachable rails.  What we run in two of our primary guns (two left-most complete uppers).

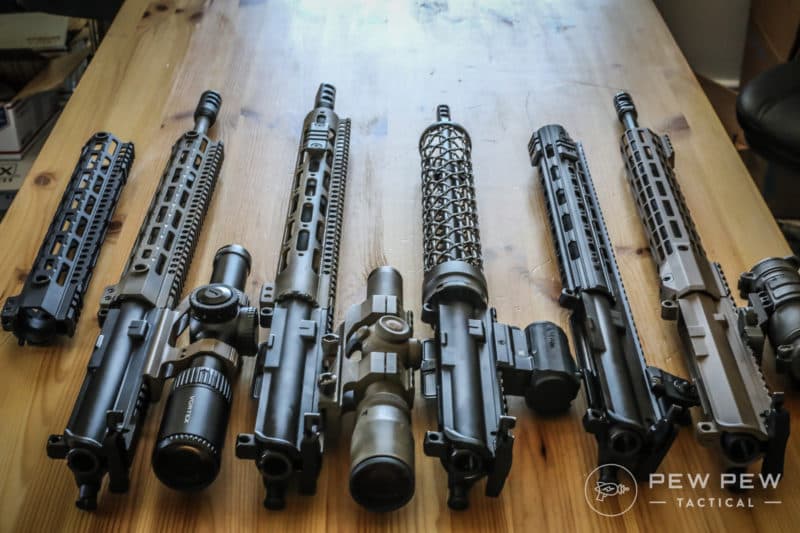

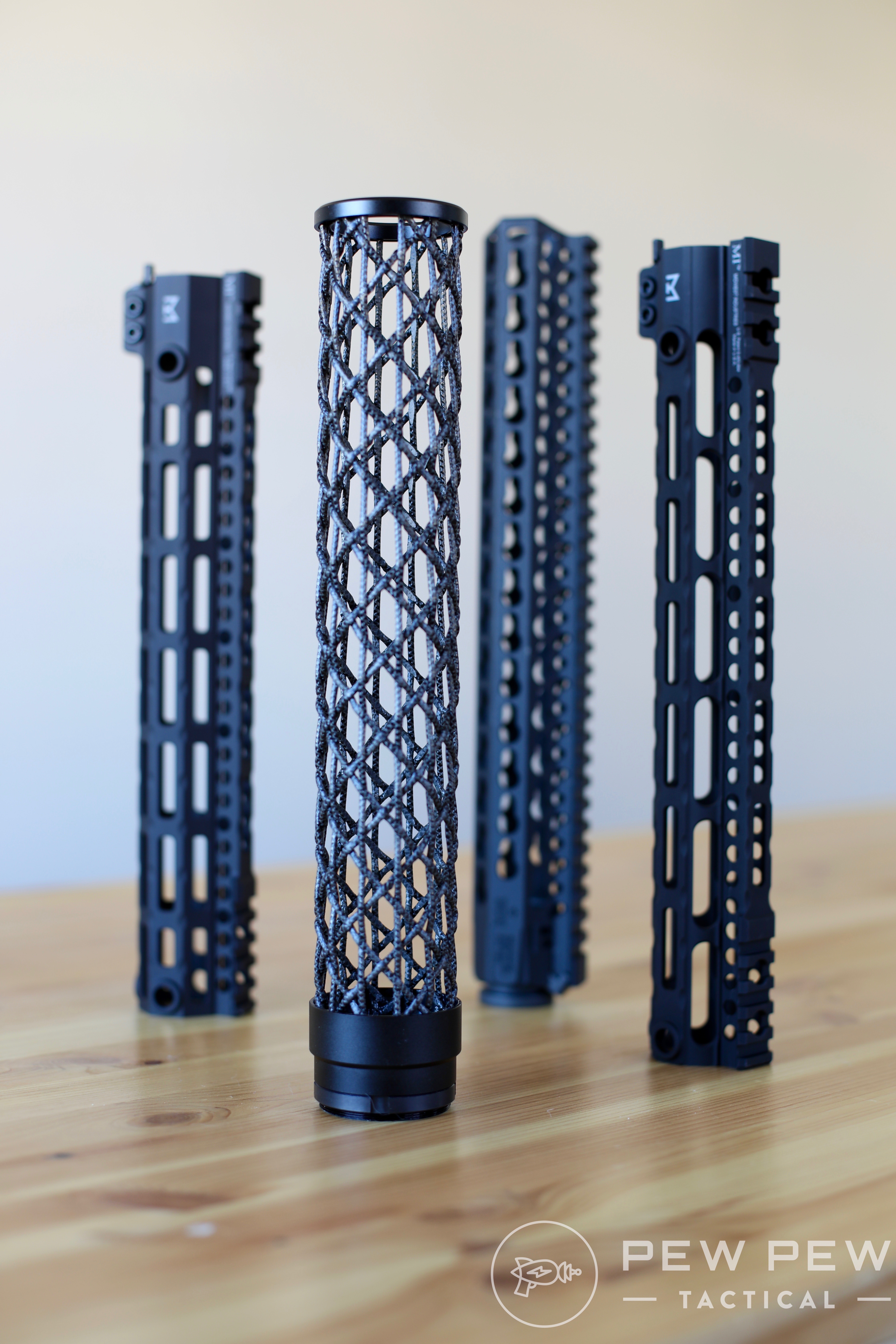

Best AR-15 Handguards
Best AR-15 Handguards

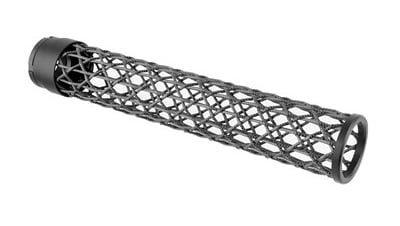

Brigand Arms Carbon Fiber

Lightest Handguard
Brigand Arms Carbon Fiber Handguard

Brigand Arms Carbon Fiber Handguard

  • Price: $296
  • Length: 12.4″
  • Handguard Weight: 2.9 oz
  • Barrel Nut Weight: 1.4 oz
  • Total Weight: 4.3 oz

Literally, the lightest I’ve ever felt…and still plenty strong.  But you gotta pay to play.  Winner of the Lightest Handguard roundup.

Lightweight Build Brigand Arms and Faxon Pencil 14.5 Pinned
Lightweight Build Brigand Arms and Faxon Pencil 14.5 Pinned

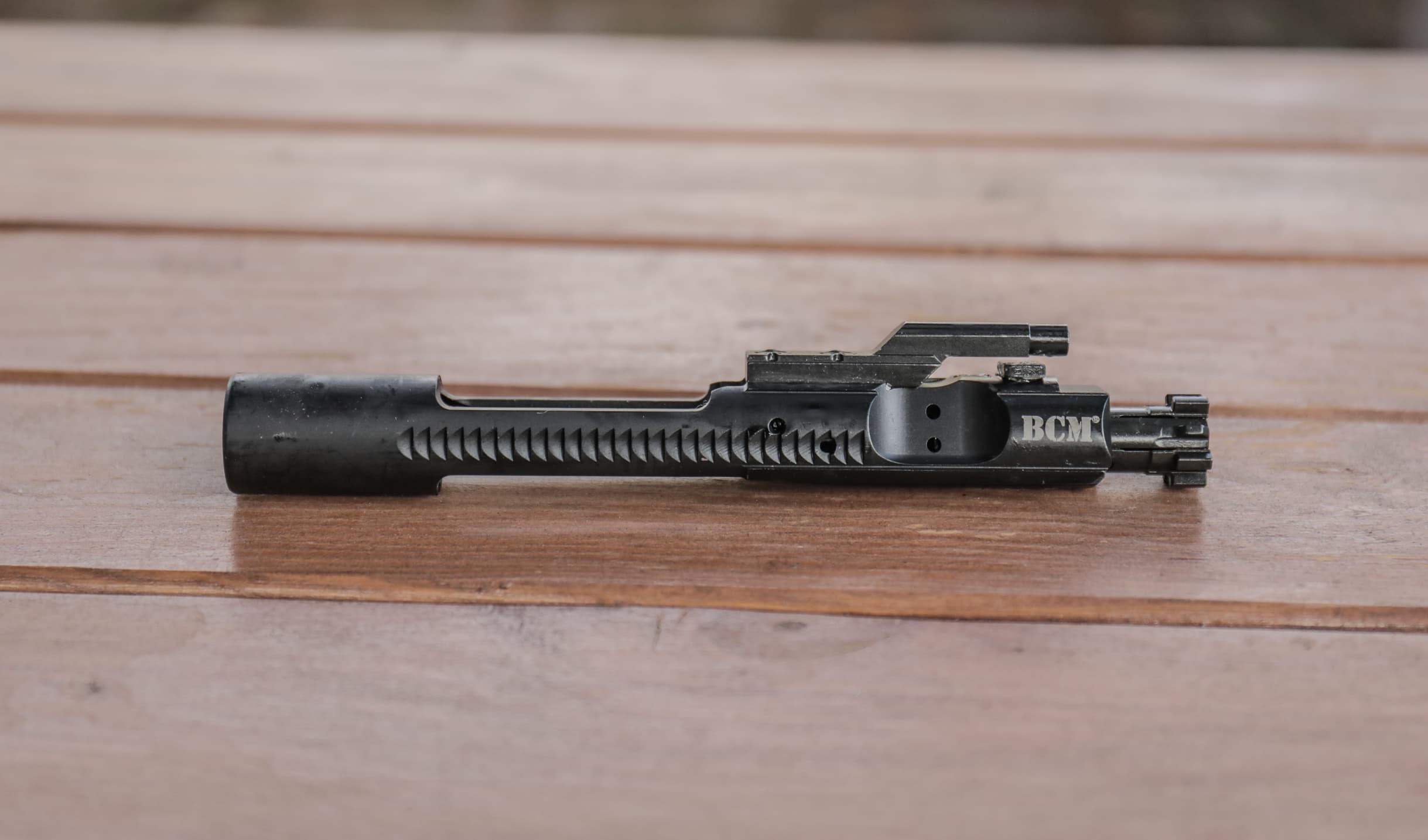

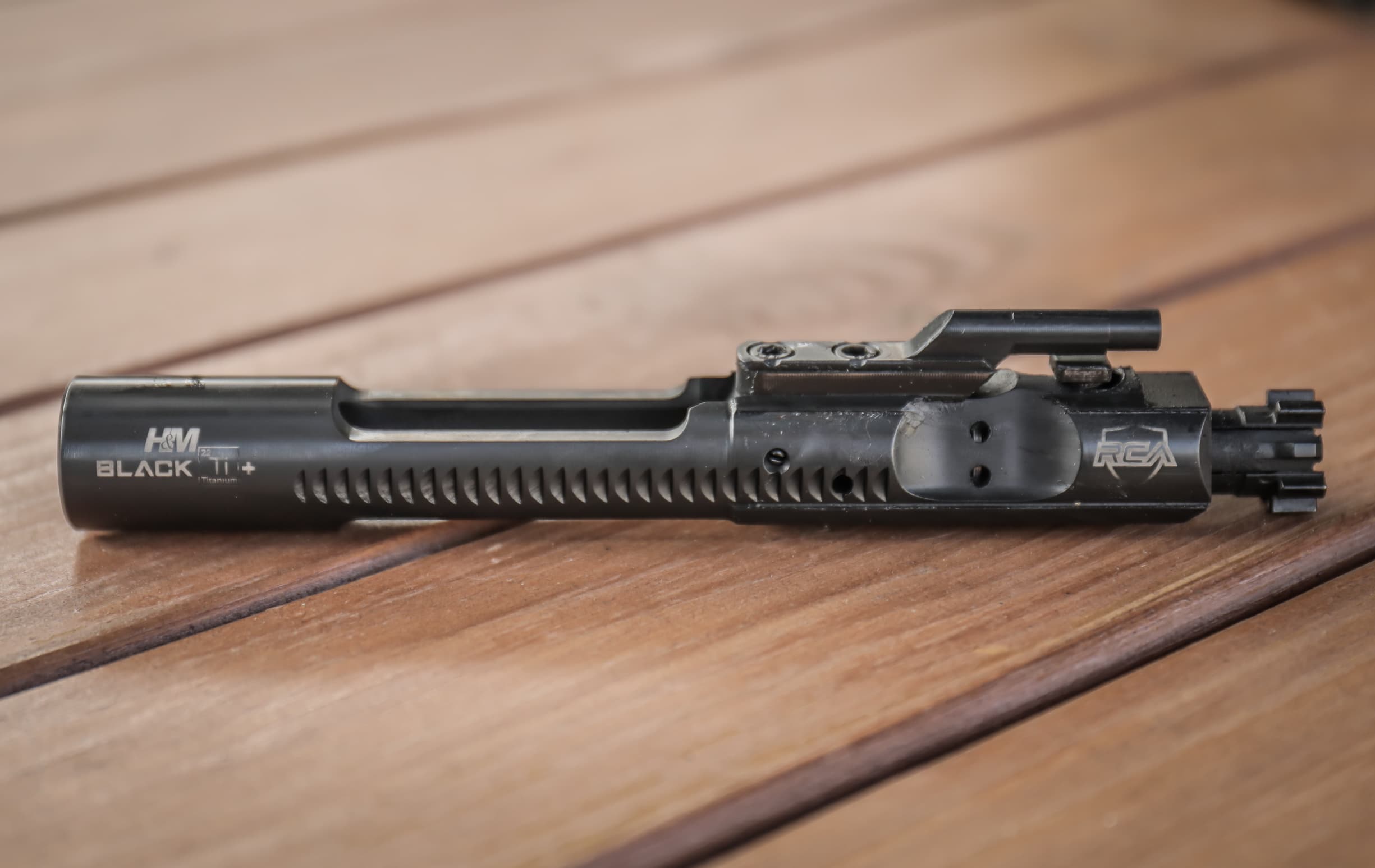

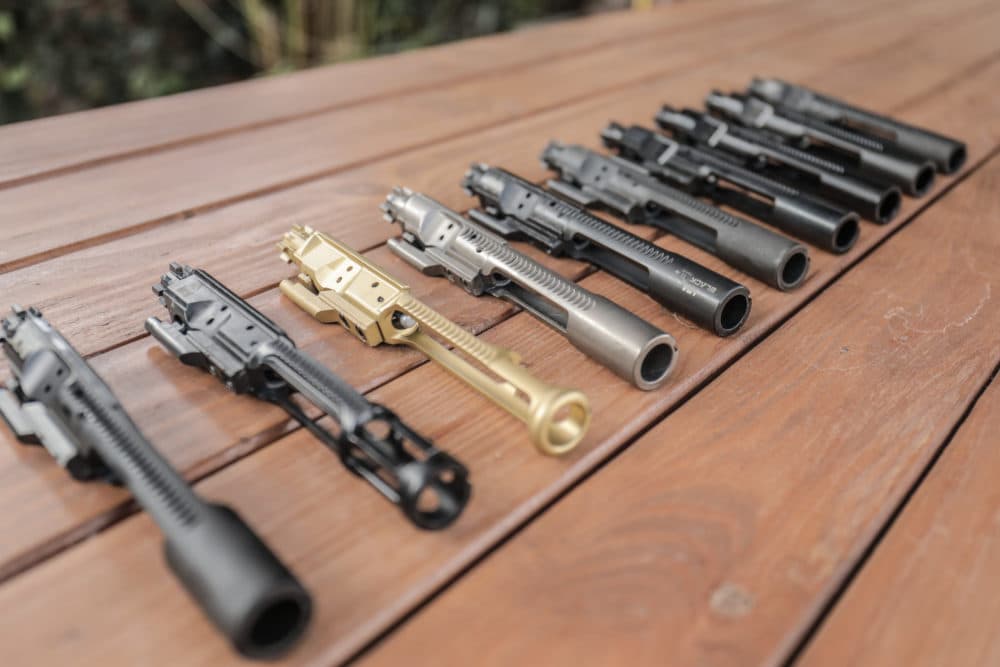

Best AR-15 Bolt Carrier Groups (BCG)

Whatever BCG came with your rifle and has run fine, will likely continue to run fine.  But if you’re dead set on fixing something that isn’t broken, or if you’re building a new rifle, you can take a look at new coatings for BCGs.  It may also help if you’re running full-auto or suppressed where the BCG tends to get hotter/dirtier.

The primary new coating of the week is Nickel Boron (NiB) which promises self-lubricity, easier cleaning, higher corrosion resistance, and a different look.  We run one in our race gun and do attest at least to the easier cleaning properties.

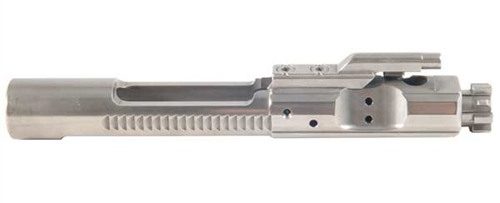

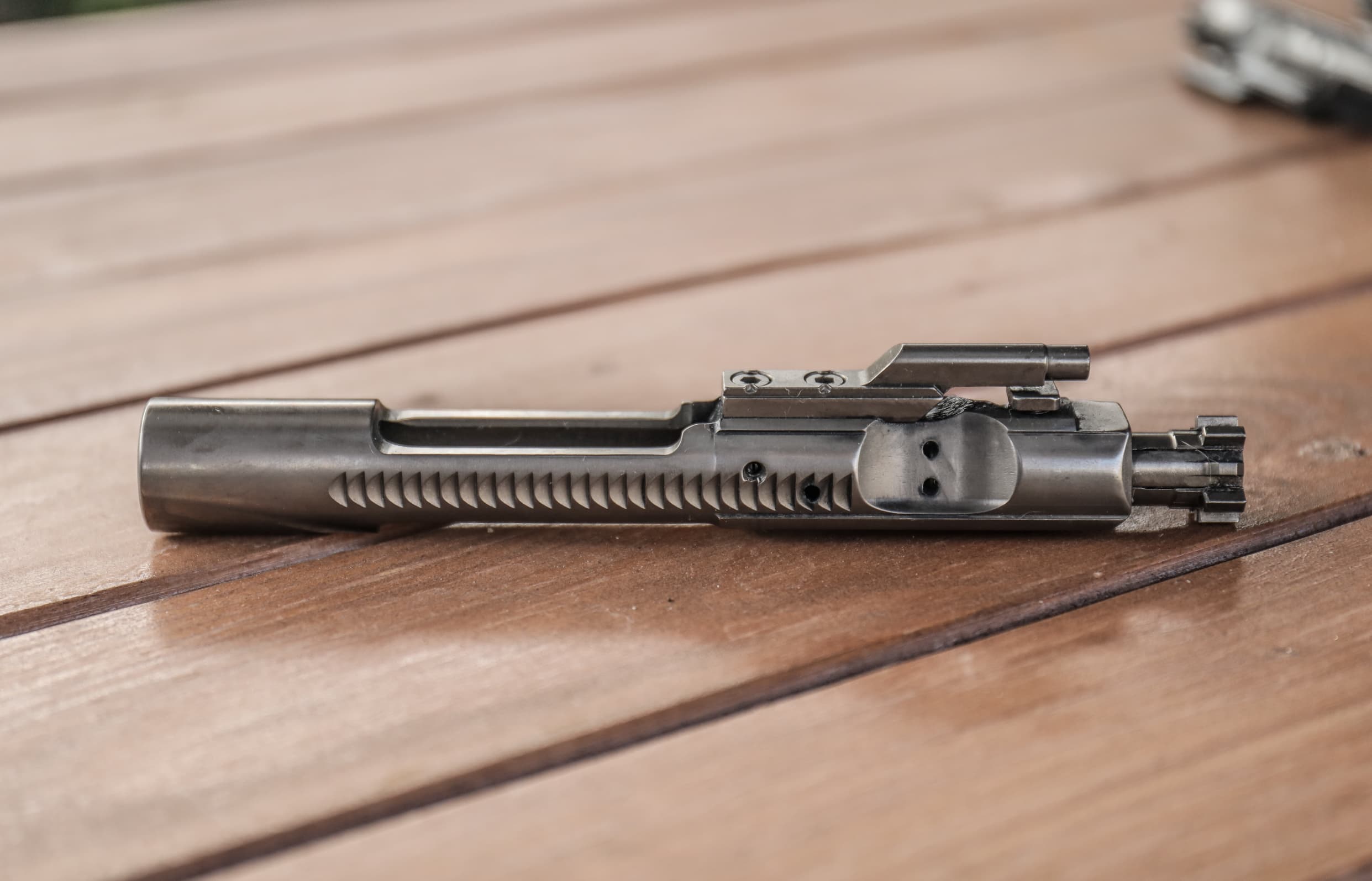

  • WMD NiB BCG:  We run the WMD in our race rifle that has worked great.  We still run the BCG with lube, but we can definitely tell that it cleans easier.
Best Nickel Boron
WMD Nickel Boron BCG

WMD Nickel Boron BCG

Prices accurate at time of writing

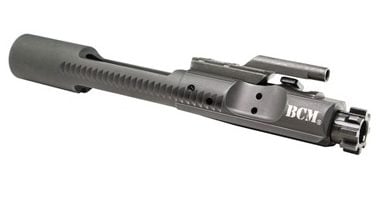

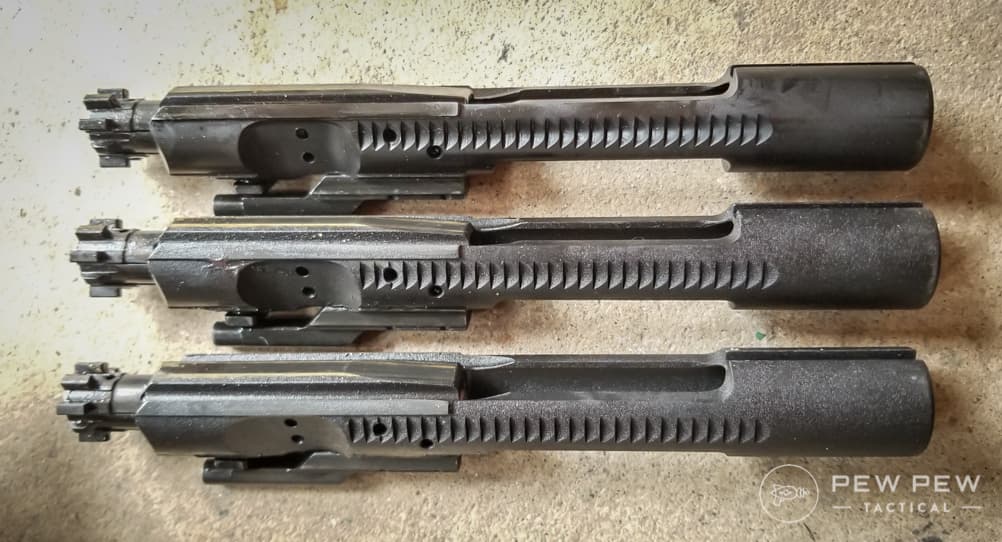

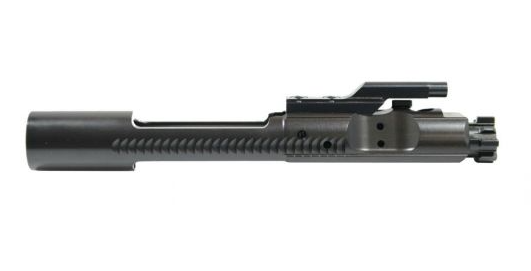

And if you’re just looking for some regular BCG’s that will run.  You can try out the Brownells ($140), Spike’s ($140), or Daniel Defense ($180) ones.  And if those don’t suit your liking, here’s all of them.  For more budget oriented shooters, you can try Anderson’s ($115).

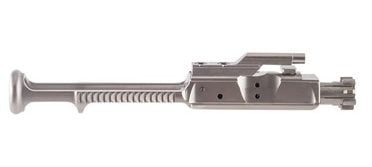

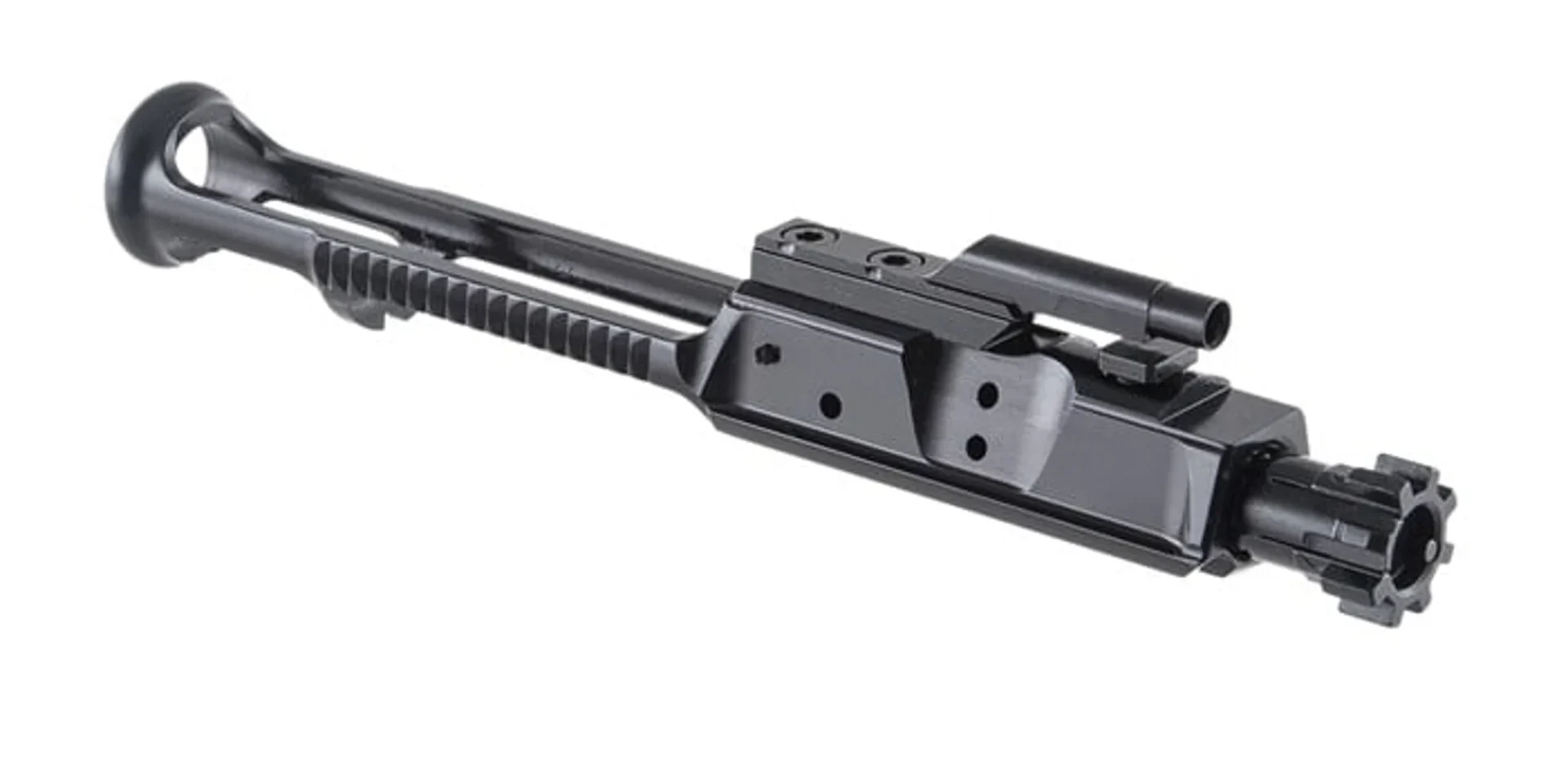

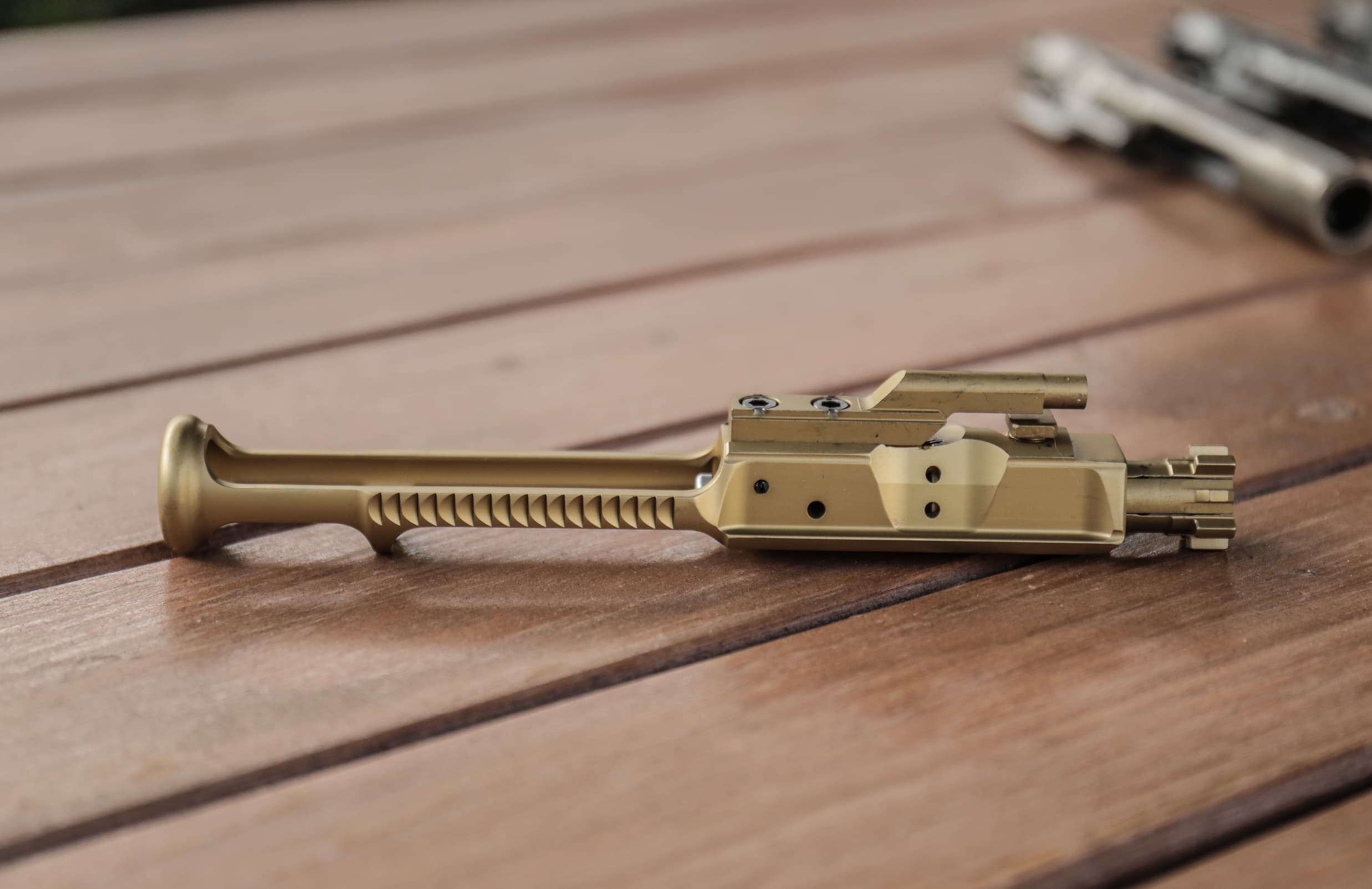

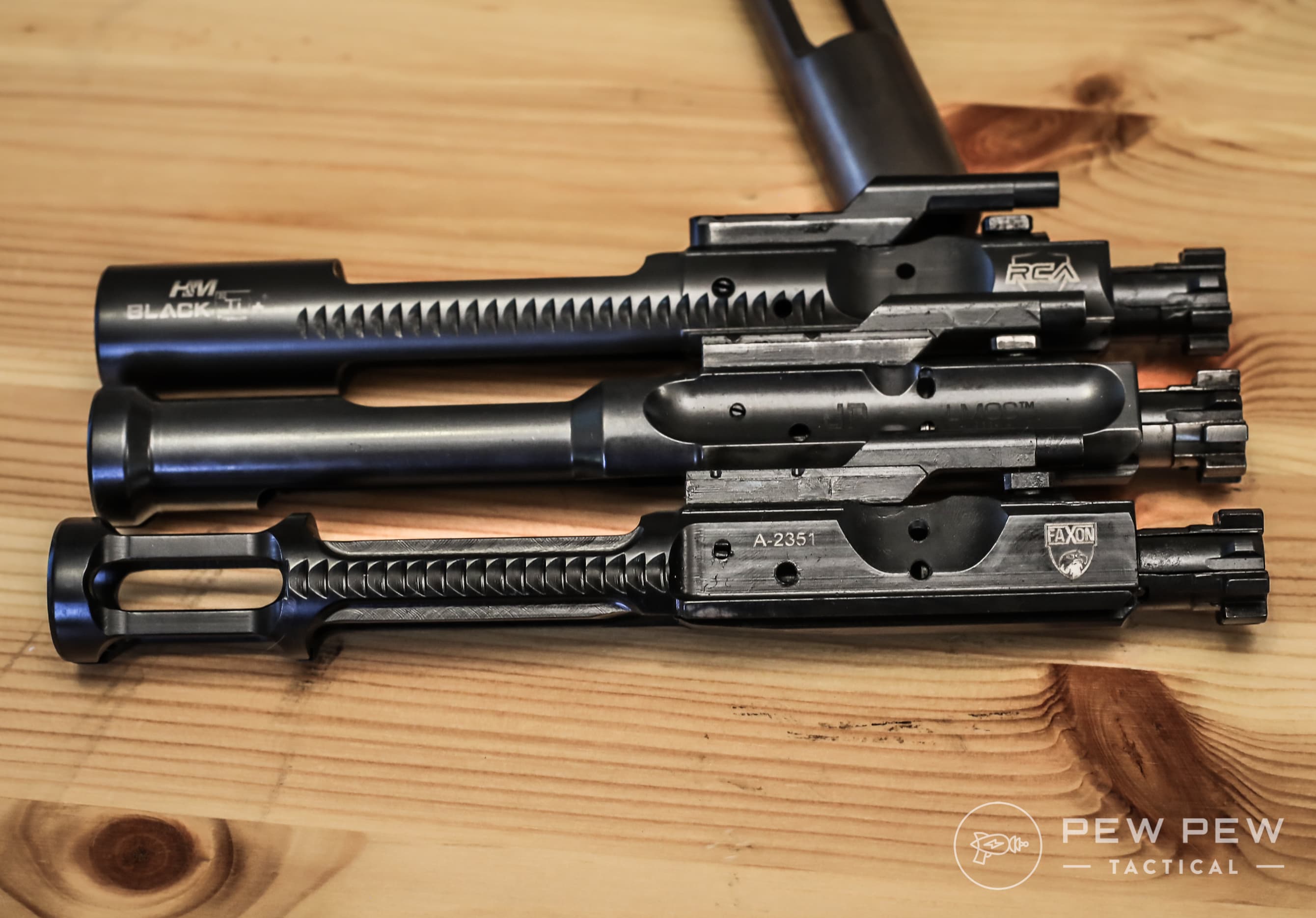

And for the competition shooter…here’s our roundup of the Best Lightweight BCG’s that will allow you to minimize overall rifle movement and get back on sights faster.

Lightweight BCG's
Lightweight BCG’s

Or simply…check out our Best Bolt Carrier Groups roundup.

Best AR-15 Charging Handles

One of those upgrades that you were fine without…but now that you’ve experienced it…you wonder how you could have ever done without.

Every one of my serious rifles has an upgraded charging handle for easier and more robust bolt manipulation.

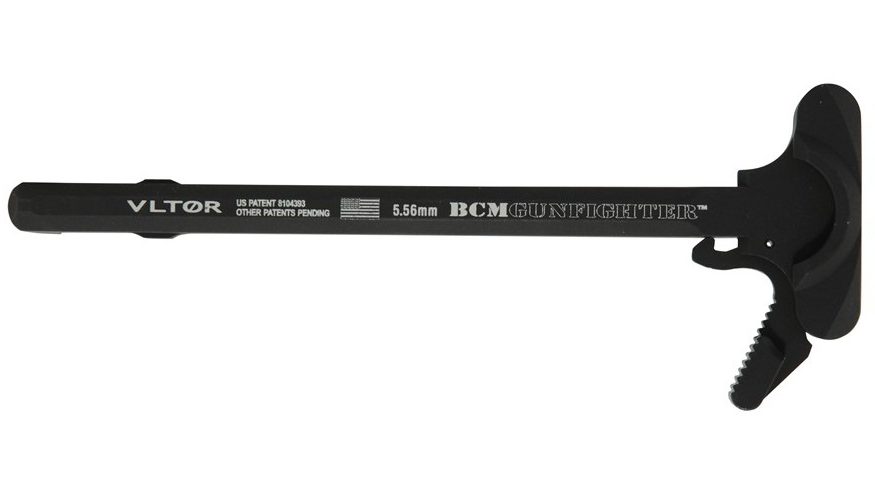

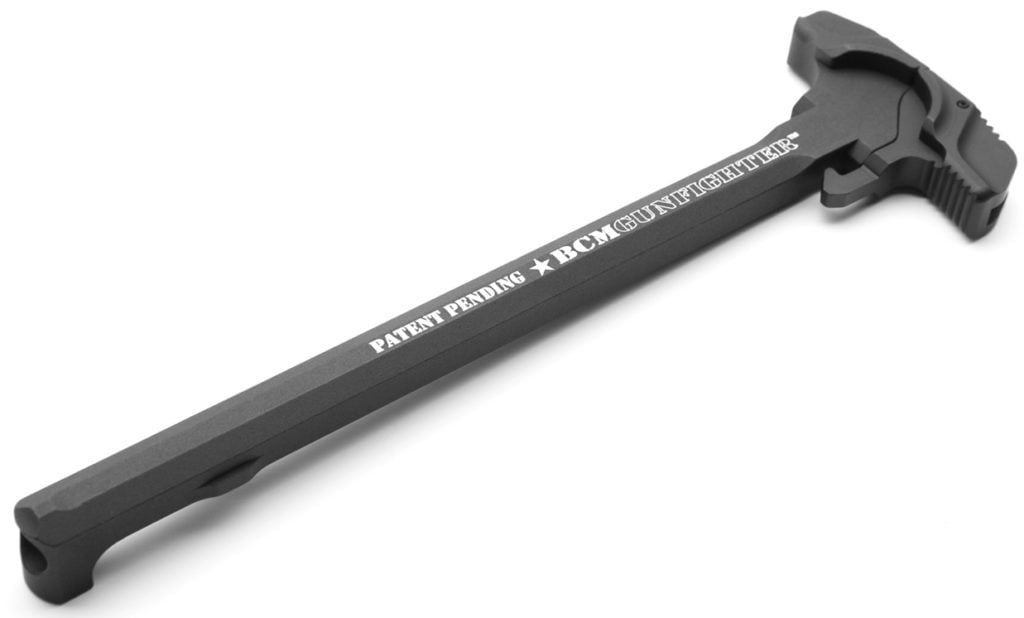

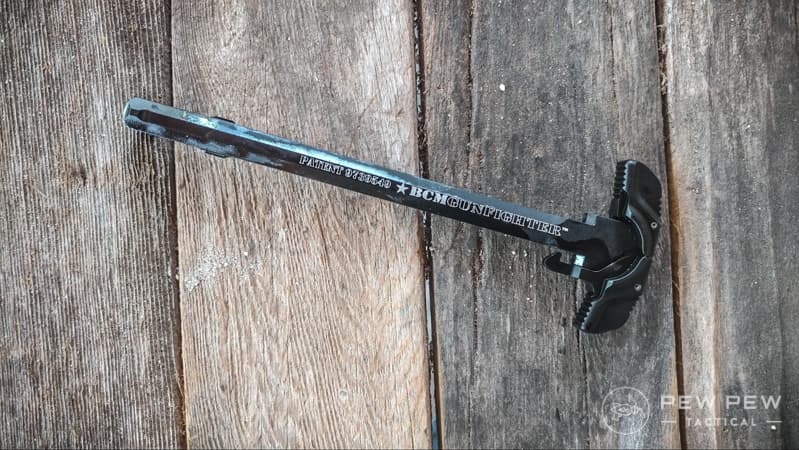

BCM Gunfighter Charging Handle

Favorite Charging Handle
BCM Gunfighter Charging Handle

BCM Gunfighter Charging Handle

The OG and one that goes on every one of our competition/defensive rifles.  Makes it much easier to rack the charging handle without worrying about flex or premature wear.

We’ve tried the cheaper options of just switching out the latch, but it just doesn’t feel as robust.  We go for the medium size Mod 4 for the balance of ease-of-use and potential to snag.

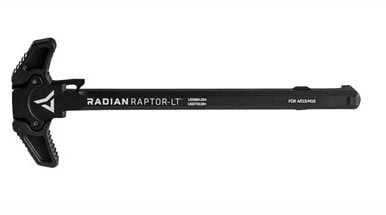

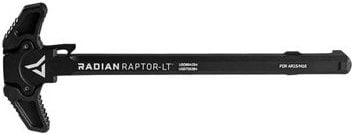

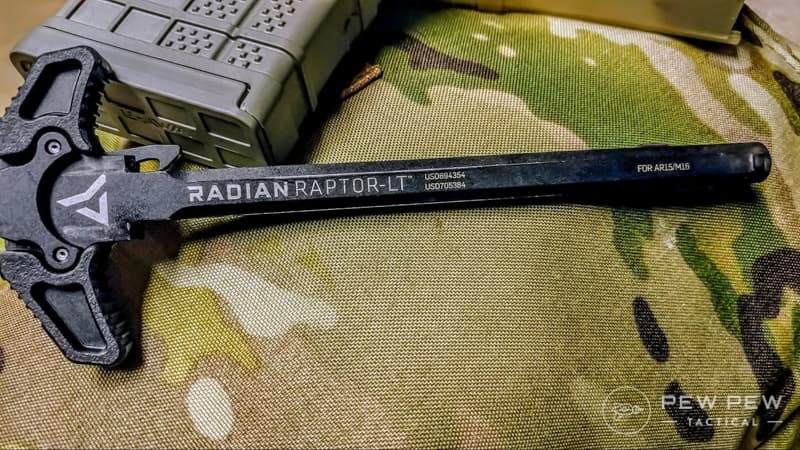

Radian Raptor LT (Ambidextrous)

Best Value Charging Handle
Radian Raptor LT Charging Handle

Radian Raptor LT Charging Handle

A newer kid on the block…this is the “light version” of the ambidextrous Raptor.  More affordable and lighter.

Especially useful if you’re a lefty or like to use your right hand to brass check.  Only a couple bones more than the BCM and you upgrade to ambidextrous controls.

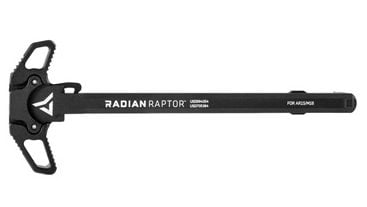

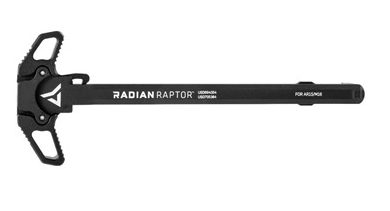

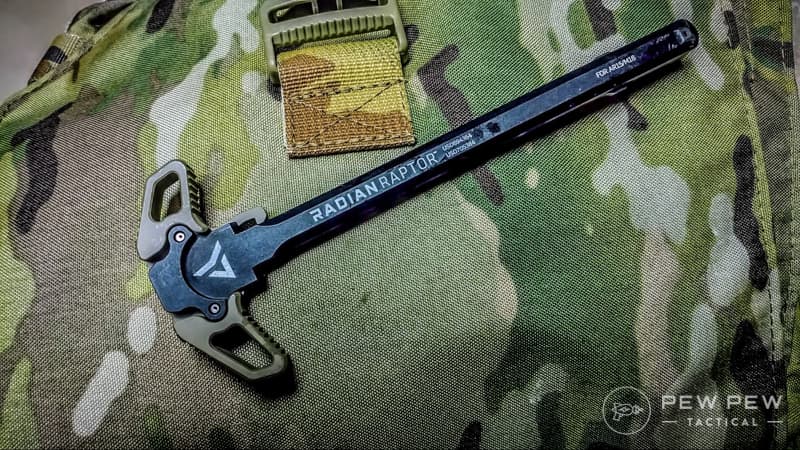

Radian Raptor (Ambidextrous)

Best Ambidextrous Charging Handle
Radian Raptor Charging Handle

Radian Raptor Charging Handle

The most robust and smoothest ambi charging handle out there.  But it will cost you.

Now let’s move onto upgrades you can do to the AR-15 lower…

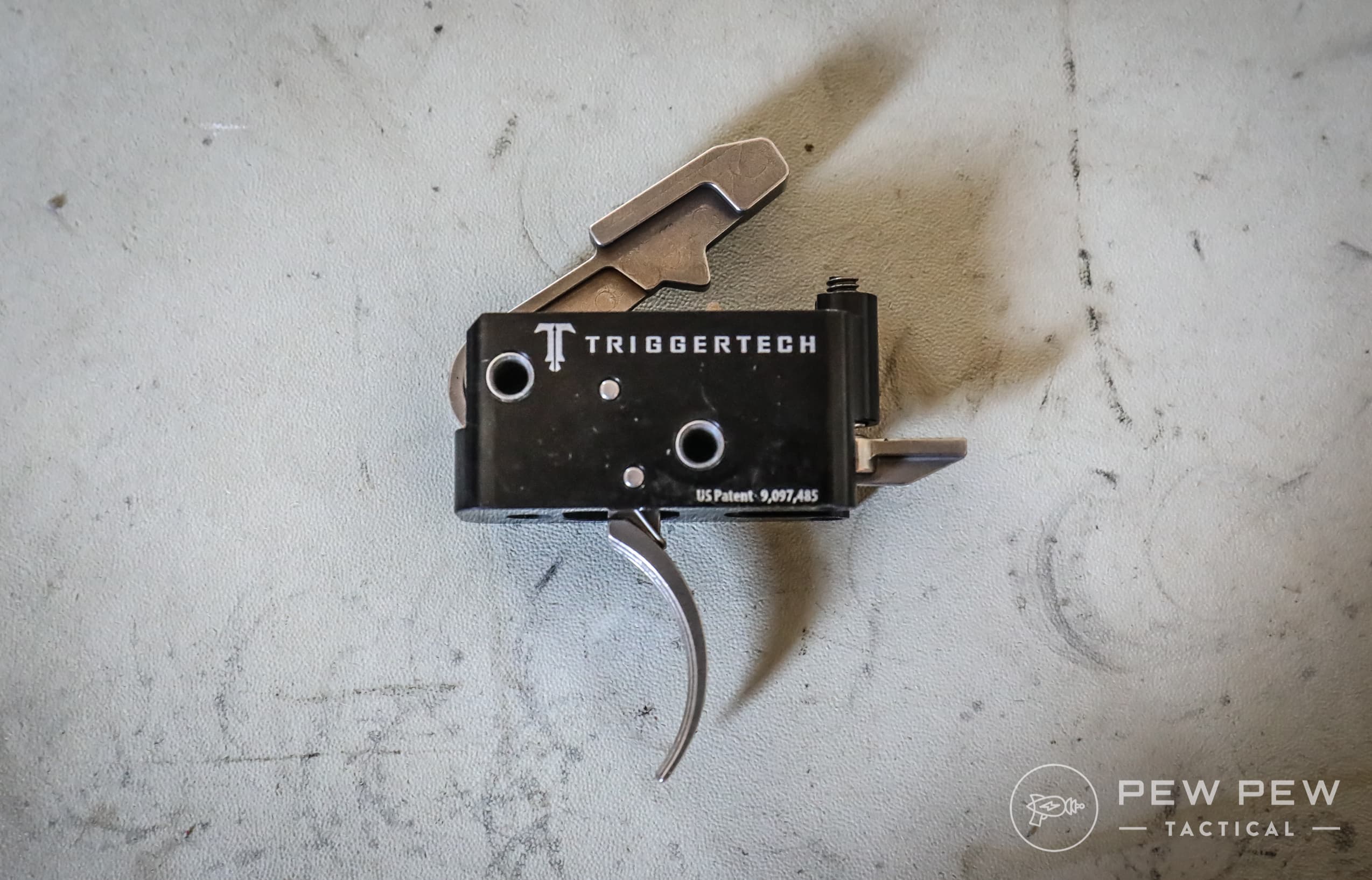

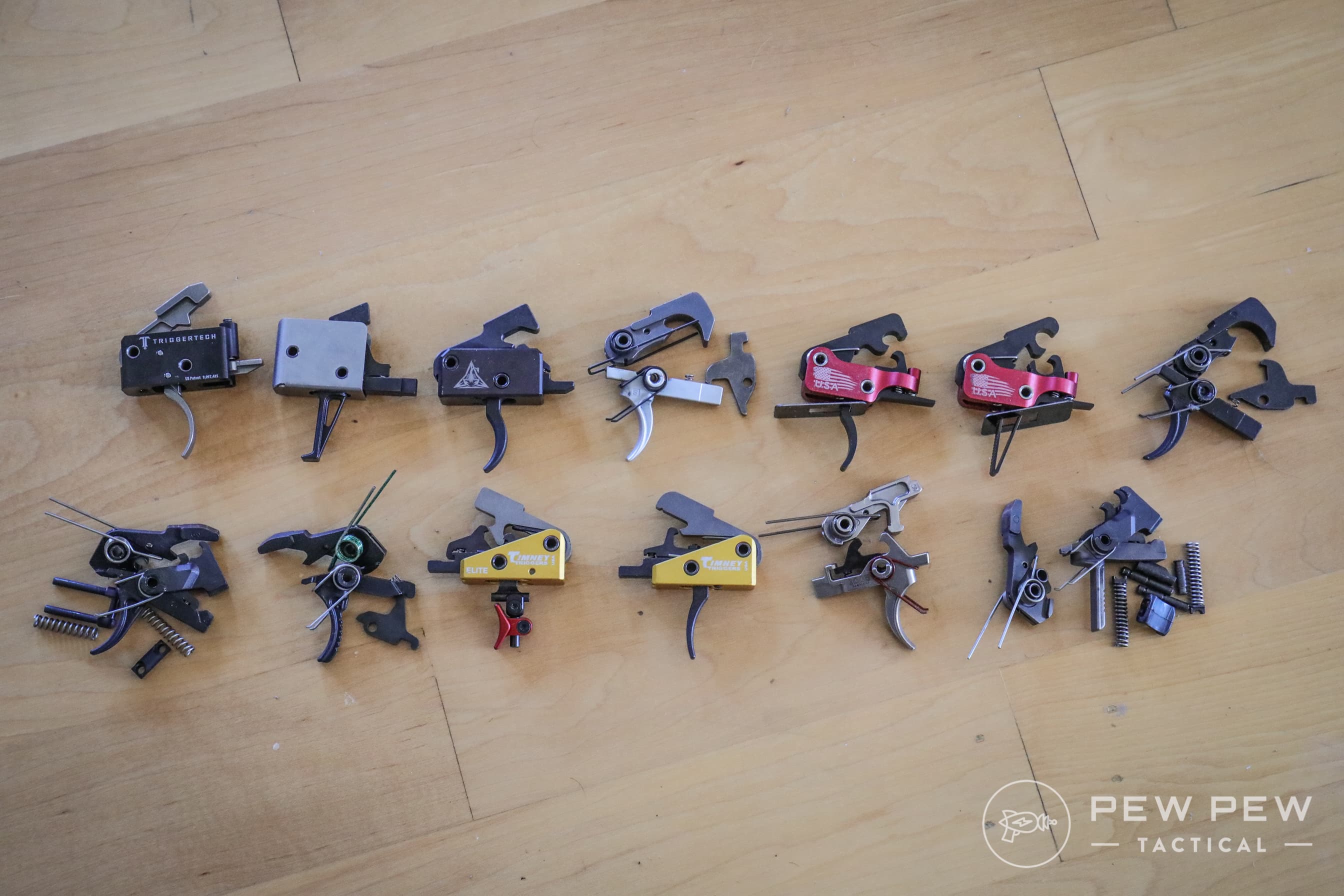

Best AR-15 Triggers

In our original How to Choose Your AR article, we recommended sticking with the stock Mil-Spec (military specification) trigger and letting it smooth out with use.  We still advise that with critical use AR’s such as home/self defense.

As you go with “better” triggers, you’re skirting the line between performance and reliability.  And with some guns, you want to make sure they will always go bang.  For others such as range plinking, competition, or precision shooting rigs, you care more about the crispness and lower trigger pull weight.

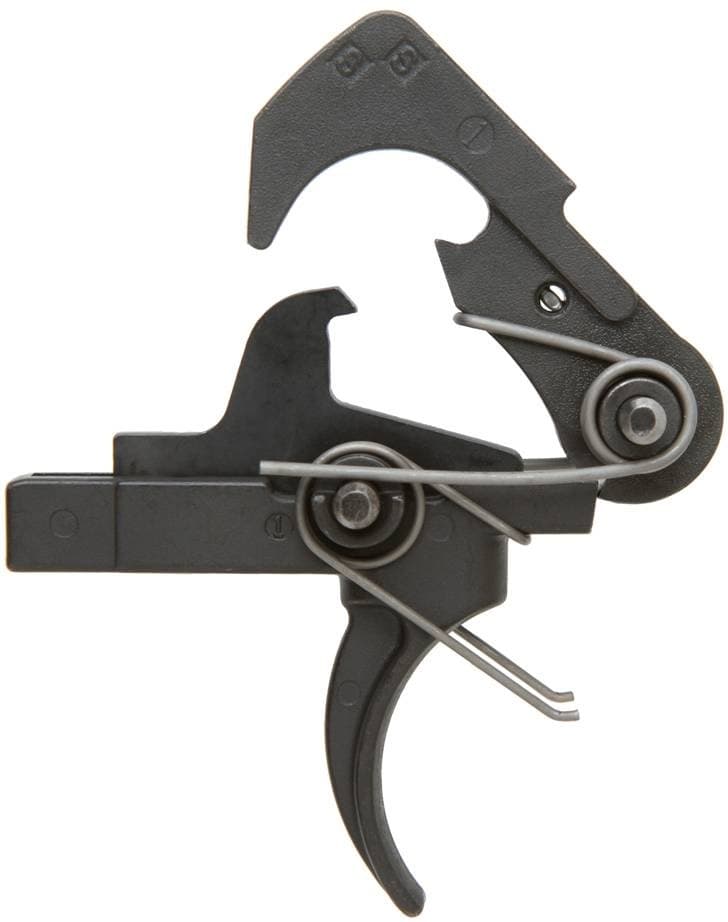

Mil Spec AR-15 Trigger
Mil Spec AR-15 Trigger

We’ll cover three varieties of aftermarket triggers: upgraded mil-spec, single stage, and two stage.

Upgraded Mil-Spec Triggers

These still maintain the same geometry as mil-spec stock triggers but are polished for a better feel.  They maintain the same reliability with slightly better pull weight and crispness.

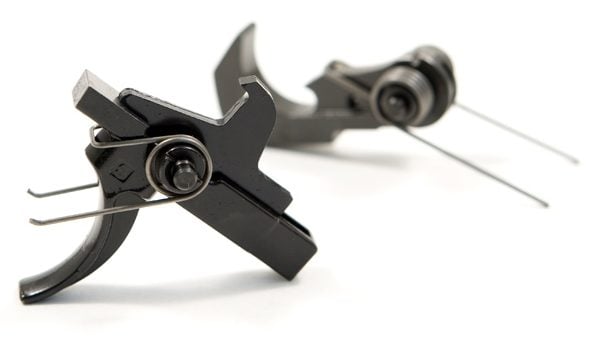

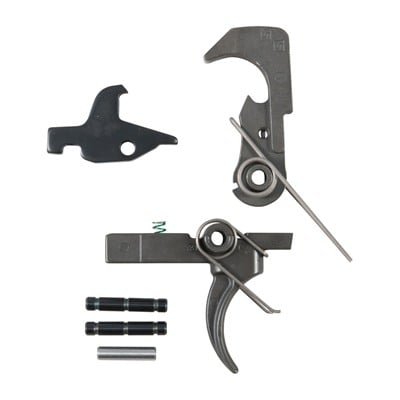

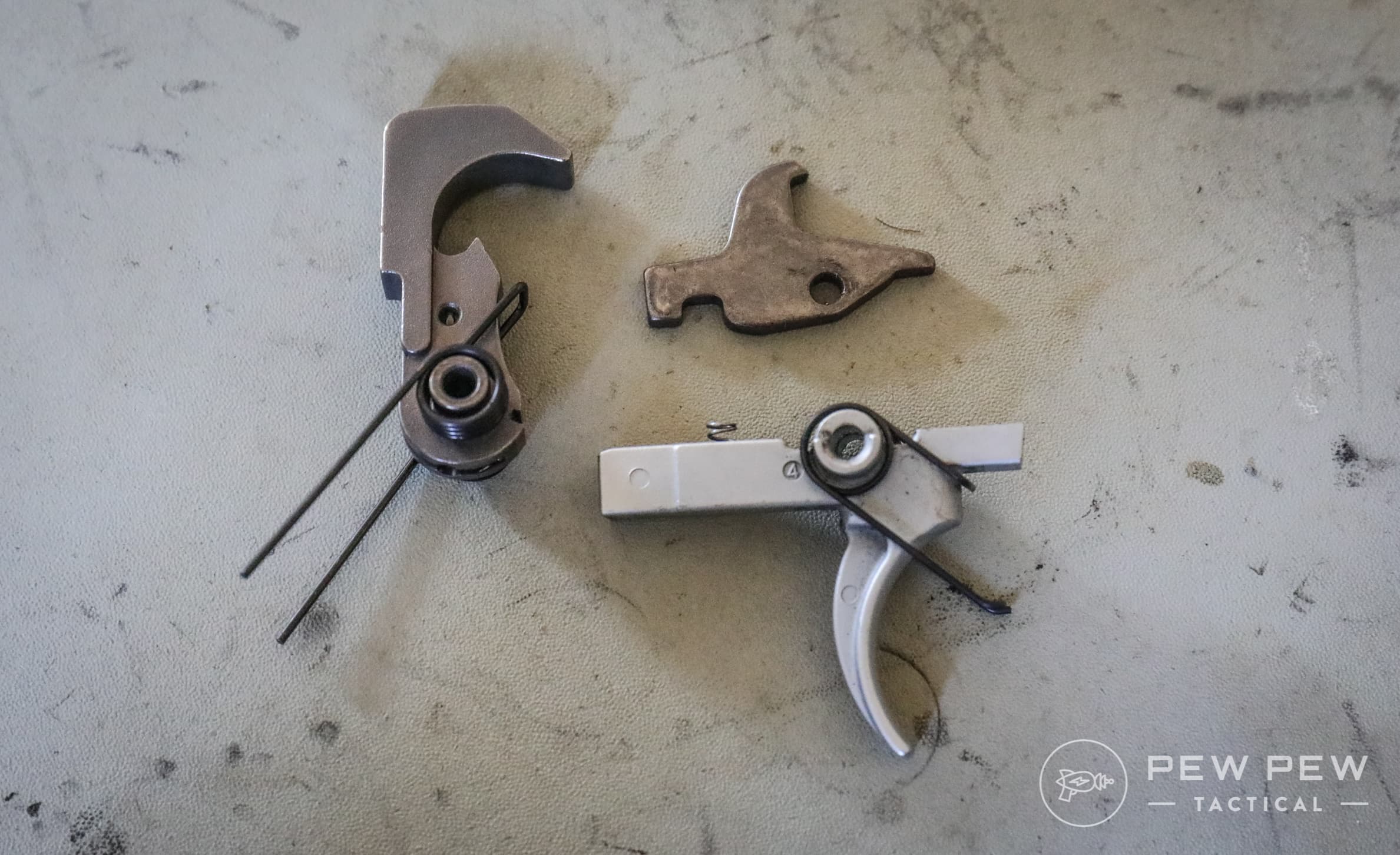

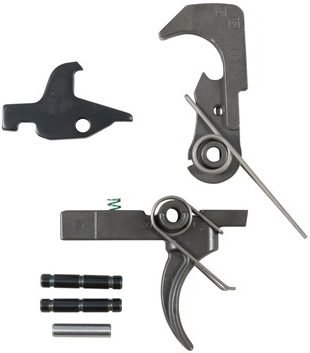

  • ALG Defense Trigger QMS: The go to brand for mil-spec reliability with some refinement at a 6.5 lbs trigger pull.

Readers' Ratings

5/5 (89)

Your Rating?

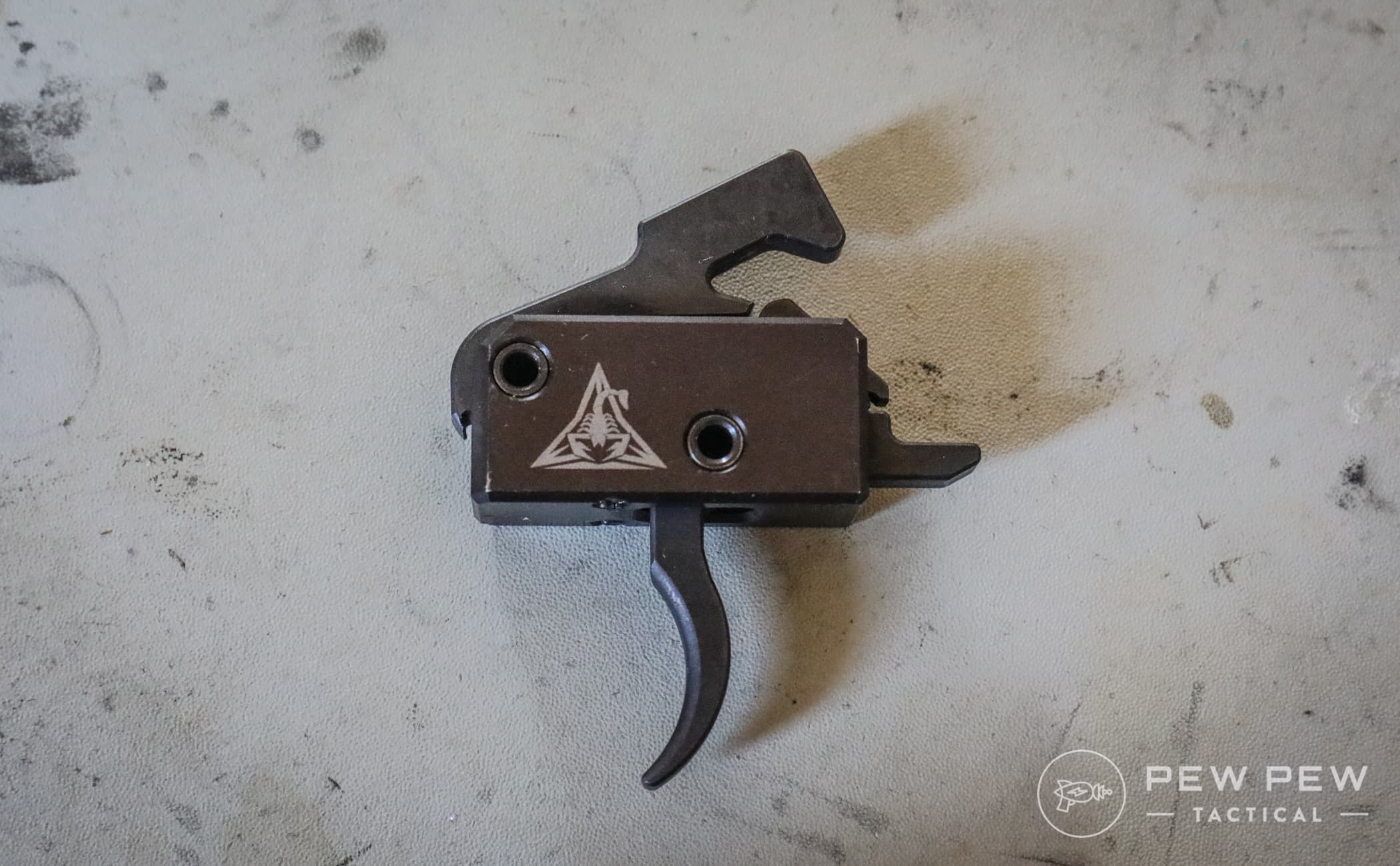

Single Stage Triggers

These are are very crisp triggers that move back in one movement with a usually lighter trigger pull.



  • CMC Single Stage Trigger: A drop-in match single stage trigger.  Choose between flat or curved trigger groups.  Breaks at around 3-3.5 lbs.
CMC Drop-in Trigger

CMC Drop-in Trigger

Prices accurate at time of writing

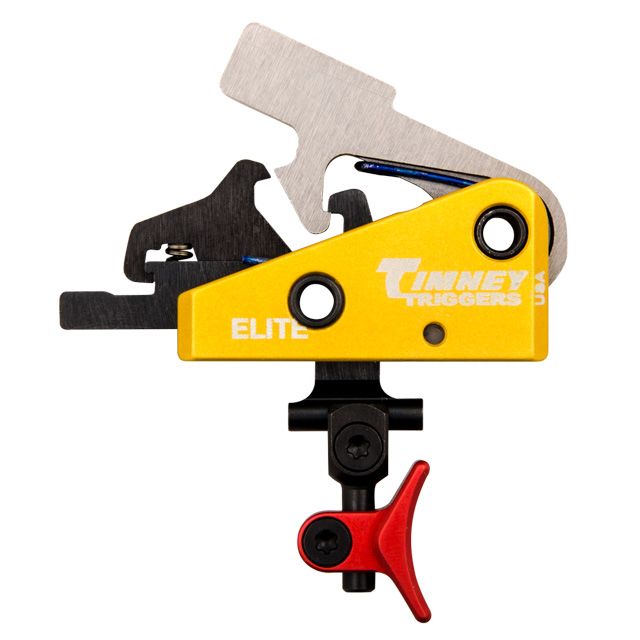

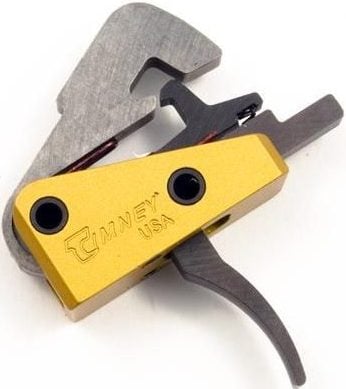

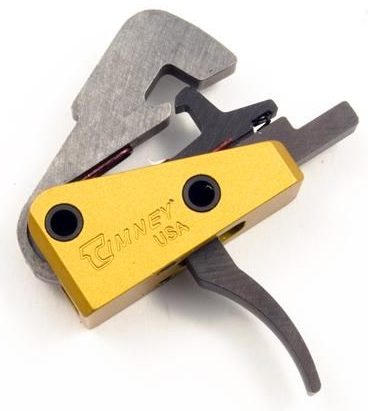

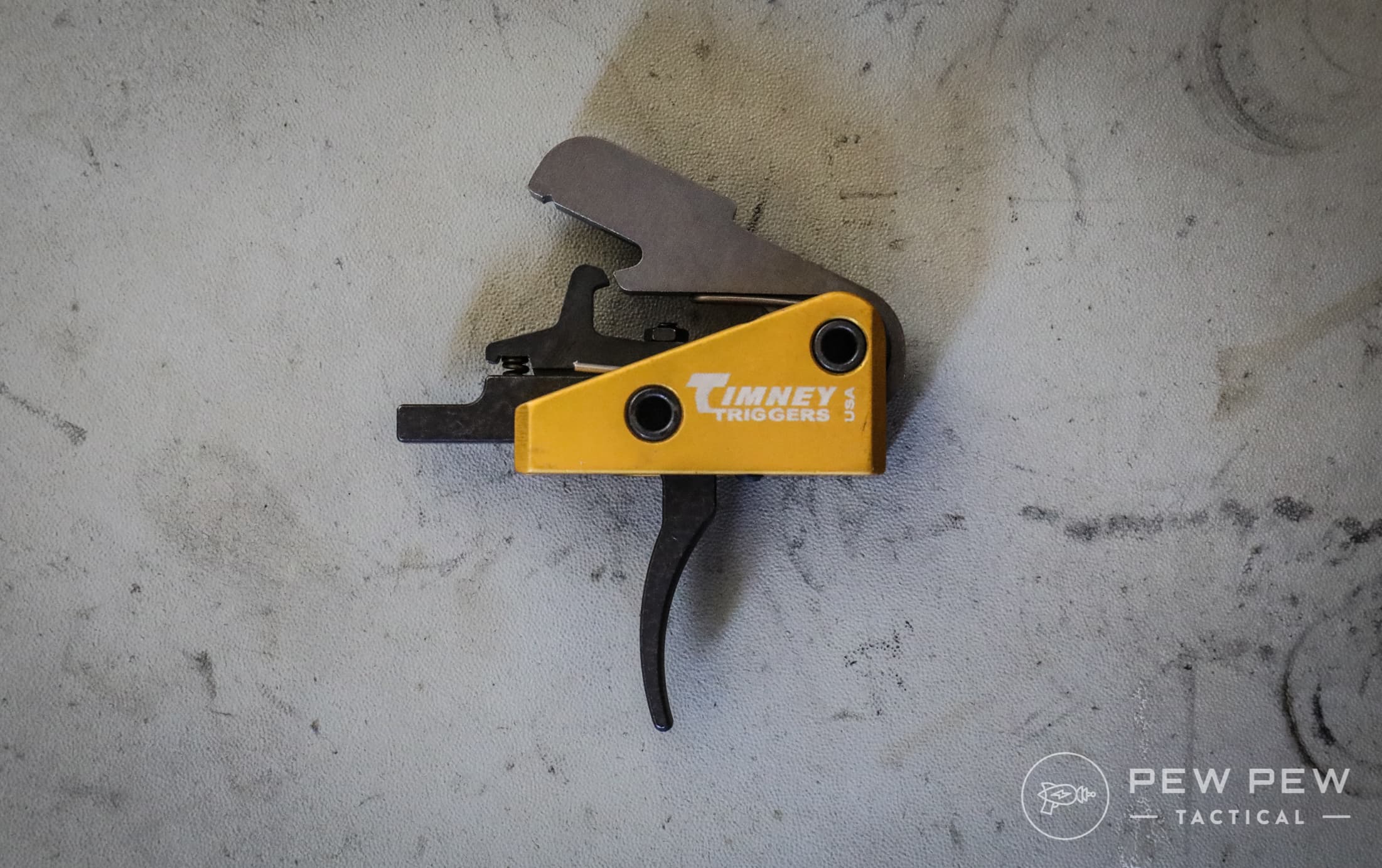

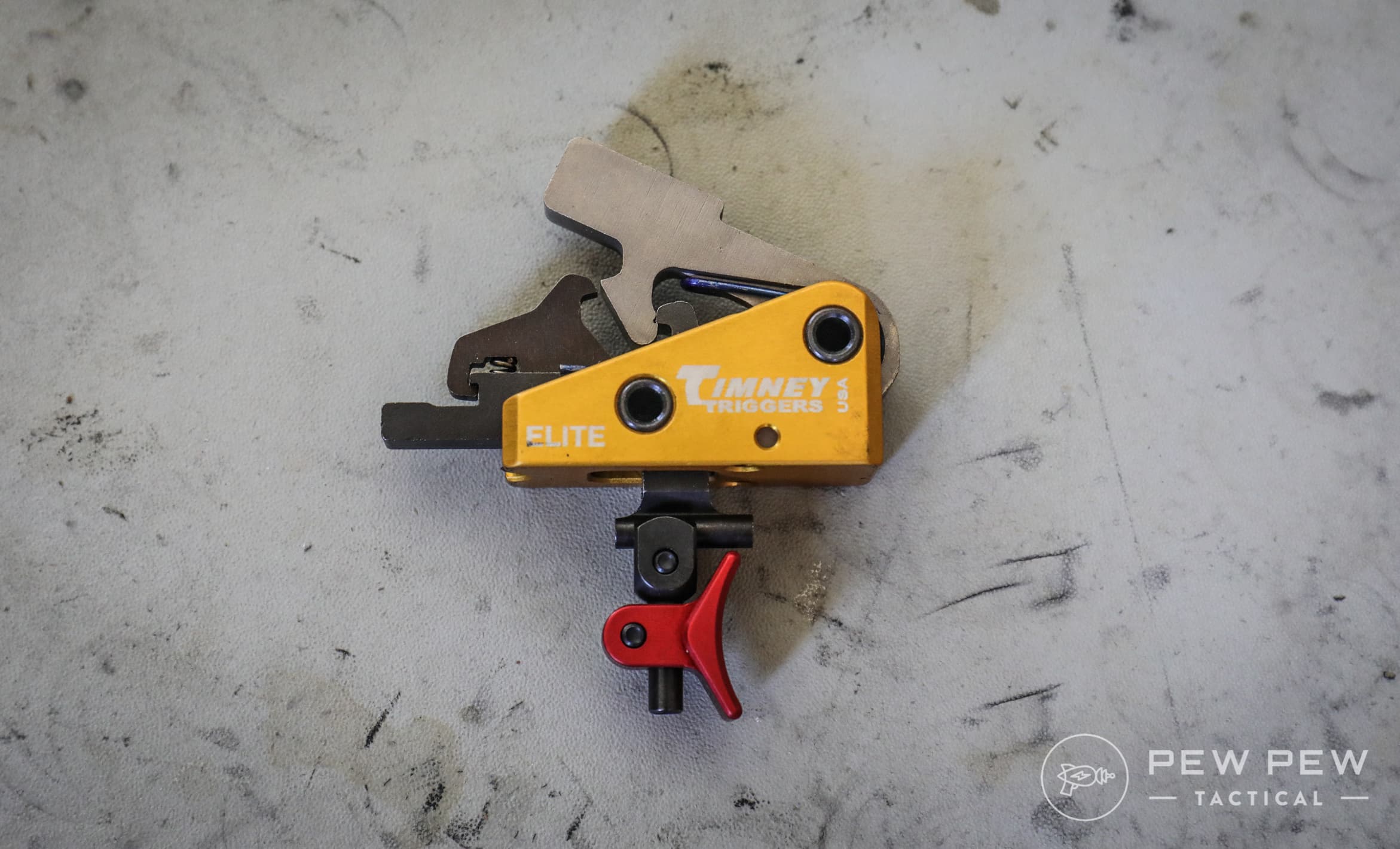

  • Timney Single Stage Trigger: Very famous trigger manufacturer.  These single stage trigger drop in easily and range from 3 to 4.5 lbs.
Timney AR-15 Drop-In Trigger

Timney AR-15 Drop-In Trigger

Prices accurate at time of writing

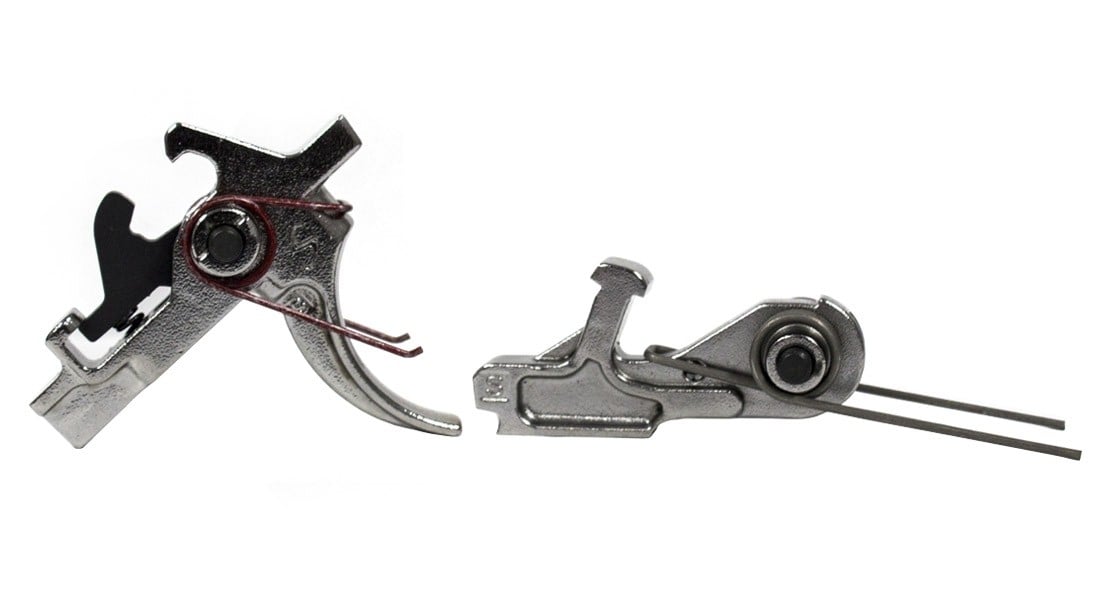

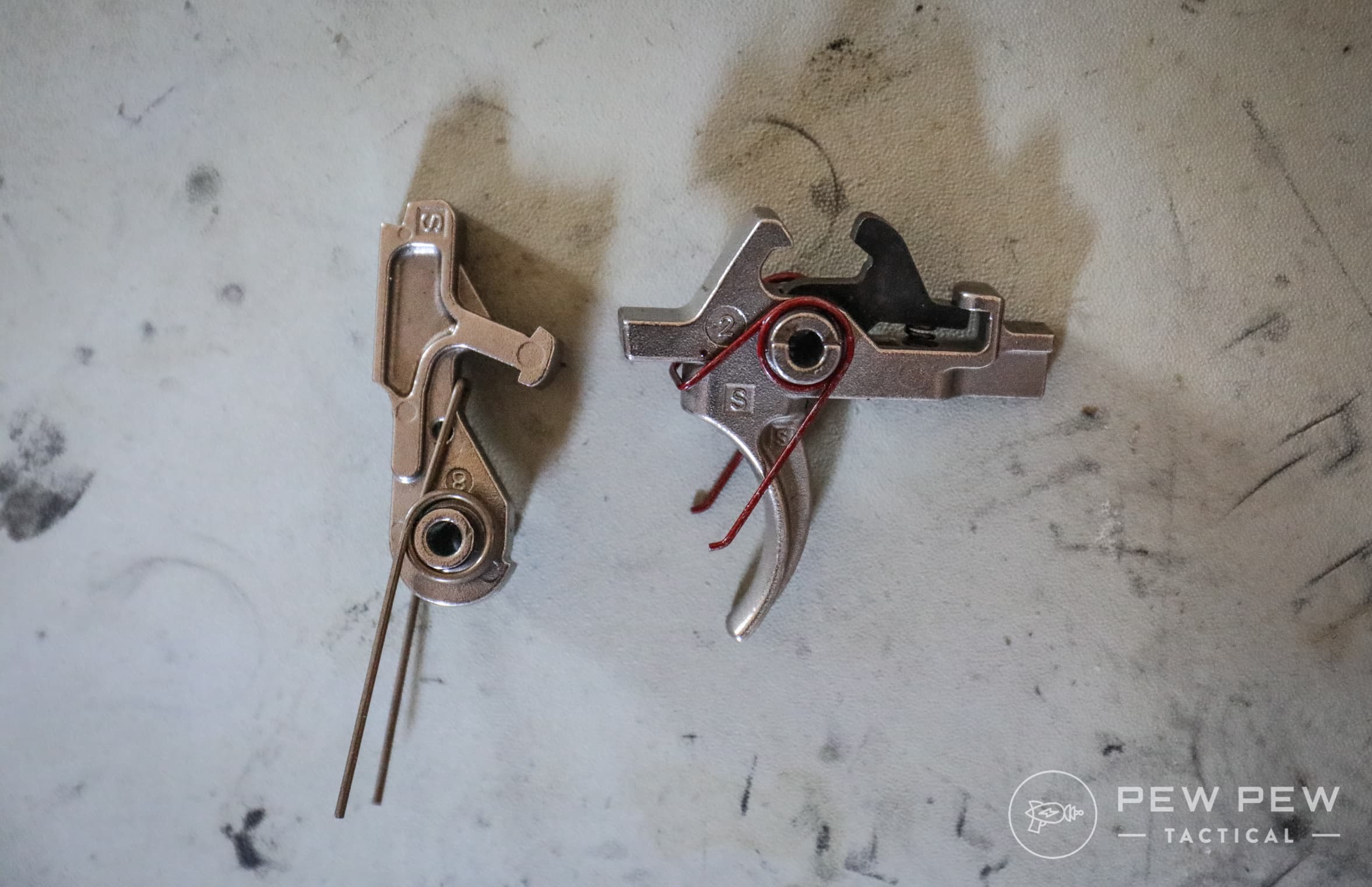

Two Stage Triggers

While single stage triggers require all the force to engage, these two-stage triggers allow you to take up most of the slack in the first stage before requiring just a little more pressure to fire on the second (about 1 pound).  Thus, two stage triggers are normally reserved for precision rifles but when pressed quickly act just like single stage triggers.

You can choose varying combinations of force required to “set” the trigger and the final force to “release.”

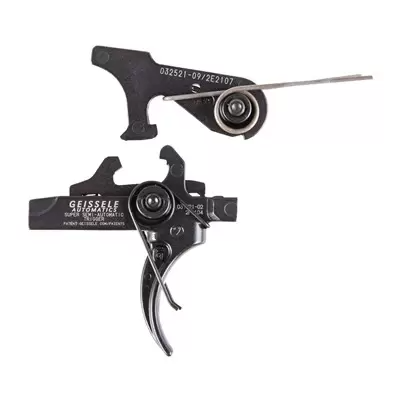

  • Geissele Two Stage Trigger: Super well-known name in the competition trigger world, especially for their two stage triggers.  Good choice of types of triggers and different weights from 3.5 lb (2.3 + 1.2)  to 4.5 lb (2.5 + 2) total pull weight.  $220-240.  Also, check out their enhanced reliability ($180) models and a more budget model ($170).
Geissele AR-15 Enhanced Triggers

Geissele AR-15 Enhanced Triggers

Prices accurate at time of writing

Current Favorite Trigger: Hiperfire

Hiperfire - HiperTouch Genesis

Hiperfire - HiperTouch Genesis

Prices accurate at time of writing

Hiperfire is a relative newcomer and their triggers definitely look futuristic.  What that extra set of springs allows is fine-tuning of your trigger pull (2.5-4.5 pounds) while actually increasing hammer strike strength.

One possible problem with traditional upgraded triggers is that in an effort to get the trigger pull weight down, the hammer strength is reduced too.  This might result in light hammer strikes…which equals NO PEW.  I’ve seen this happen a good amount of times during rifle competitions.

I’ve tried out their HiperTouch Genesis ($215) and also their top of the line Eclipse ($275), and both offer almost no initial creep, a crisp reset, and actual 2.5 lb trigger pull.  The Eclipse is what I run in my competition rifle now.

Best AR-15 Ambidextrous Safety

For the lefties out there or for poor Californians running “featureless” AR-15’s who need to be able to flick their safety on the right side.

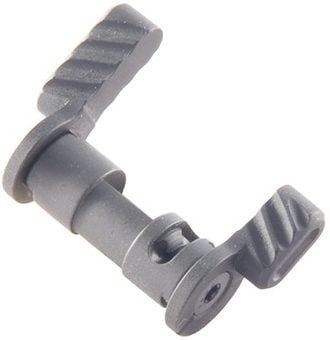

  • Battle Arms Ambi Safety: Lower profile safety lever on the right side that won’t interfere with right-handed shooting.  What we run in our competition guns.
Battle Arms Ambi Safety

Battle Arms Ambi Safety

Prices accurate at time of writing

DPMS Ambi Safety

DPMS Ambi Safety

Prices accurate at time of writing

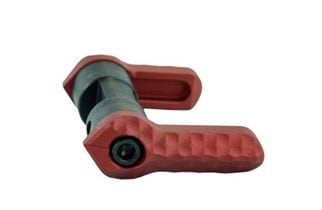

  • Seekins Ambi Safety: Or if you’re looking for some flair and quality.  Plus these work the best with Featureless AR Builds.

Overwhelmed yet?  We’re almost done!

Miscellaneous AR-15 Upgrades

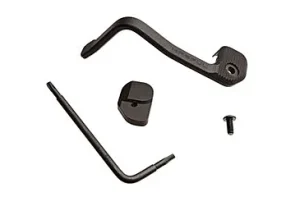

Magpul BAD Lever

  • We love the BAD Lever since you can manipulate the bolt release using your right hand and not resort to hitting the paddle with your left hand.  Also great to easily lock your bolt back during cease-fires at the range.  Great for competitions and what we have on all our AR-15’s.  Super easy to install.  ($28)

Are We Done?

That should get you through most of the major upgrades for the AR-15.  But there’s still tons of things to upgrade such as AR furniture and optics/lights, and we’ll cover them in our next installments.

If you’re planning on upgrading a lot…you might be better off building your own.  Check out how with our AR-15 Resources Page.

32
Leave a Reply

avatar
16 Comment threads
16 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
21 Comment authors
Al PConnor HEric HungPaulMichael Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Connor H
Guest
Connor H

I’ve read recently that some leaders in the field/experts/gunsmiths are now advising against HP (high pressure tested) barrels and bolts, due to the concern that subjecting them to pressures well beyond those they would ever realistically operate at can introduce stress and potential failure to the barrel/bolt a few thousand rounds later. This seems logical to me, do you have any experience in this area? Do you still recommend HP tested components?

Michael
Guest
Michael

POF offers a full auto drop in trigger – if I have a full auto BCG will my rifle be full auto?

Paul
Guest
Paul

It could be possible, but the full auto capability generally is achieved through the full-auto sear, but I’ve never seen a “full auto trigger”, tread carefully, and update if available

Al P
Guest
Al P

Absolutely not. You need an auto sear, and auto selector switch. Before all that contact the NFA to fill out the correct forms. I don’t advise in anyway skirting these laws. Good luck.

Ryan
Guest
Ryan

Any advice for new buyers looking at rifle slings? Specifically, mount options, and one vs. two point slings.

Ryan
Guest
Ryan

Definitely 2 point based on what I’ve read. 1 point seems to be made by a feminist since the rifle will hit your junk every time you walk. 3 point is easy to get tangled in. I’ve heard good things about the blue force vickers sling but it’s pricey at around $100. Another good option is the Magpul MS3. These 2 slings are modular in that you can change it from 2 point to 1 point on the fly based on the situation. I personally prefer the QD mount system, easy off, easy on.

Eighty
Guest
Eighty

Single-point is fine if you are working security and standing still all day, three-point is indeed a mess. Viking Tactics has a padded, adjustable two-point that works really well.

Check out “The Operator’s Guide to the 2 Point Quick Adjust Sling” by InRangeTV
https://www.youtube.com/watch?v=ZJCBmCQ7Txo
They also have a good one on choosing how many points to use
https://www.youtube.com/watch?v=jdUfsYinS-k

Aiden
Guest
Aiden

I just bought a Ruger Ar-556 the other day and I’m new to the AR game but man, this site is pinned in Google for me to use for a while. I have been reading what you have written on other articles over the past 6 months without posting, but I thought I should now. Thanks brother.

Tseng
Guest
Tseng

What is the best AR15 scope thanks
