[Review] Henry AR-7: Takedown Survival Rifle

Looking for a takedown rifle that’s 3.5 lbs and can be assembled in under a minute?

AR-7 Parts
AR-7 Parts

Boom, I’ve got the Henry AR-7 Survival Rifle in .22LR for you today.

I’ll cover how this purpose-built little rifle might be your next gun for backpacking and general prepping.

Best Survival .22 LR Rifle
at Guns.com

Prices accurate at time of writing

Prices accurate at time of writing

Coupled with some super quick history and of course…shooting, reliability, and more!

Table of Contents


Who Is It For?

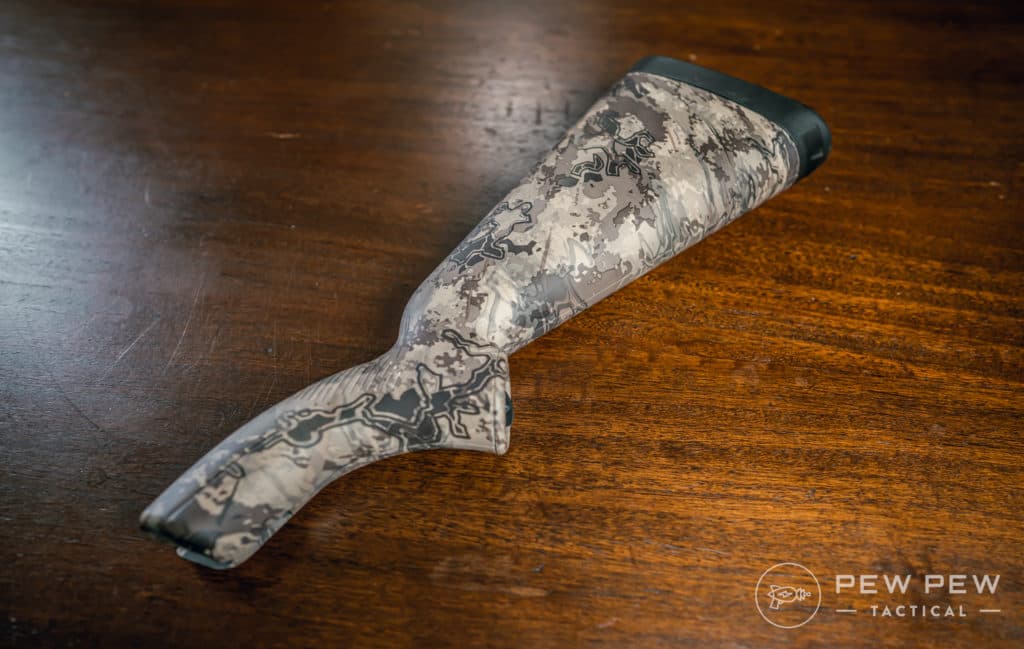

Henry AR-7 in Viper Western Camo
Henry AR-7 in Viper Western Camo
  • Pilots and crew who need to survive after bailing out (it’s original purpose)
  • Someone who wants a 16″ takedown survival rifle for backpacking or prepping in their go-bag
  • Someone who wants a utility rifle in their vehicle in an emergency
  • Someone who wants a super-light 3.5 lb rimfire rifle for plinking at the range

Brief History

The AR-7 was another Eugene Stoner production (along with the AR-15) while he was at Armalite in the 50’s.

From Russia with Love, AR-7
From Russia with Love (1963), AR-7

Armalite sold the rights of the AR-7 to Charter Arms in 1973 who kind of messed it up and contributed to a less than stellar reputation of the AR-7.

Henry Repeating Rifles got the design and production rights in 1980 and fixed it up a bit (more details coming up).

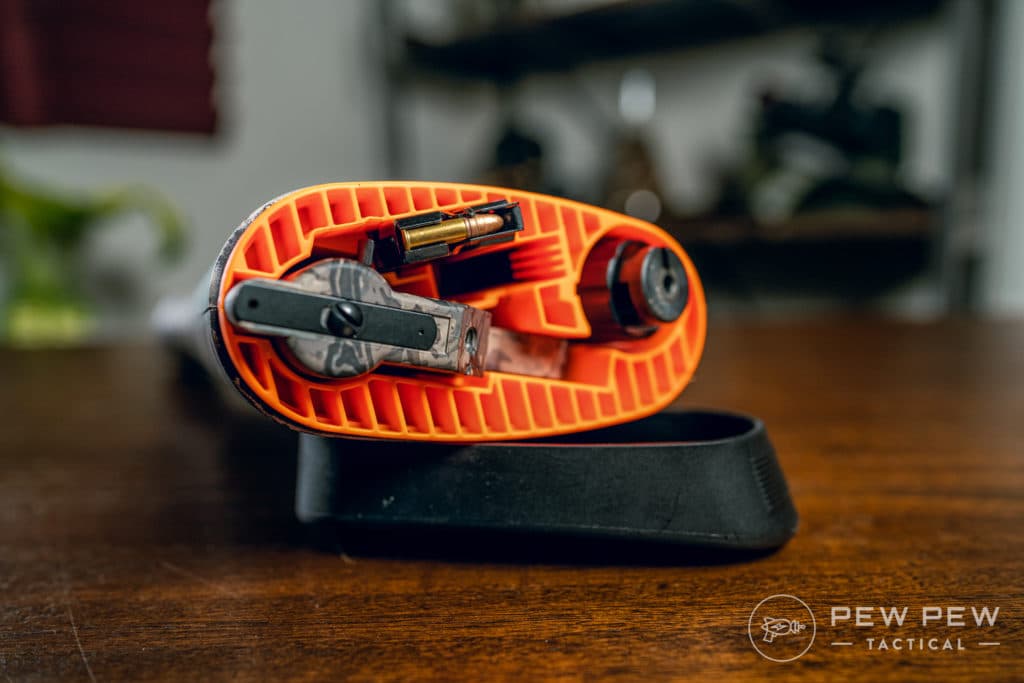

All the guts (barrel, receiver, mags) come in the ABS plastic buttstock.

Henry AR-7s
Henry AR-7s

All you need to do is pry open the back.

AR-7 Innards
AR-7 Innards

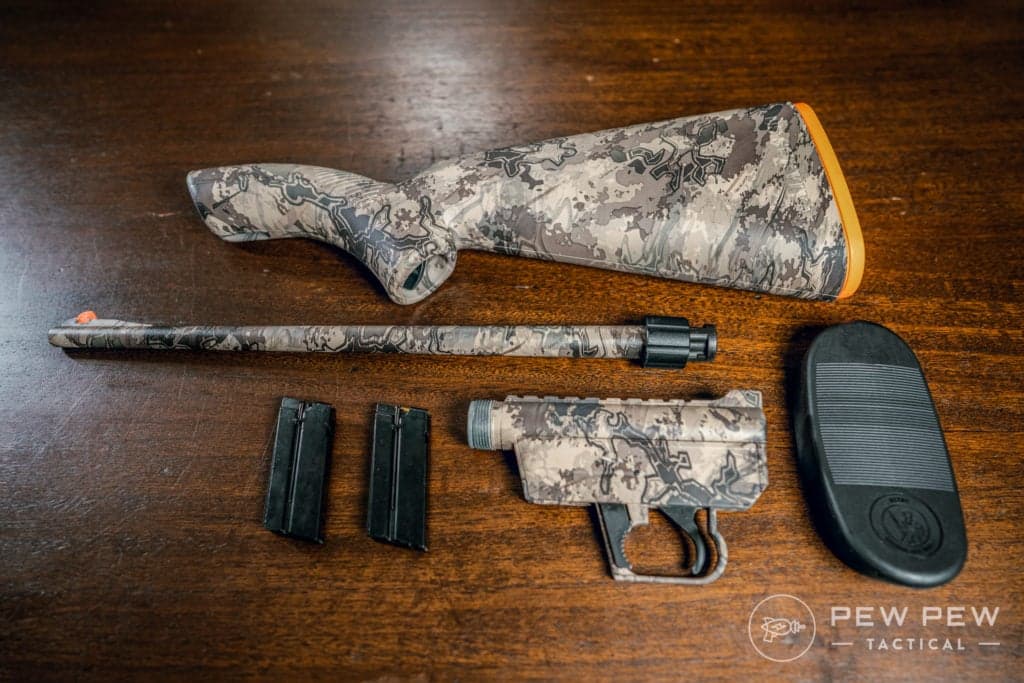

And dump everything out…

AR-7 Parts
AR-7 Parts

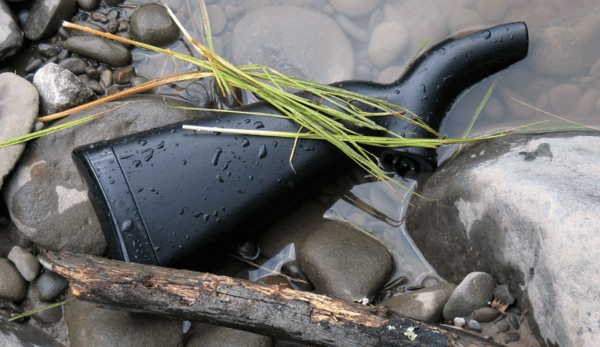

I like the orange back of the buttstock which lets you know if you didn’t get a complete seal. It will keep a decent water seal that will keep the AR-7 afloat for some time.

Stowed Henry Survival AR-7
Stowed Henry Survival AR-7

You can tape or add some Saran wrap before covering to give it an extra edge.

Assembly is super easy and once you practice a few times…easily under a minute.

I’m not quite sure if there’s a proper order…but here goes!

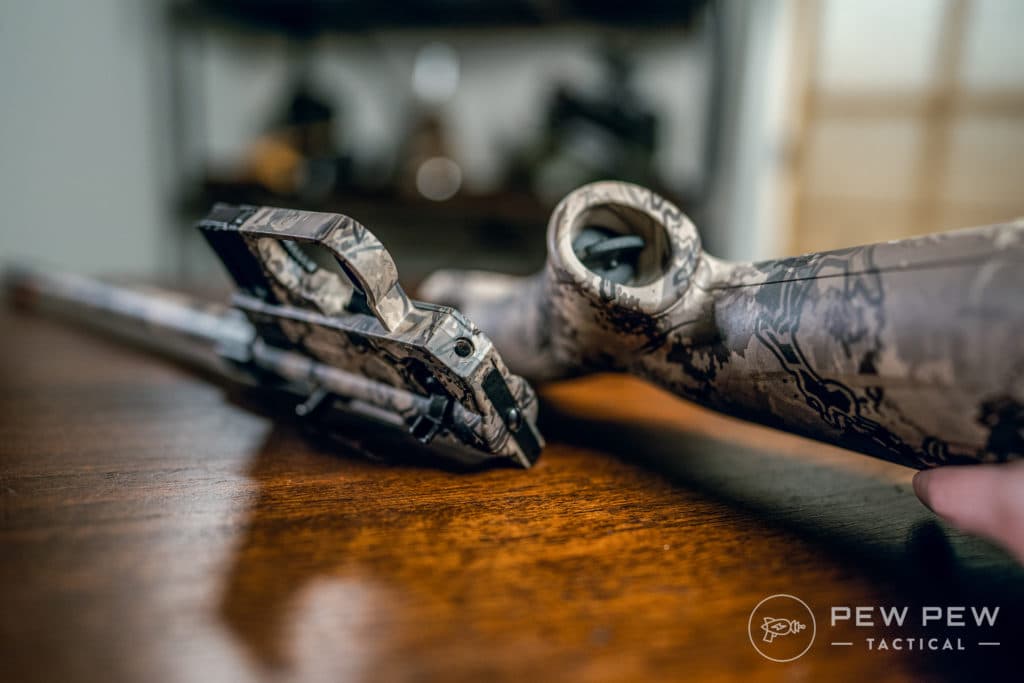

Find the receiver screw and line it up with the buttstock and use the plastic knob on the bottom of the grip to get it tight.

AR-7 Receiver Screw
AR-7 Receiver Screw

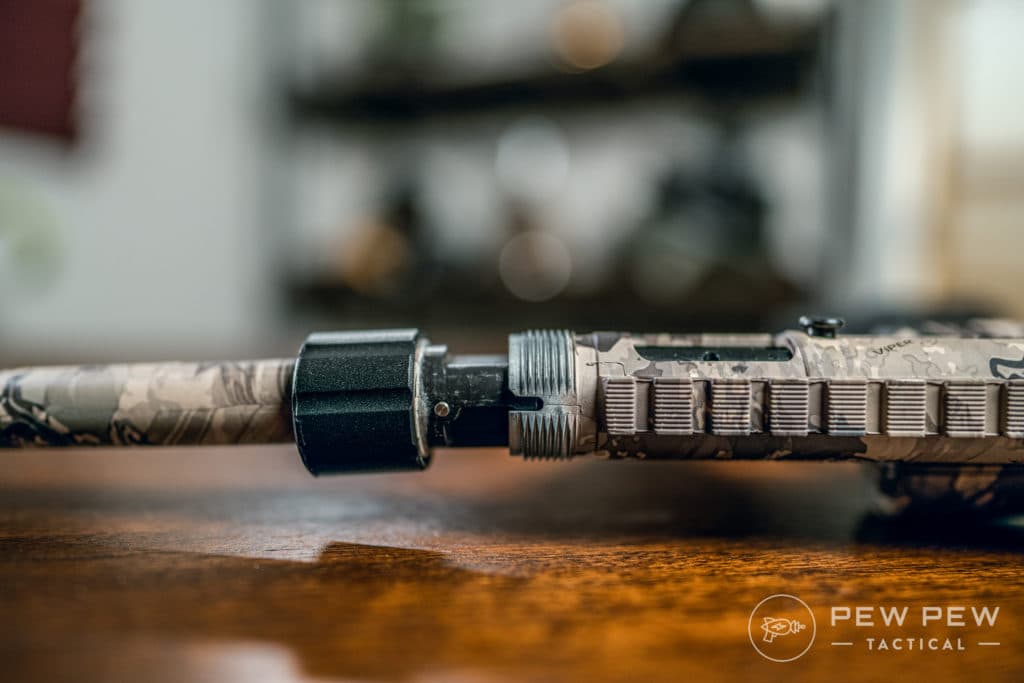

Then attach the barrel to the receiver…it has that indexing nub that’s familiar to anyone who has built an AR-15.

Henry AR-7 Barrel Nut
Henry AR-7 Barrel Nut

Hand-tighten the nut and that’s it…but don’t forget to put the buttstock plate back on.

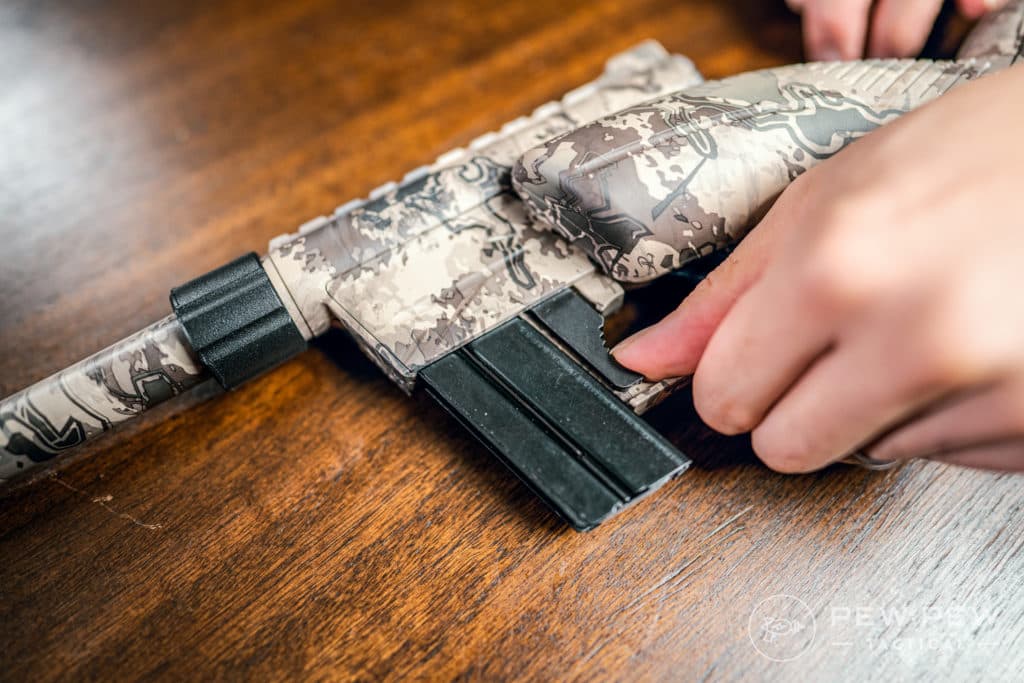

Mags go in like mags do…and the mag release is on the left side.

The package comes with 2 8-rounders but you can easily fit three with one in the receiver.

Henry AR-7 Magazine Release
Henry AR-7 Magazine Release

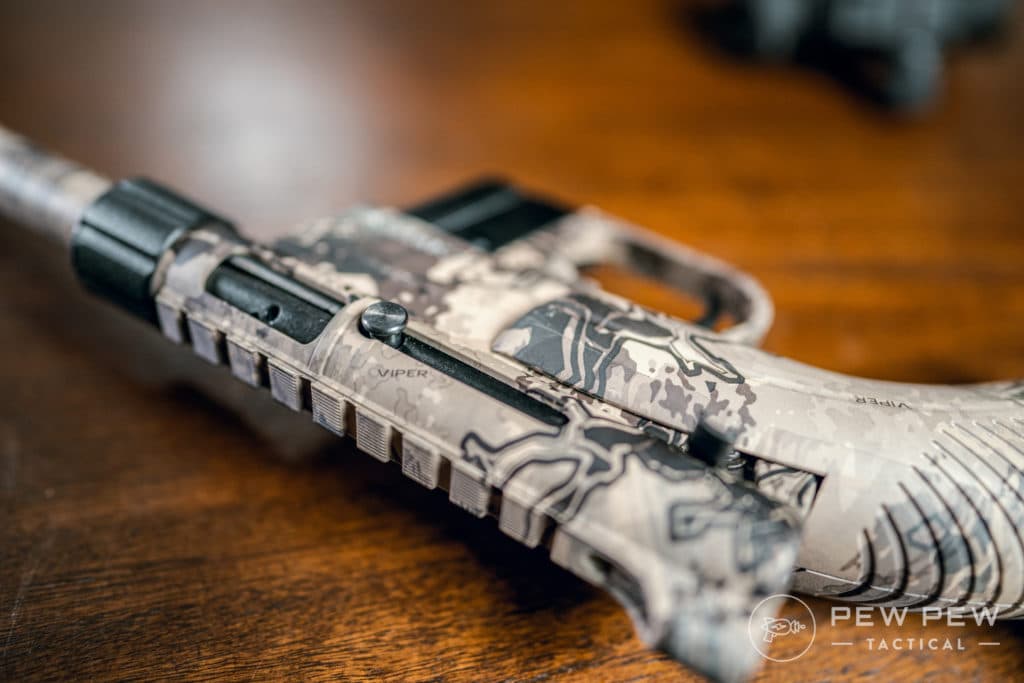

The bolt is pretty cool in that it’s recessed…

AR-7 Bolt Lever, In
AR-7 Bolt Lever, In

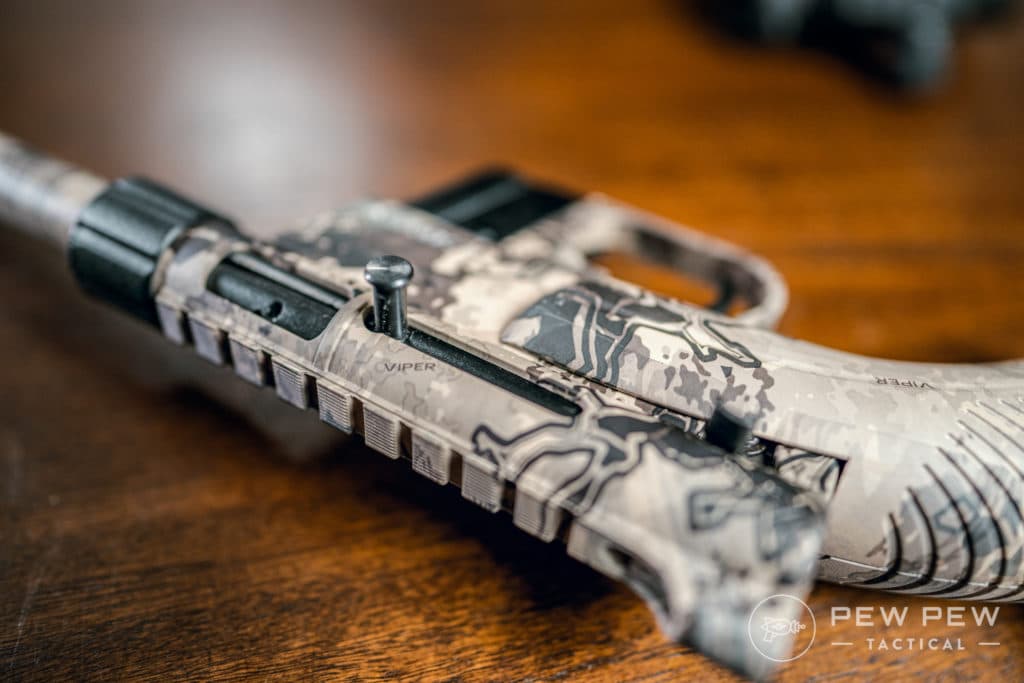

Until you need it.

AR-7 Bolt Lever, Out
AR-7 Bolt Lever, Out

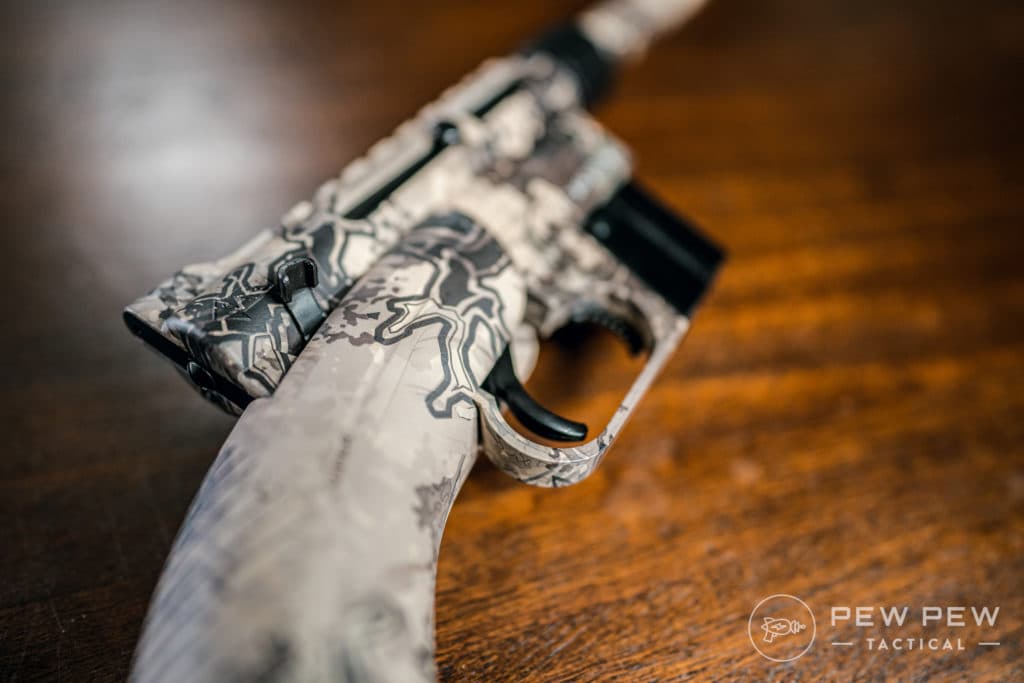

And finally…safety is on the right side with an easy lever.

AR-7 Safety and Trigger
AR-7 Safety and Trigger

Now…let’s get some rounds through!

How Does It Shoot?

Now that’s pretty cool!

As a .22LR there’s almost no recoil even in a lightweight 3.5 lb blowback gun.

And you can hear the super positive reset of the trigger.

Speaking of the trigger…it’s surprisingly decent. Mine clocked in at around 3 lb with some creep/grit but a clean break. And of course the very audible/tactile reset.

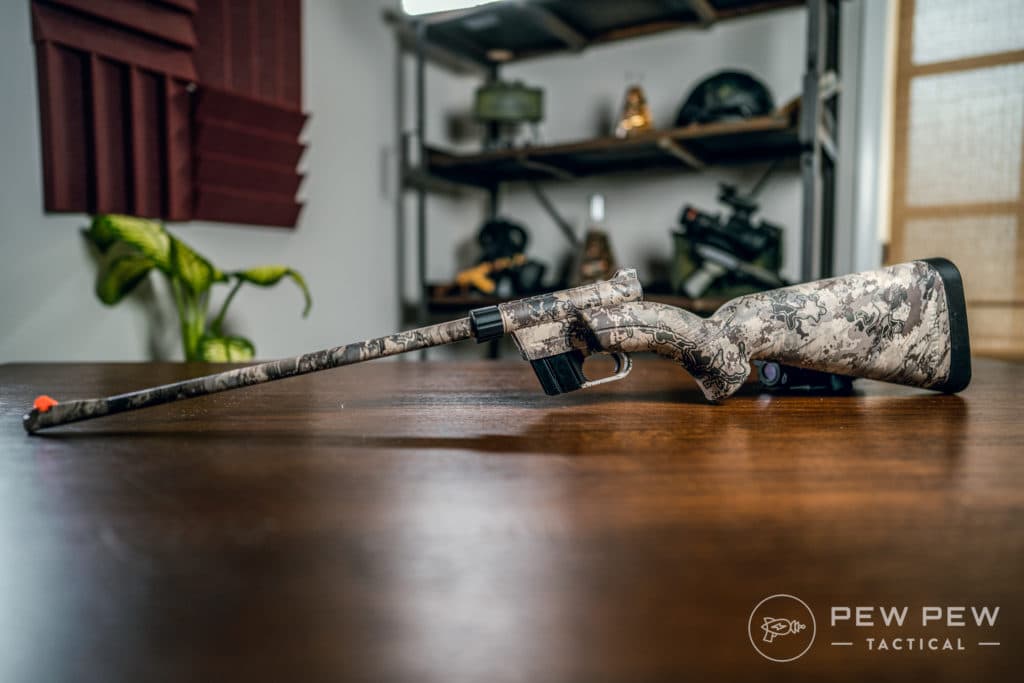

The one thing that surprised me was the thickness of the buttstock.

Assembled Henry AR-7
Assembled Henry AR-7

There’s no way around it if you want to fit everything in it. It can look a little weird but you get used to it pretty quickly.


Accuracy was fine…you’ll be able to hit small game at 50 yards if you do your thing. I was easily nailing clays at around 35 yards.

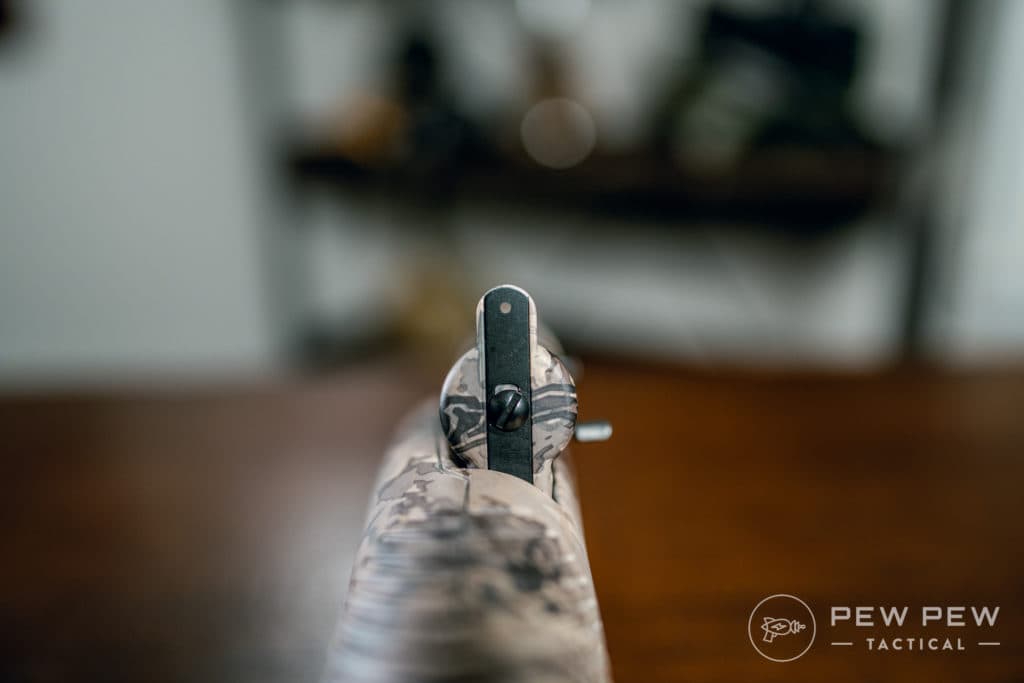

Rear sight is a nice peep.

AR-7 Rear Sight
AR-7 Rear Sight

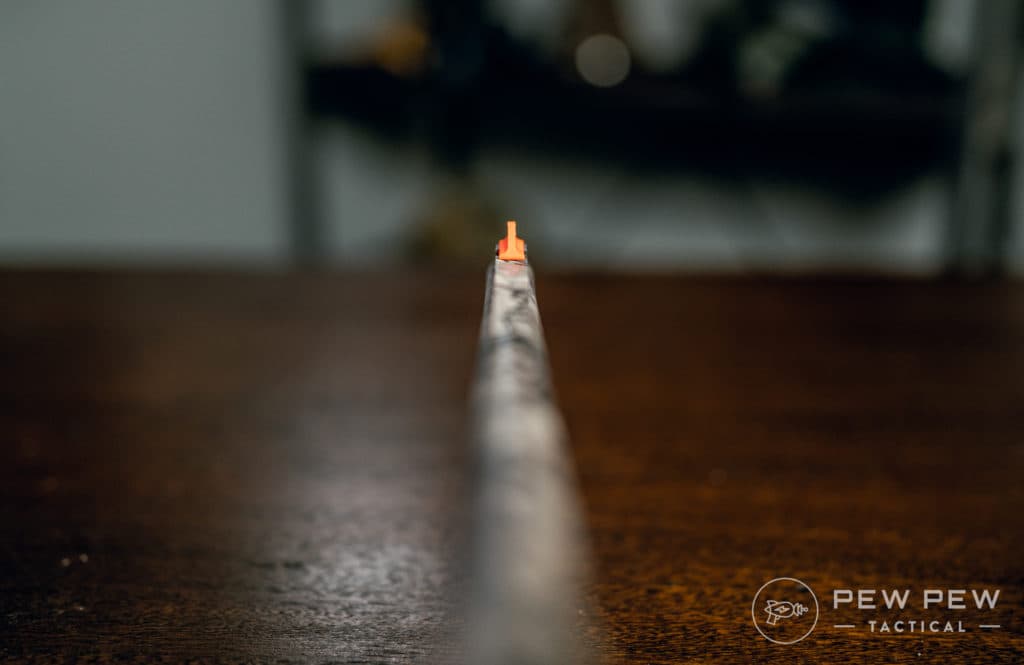

And a bright orange front sight blade.

AR-7 Front Sight
AR-7 Front Sight

Want to add an optic?

You can with the 3/8″ Weaver rail on the receiver.

AR-7 Bolt Lever, Out
Weaver Rail

But where are you going to store the scope?


Older versions of the AR-7 got a bad rep due to some design flaws…especially in the magazine.

The feed lips were easy to bang up and rounds started shifting in the mag.

Henry solved those things with a redesign that includes two wires that go along the side of each mag to maintain correct positioning.

Henry AR-7 Magazine Release
Henry AR-7 Magazine Release

But ammo choice still matters in the world of rimfire.

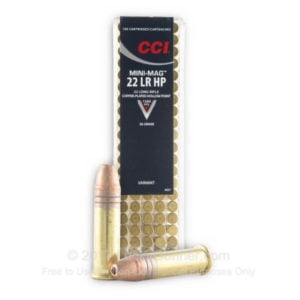

It’s highly recommended that you go with some hotter stuff like CCI Minimag.

I had zero malfunctions with those and you can check out more of my favs in Best .22LR Ammo.

When I dove into Walmart stuff…I started getting some jams. But nothing more than what I would also get in other rifles.

You can also handload individual rounds into the chamber if you’re using really soft stuff (or forget to bring your mag).

One thing to note is that there’s no land round bolt hold open. You might need a chamber flag for some ranges.

Henry Survival Pack

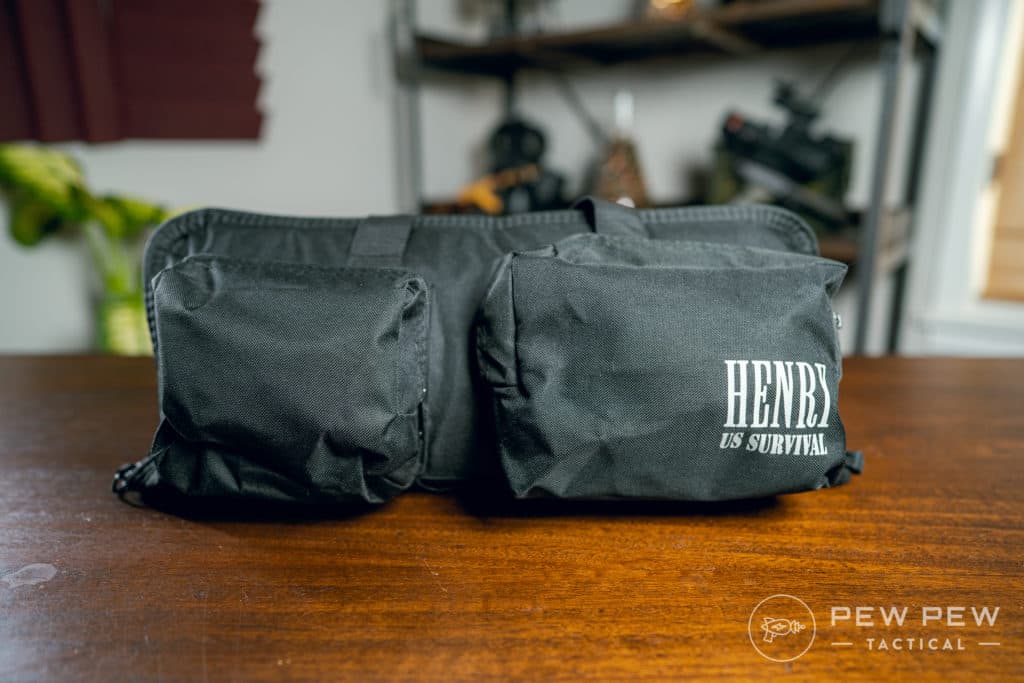

I had one AR-7 come with a Henry Survival Pack.

Henry US Survival Pack
Henry US Survival Pack

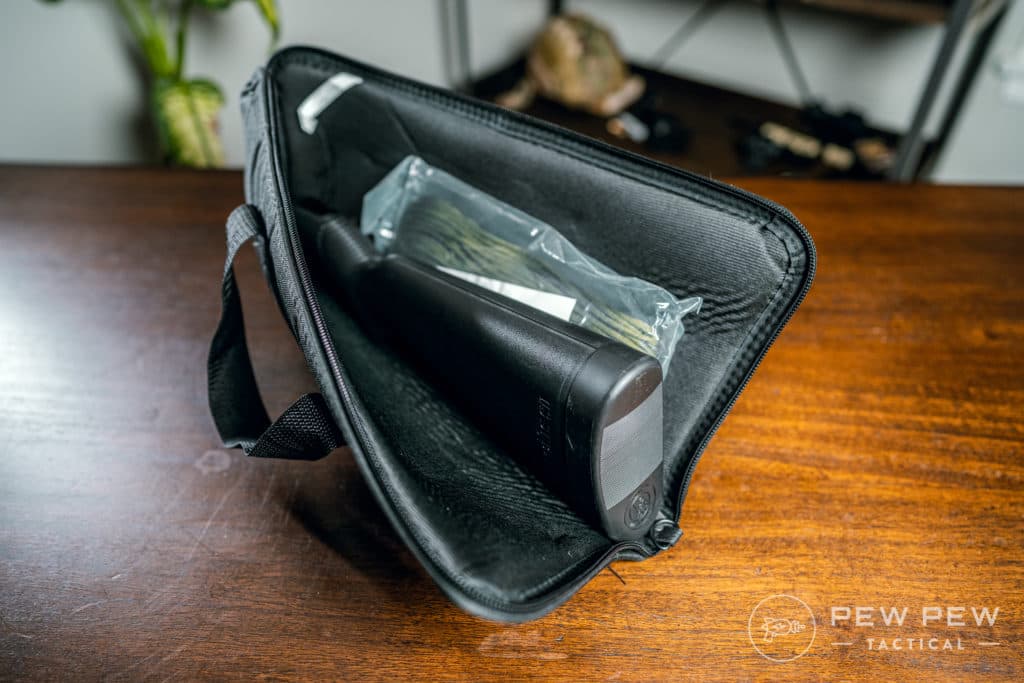

It easily holds an AR-7 and a bunch of included goodies. Plus with room to spare for more of your own things.

Survival Pack with Henry AR-7
Survival Pack with Henry AR-7

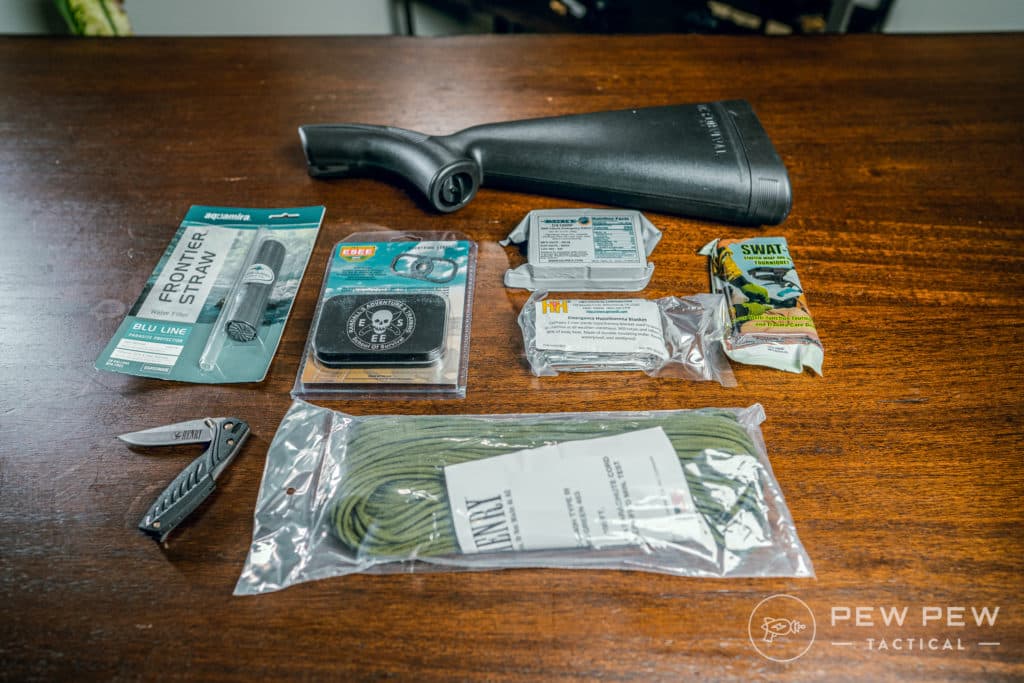

Included are:

  • 100 feet of 550 paracord
  • Firestarter
  • Survival bar
  • Water filtration straw
  • Tourniquet
  • Mylar blanket
  • Knife
Survival Pack Items
Survival Pack Items

Pretty nice and a good basis for your own survival kit.


  • Barrel Length: 16.125″
  • Rate of Twist: 1:16
  • Overall Length: 35″
  • Weight: 3.50 lbs.
  • Length of Pull: 14″
  • Two 8-Round Magazines Included

By the Numbers

Reliability: 4/5

No failures when I stuck with the good hot stuff but be prepared for a normal amount of issues with cheaper stuff.

Accuracy: 5/5

It’s a purpose-driven rifle and you’ll be able to hunt small game with it if needed. But it’s not meant for NRL22 competitions.

Ergonomics: 4/5

The thickness of its grip only takes a few mags to get used to. Otherwise you’re not normally shooting hundreds of rounds through this thing each range trip anyways.

Looks: 5/5

There’s three flavors and I really dig the camo.

Henry AR-7 in Viper Western Camo
Henry AR-7 in Viper Western Camo

Customization: 3/5

There’s scope rings and you can try to make it waterproof. But it’s well-designed for its purpose. Let it be or just buy more mags.

at OpticsPlanet

Prices accurate at time of writing

Prices accurate at time of writing

Bang for the Buck: 5/5

With a street price of around $230 it’s pretty great.

Overall Rating: 4.5/5


The Henry AR-7 Survival rifle is a nifty purpose-driven .22LR rifle that only weighs 3.5 lbs and stores itself in its buttstock. It has adequate accuracy and high reliability if given the proper ammo. A fun day at the range or a last ditch survival weapon if you bail out of a plane.
