Colt CAR-15 Models Explained: More Than a Carbine

When you think of the CAR-15, you probably see a carbine but what if we told you the CAR-15 is more than just a carbine; it's an entire family of firearms.

When I say the phrase CAR-15, what do you picture?

I’m betting it’s a commando, with a cami-painted face, with a short, AR-15 carbine that predates the M4.

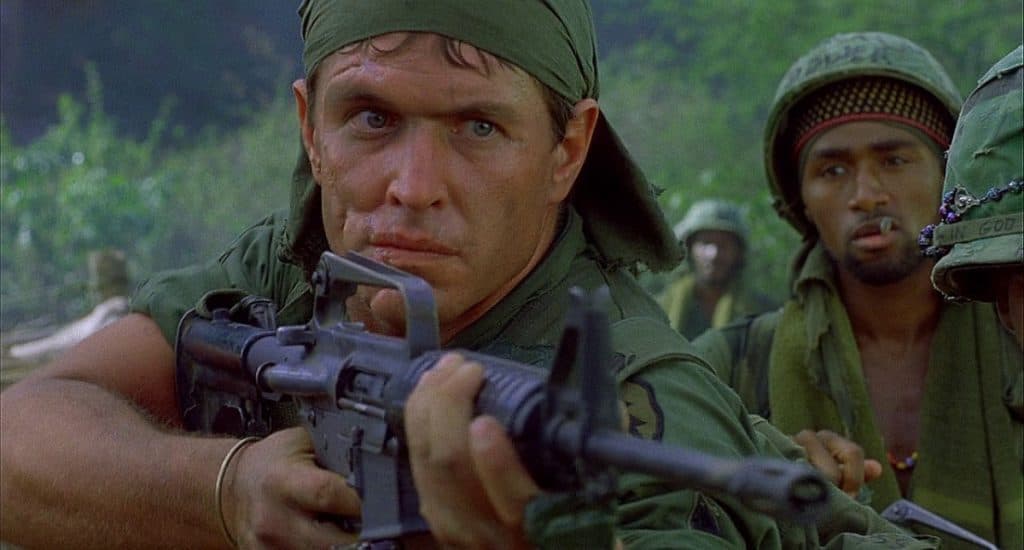

Tom Bergener's Staff Sergeant Barnes with his Colt Model 653P in Platoon
Tom Bergener’s Staff Sergeant Barnes with his Colt Model 653P in Platoon

Maybe you picture Tom Berenger or Willem Defoe from Platoon. Maybe even Heat and its famous shootout?

You imagine that short, retro-looking carbine, and I understand why. But what if I told you that the CAR-15 is more than a carbine?

The weapon you’re picturing in your head is the Colt Commando, aka the XM177, XM177E1, and E2 models. The CAR-15 is much more than a carbine; it’s an entire family of firearms.

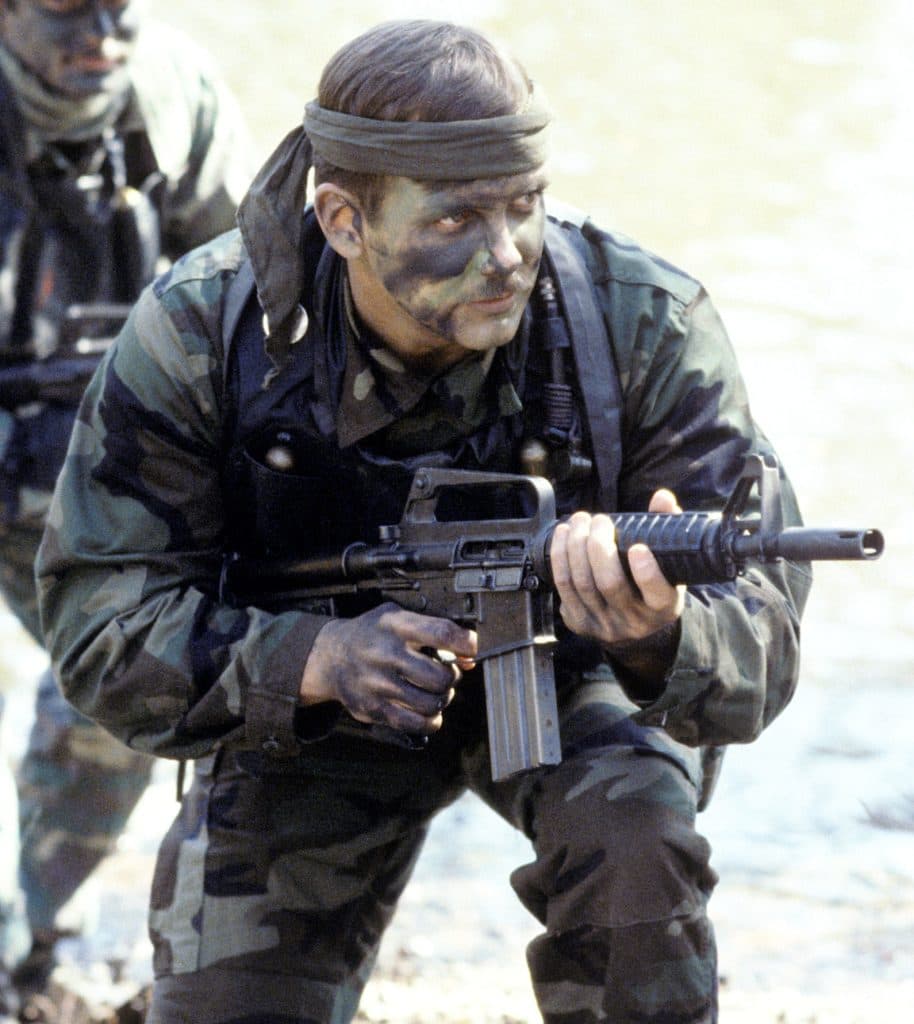

US Navy Seal with a Colt Commando
US Navy Seal with a Colt Commando (Photo: JO1 (SS) Peter D. Sundberg)

And today, we’re going to run through the CAR series, dive into what sets it apart, and talk about the models you’ll see.

So keep reading!

Table of Contents

Loading...

Where CAR Comes From

Armalite created the AR-15 — AR stands for “Armalite rifle” — and the ole AR-15 has become one of the most famous and widely used designs in the world. It wasn’t always that way.

Armalite created the weapon in 1958 at the request of General Willard G. Wyman.

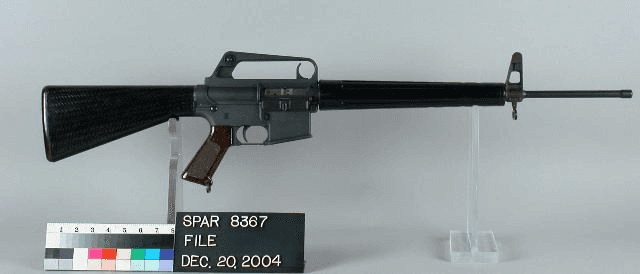

Early Armalite AR-15
Early Armalite AR-15 (Photo: Springfield Armory National Historic Site Archives, United States National Park Service)

Teams of five to seven soldiers armed with the Armalite had the same firepower as an 11-man squad armed with m14s. The AR-15 proved to be three times more reliable than the M14, and soldiers armed with the M16 could carry three times as much ammo.

Even so, the Army Chief of Staff vetoed the AR-15 in favor of the M-14. Why? Because muh 30 caliber and muh wood stock!

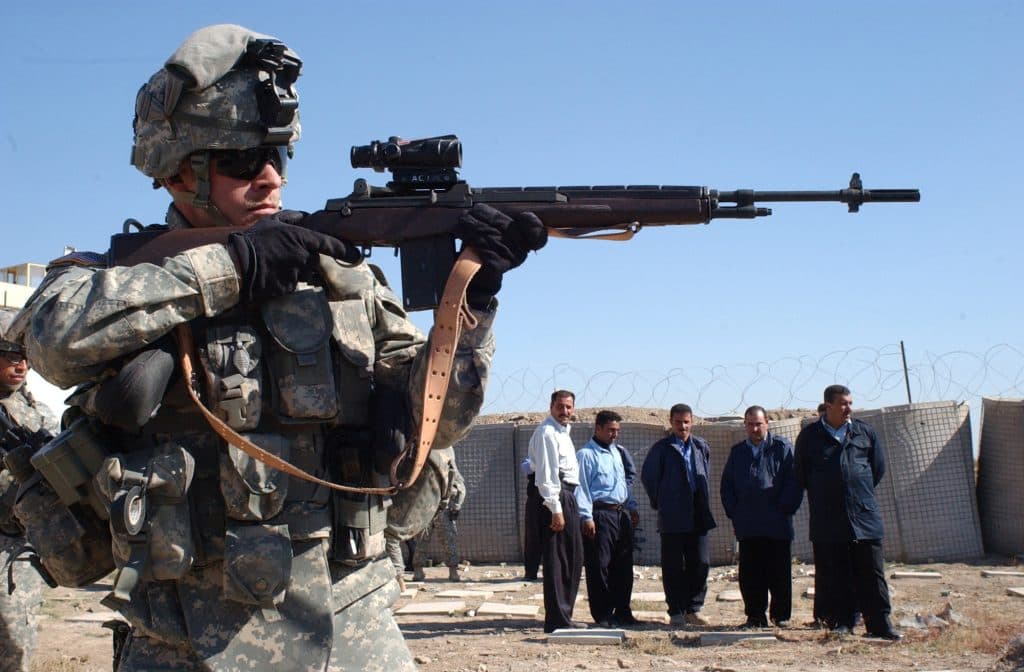

U.S. Army Sgt. 1st Class Richard Wiley demonstrates shooting an M-14 rifle to Iraqi Highway Patrol (IHP) police officers during close-quarters marksmanship Nov. 17, 2006, at the Al Samud IHP Station in Iraq. Wiley is a platoon sergeant with Alpha Company, 3rd Battalion, 509th Infantry Regiment, Fort Richardson, Alaska. (U.S. Army photo by Spc. Olanrewaju Akinwunmi) (Released)
U.S. Army Sgt. 1st Class Richard Wiley demonstrates shooting an M-14 rifle to Iraqi Highway Patrol (IHP) police officers in 2006.

The Army would gladly stick to tradition even if it meant soldiers being armed with an inferior weapon. Armalite didn’t take that well, and they already had financial difficulties. With that in mind, they did what seemed prudent and sold the rights to the AR-10 and AR-15 to Colt.

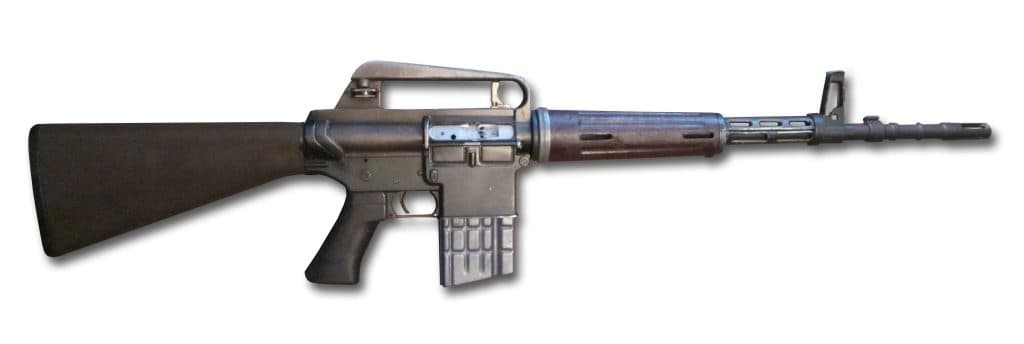

Armalite AR-10
Armalite AR-10 (Photo: Wikimedia Commons)

Colt wanted to rebrand the AR-15. They wanted to turn it into a Colt product with Colt branding. Thus the AR-15 became the Colt AR-15 rifle, aka the CAR-15.

That’s not all they did.

Admittedly they made some changes that were vital to today’s success of the AR-15. They redesigned it to be easier to mass-produce and relocated the charging handle from under the carry handle to the rear of the receiver.

This won’t be a history of the AR-15, the M16, or the rifle, but I want to give Colt some credit.

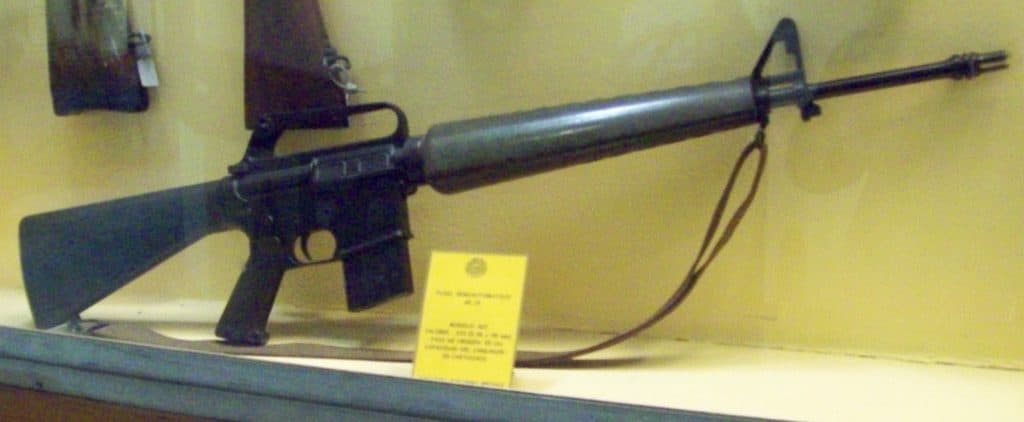

Early M16
Early M16 (Photo: Wikimedia Commons)

The CAR-15 Family

Colt quickly realized that the CAR-15 and AR-15, in general, could be a modular family of rifles, not just a singular design.

In 1965 Colt began marketing the CAR-15 as a family of firearms. The United States military’s adoption of the Colt CAR-15 Model 603 and 604 would be the match that lit the fire.

1. CAR-15 Models 603 and 604

The U.S. Army adopted the Model 603 while the Airforce adopted the 604. The Model 603 featured a forward assist and case deflector, and the 604 did not.

These rifles are what we now consider the earliest variants of the M16.

The 603 was known as the XM16E1, with X being the signifier for experimental, then later as the M16A1. And the Airforce called the 604 the M16.

Both guns featured the lightweight pencil barrel 20 inches long with a 1:12 barrel twist.

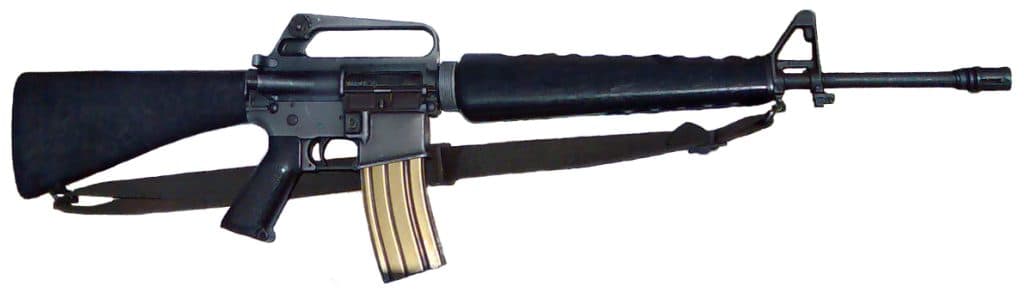

M16A1
M16A1 (Photo: Wikimedia Commons)

At the time, these rifles were revolutionary.

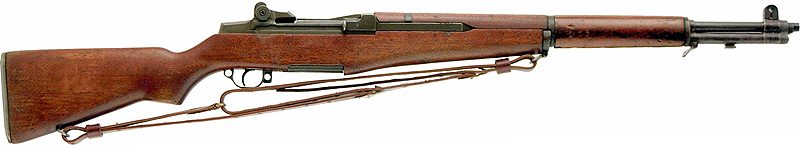

Remember, this isn’t that far removed from the wood stock and blued steel M1 Garand and later M14. CAR-15 rifles were lighter than Thompson SMGs and fired a much more potent round.

1699
at Gunprime

Prices accurate at time of writing

Prices accurate at time of writing

Available Coupons

The goal of the M14 was to replace the BAR, the Thompson/M3, and M1 Garand, but it gave us a compromised mess. And the M16 accomplished the task the M14 was designed for and did so with style and gusto.

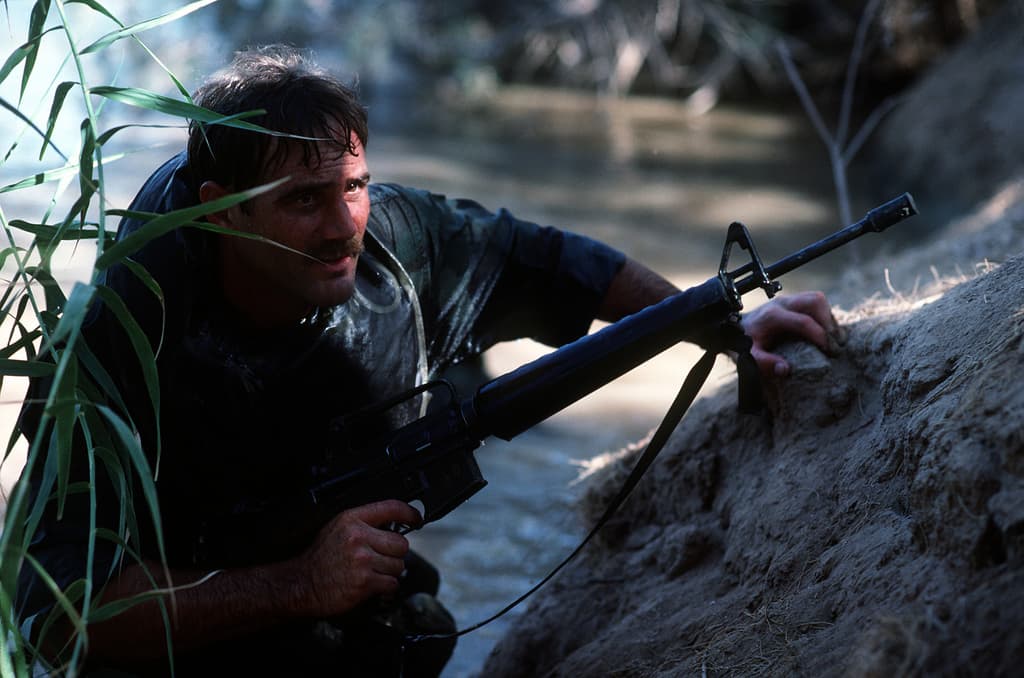

US Navy Seal armed with an M16A1
U.S. Navy Seal armed with an M16A1 (Photo: JO1 Jenkins)

The CAR-15 rifle’s use of polymer and aluminum started a modern trend that’s guided rifle design to this day.

While the Army and Airforce used what was essentially the same gun, the military as a whole benefited from simpler logistics, and everyone would have the same rifle regardless of branch.

The M16 would become standardized in one pattern.

Marines practice firing M16A1 rifles off the stern of an amphibious ship prior to their arrival in Beirut, Lebanon, to participate in a multinational peacekeeping operation.
Marines practice firing M16A1 rifles off the stern of an amphibious ship prior to their arrival in Beirut, Lebanon, to participate in a multinational peacekeeping operation.

Of course, the forward assist and case deflector would be standard, and the M16A1 would essentially be a slightly modified Model 603.

These rifles are the building blocks on which all M16 variants would be built.

2. CAR-15 Heavy Assault Rifles

The CAR-15 Model 606 series would become infantry automatic rifles.

Colt marketed these guns as support weapons in a vein similar to the old BAR, except in an M16-style format. This included the .223/5.56 caliber offering.

The CAR-15 Heavy Assault Rifle didn’t have a whole lot of success at the time, but it’s not like the concept of an Infantry Automatic Rifle died.

My beloved United States Marine Corps famously adopted the M27 IAR to replace the SAW, and it’s currently the combat arms service rifle.

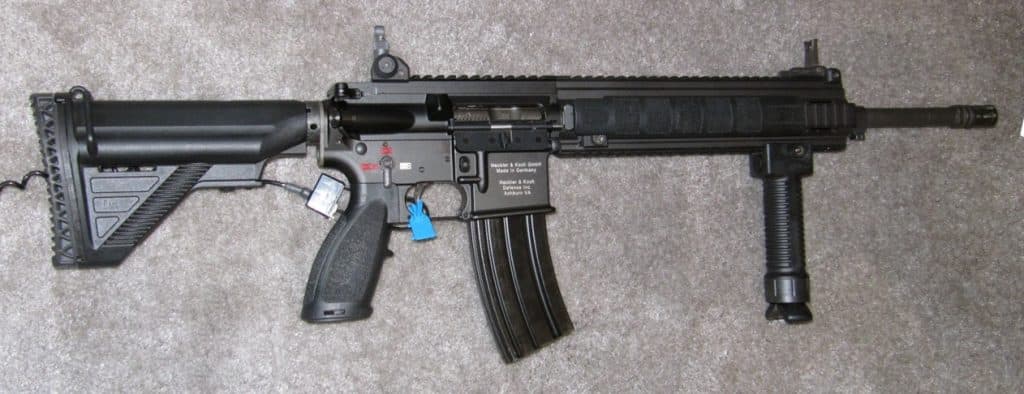

M27 IAR on display at Shot Show (Photo Steve at The Firearm Blog)
M27 IAR on display at Shot Show (Photo: Steve at The Firearm Blog)

Colt’s 606 series is broken into M1 and M2 models, and both have standard and A and B configurations.

The A configurations of these guns featured a forward assist design, while the B configurations featured a four-position selector that allowed the user to choose between burst and full-auto.

With the M1, we got a heavy profile barrel and a bipod attachment. Colt designed the gun to use 30-round magazines to lay down a little more suppressive fire than the stock standard 20-rounders. Besides the magazine, bipod, and heavy barrel, it wasn’t too different from the M16.

Things get groovy with the M2.

I’d argue the M2 is a light machine gun rather than a heavy assault rifle. The Colt CAR-15 Model 606 M2 fed from a belt of ammunition with an attached drum, very much like the Russian RPD.

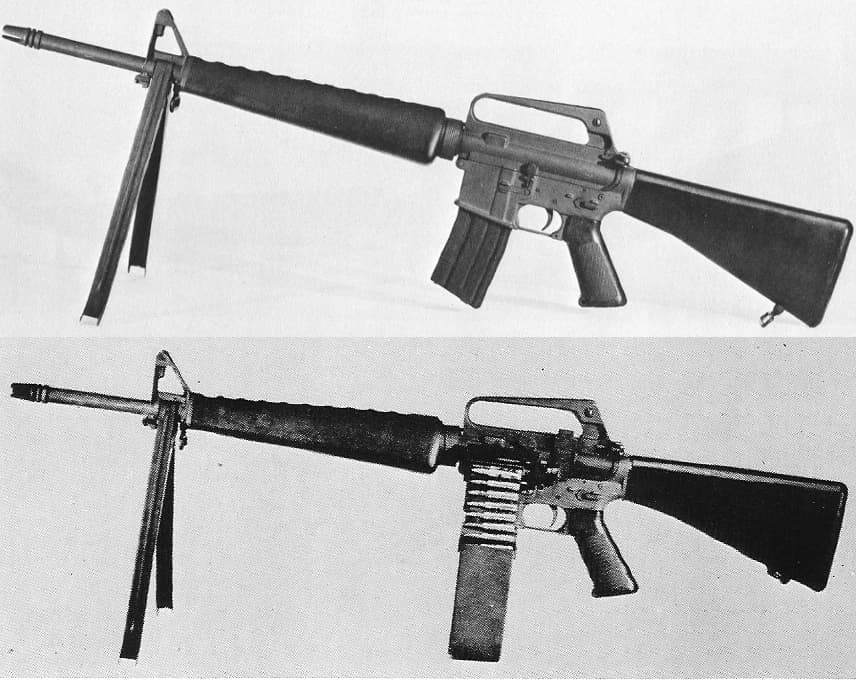

CAR-15 Heavy Assault Rifle M1 vs M2
CAR-15 Heavy Assault Rifle M1 vs M2

On top of the belt-fed design, the weapon featured a heavy barrel and bipod attachment for supported sustained fire. It was very lightweight for a belt-fed design and impressively compact for the time.

The weight of both guns unloaded was reportedly 7.5 pounds. At the time, the M60 was the belt-fed infantry support weapon, and it weighed 23 pounds and some change.

Sadly, neither model saw adoption or purchases.

Colt continued to pursue the idea of a squad automatic rifle with the M16A1 HBAR and Colt LMG with limited success.

3. CAR-15 605 Carbine

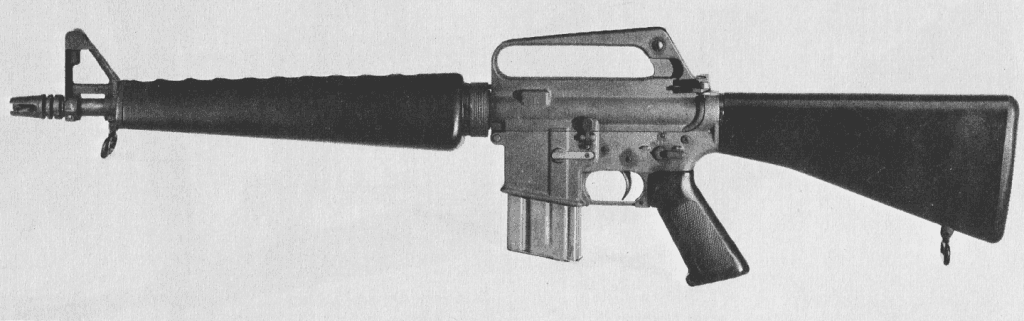

Colt CAR-15 605
Colt CAR-15 605

Finally, we’re getting to the carbine series, but it’s still not the CAR-15 Carbine you probably picture.

The 605 was the product of someone at Colt saying, “let’s cut the barrel off at the front sight base and see what we get!”…Well, that might be an oversimplification.

Combat operations at Ia Drang Valley, Vietnam, November 1965. Major Bruce P. Crandall’s UH-1D helicopter climbs skyward after discharging a load of infantrymen on a search and destroy mission.

Vietnam brought Americans to thick jungles and made helicopters the forefront of the war effort. This created tight spaces, and the idea of producing a short M16 to deal with these tight spaces came to life in the 605.

Colt trimmed the barrel back to 15 inches and cut it off at the front sight base. This produced the earliest version of what we call the dissipator.

In limited numbers, these carbines made their way to Vietnam and found a way with special operations.

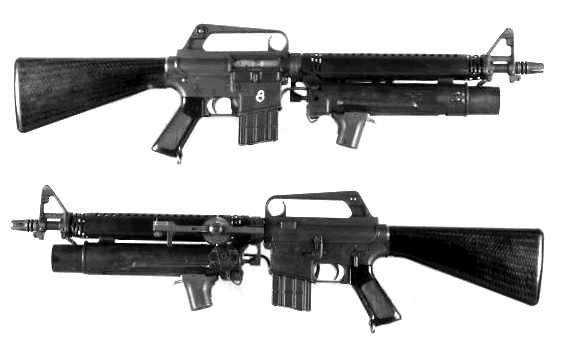

Colt CAR-15 605 Dissipater
Colt CAR-15 605 Dissipater

These special operations troops liked the shorter rifle for dealing with dense jungles. The problem was that the Colt engineers couldn’t figure out how to get the weapon to cycle reliably. Less barrel meant less dwell time, and that caused reliability issues.

One cure was adding a suppressor, which many Spec Ops bubbas did. A suppressor doesn’t increase dwell time but throws more gas rearward.

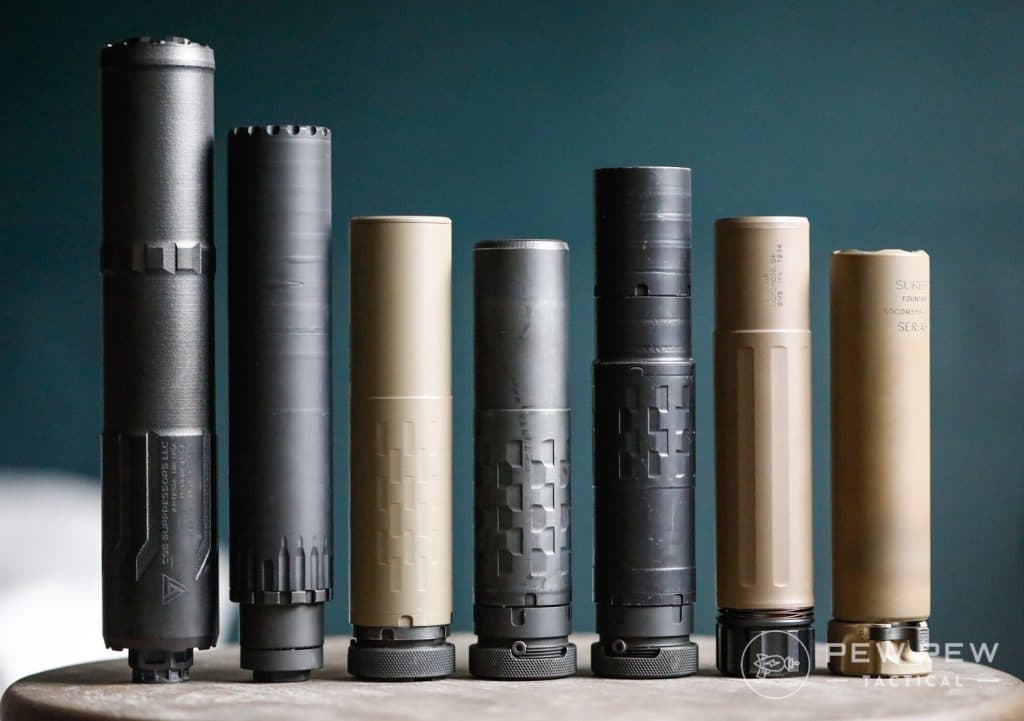

.30 Cal and 5.56 Suppressors
.30 Cal and 5.56 Suppressors

Also, the shorter barrel combined with the suppressor made for an efficient weapon.

However, it wasn’t good enough, and Colt killed it for a real carbine.

4. CAR-15 Model 607

When I say a real carbine, I mean a submachine gun. Okay, not a submachine gun as we know it, but Colt called it the CAR-15 Submachine gun. Colt first designed a ‘submachine gun’ variant in 1959.

This Tanker model went nowhere but introduced the idea of a very short M16 with a collapsing stock. In 1965 the Colt 607 arrived with the intent of selling it to special operations, commandos, and vehicle crewmen.

They chopped the barrel to 10 inches and used an interesting, modified M16 stock that could collapse, but it’s only a two-position stock. These days we are spoiled with those fancy six positions.

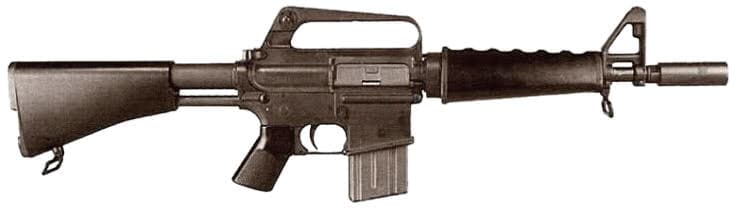

CAR-15 SMG 607
CAR-15 SMG 607

It’s worth noting that these originally came with three-prong flash hiders, but the massive concussion and muzzle blast were just too much for most shooters.

Colt introduced a 3.5-inch and later 4.5-inch ‘moderator’ muzzle device to reduce the concussion and muzzle flash while increasing back pressure.

These guns were never mass-produced, and only 50 were made for the SEALs and Green Berets. They were made from spare parts, and the originals lacked forward assists. The later 607A models feature 603 uppers with forward assists.

Once you had a Colt SMG with a 4.5-inch long moderator, you have to start asking, why not just use a carbine with a 14.5-inch barrel?

5. CAR-15 Model 610

I feel like the Model 610 is the ODB of Colt CAR-15 rifles. ODB from the Wu-Tang clan famously has 12 nicknames, with my favorite being Knifey McStab.

Besides being commonly referred to as the CAR-15, it also gained the 610 monikers on top of the Colt Commando, the XM177, and the GAU-5/A.

Like the original CAR-15 SMG, the gun had a 10-inch barrel with a 4.25-inch moderator.

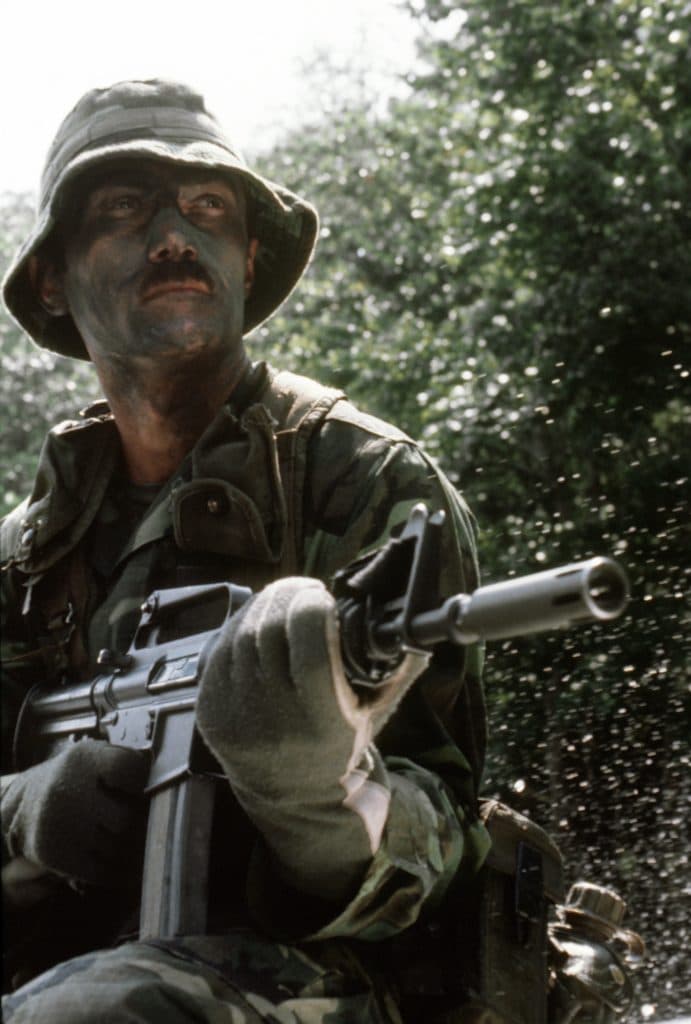

One of combat control team members, armed with a GAU-5 assault rifles, maneuvers down a river by a boat during training.  The team members are from the 1st Special Operations Wing.
One of combat control team members, armed with a GAU-5 assault rifles, maneuvers down a river by a boat during training. The team members are from the 1st Special Operations Wing. (Photo: Staff Sergeant Ernest H. Sealing)

Colt simplified the stock with a 2-position aluminum stock that begins to resemble the M4 stock we know and love.

The 610 lacks a forward assist, but a 610B existed with a four-position selector, but the military never purchased it. Most of the military called it the XM177, but the Air Force is a special child, and they called it the GAU-5/A.

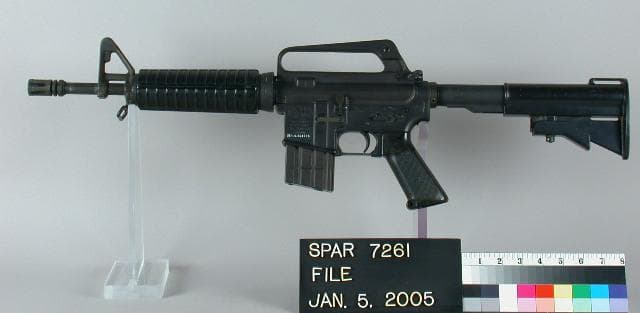

USAF GAU-5/A
USAF GAU-5/A

The Army purchased over 2,800 models and was sent to numerous special operations forces.

6. CAR-15 Models 629 and 649

In 1967 Colt extended the barrel to 11.5 inches and called these guns the 629 and 649. The 629 has a forward assist, and the 649 does not.

A slightly longer barrel did a few things. It reduced noise and muzzle flash and allowed the Colt XM148 under-barrel grenade launcher to fit. Colt installed a metal boss onto the moderator for the launching of rifle grenades as well.

MACV-SOG obtained over 500 of the model 629, and these became known as the XM177E2.

The entire short carbine series had issues with tracer rounds, barrel fouling, and effective range and accuracy. Again, I’m surprised no one looked at the 11.5-inch barrel with a 4.25-inch moderator and thought maybe a longer barrel would work.

7. CAR-15 Model 608

Last but not least is the Colt 608. Well, it might be the least produced.

The 608 was Colt’s attempt at creating a survival rifle for aircrews. When you bail out over enemy territory, you might find yourself feeling less than stellar armed with a handgun, but you don’t have room for a complete rifle.

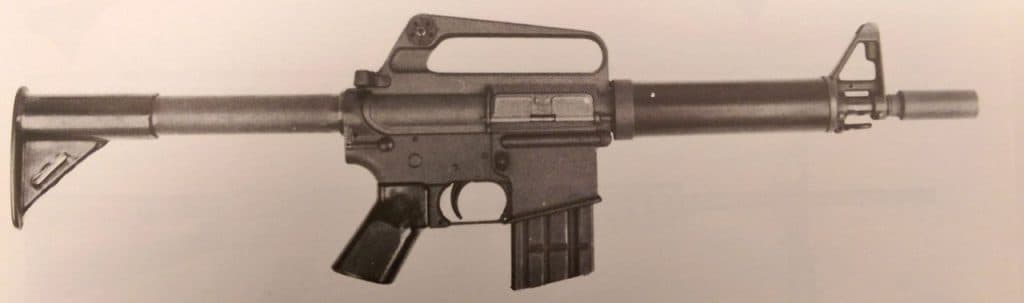

CAR-15 Model 608 Survival Rifle
CAR-15 Model 608 Survival Rifle

Colt’s 608 was for you. The AR design is already somewhat naturally a takedown weapon, so it splits in half and drops into two pieces.

Colt kept the 10-inch barrel from the SMGs but ditched the moderator for a spoon-style muzzle device. The grip got the chop to make it smaller and has a slightly shorter fixed aluminum stock.

Colt used a unique handguard not seen on other models in the Commando series. The total overall length was 29 inches, and it could be packed with four 20-round magazines under the pilot’s seat.

Sadly, only a few prototypes got off the ground.

Final Thoughts

Colt abandoned the CAR moniker a bit after Vietnam. The idea of the Modular Weapon Concept was ditched, but Colt continued developing carbine variants of the M16 family.

The gun everyone calls the CAR-15 is the M16 Carbine.

What I Carried M16A4 Clone (1)

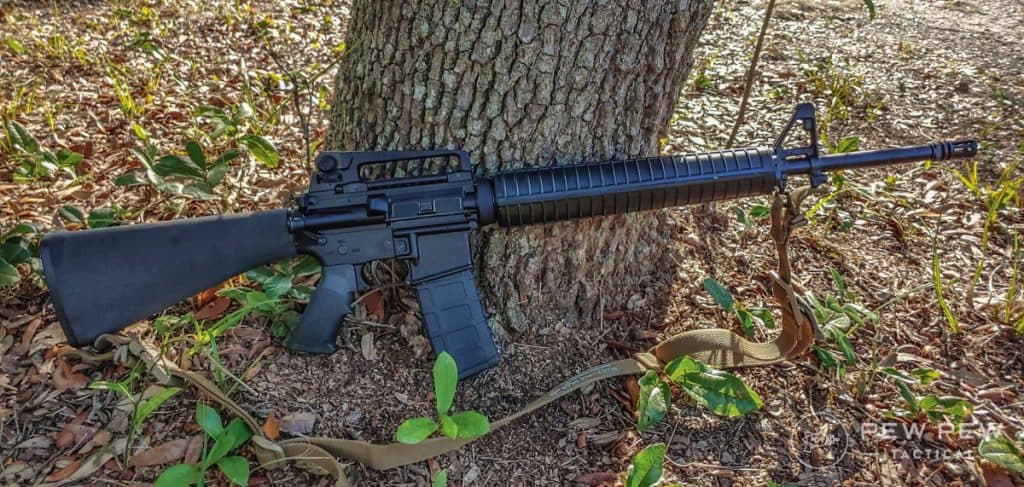

What I Carried M16A4 clone

These guns featured a 14.5-inch barrel because someone realized a 10-inch barrel with a 4-inch moderator was stupid. These went by the model numbers 651, the 652, the 653, and 654.

Predictably, over time these morphed into what we know as the M4 carbine, one of the most dominant and widely spread weapon platforms of all time.

Modern M4(Photo: Petty Officer 3rd Class Gregory Harden)

The CAR-15 is more than a carbine. It’s a fascinating part of arms design.

What’s your favorite CAR-15 model? Drop it in the comments below. Interested in some milsurp guns? Check out our Guide to Military Surplus Guns.
