6 Best EOTech Holographic Sight Models [Hands-On]

Newer vs Classic EOTechs
Not sure which EOTech model to get? Cut through the confusion by answering a few questions and you'll find out the perfect hologrpahic sight for your task.
We review products independently. When you buy through links on our site, we may earn a commission to help support our testing. Learn more.
JUMP TO SECTION Jump To:

    Not sure which EOTech holographic weapon sight to get?

    There are a lot of models with some confusing naming conventions…we’ll help clear it all up.

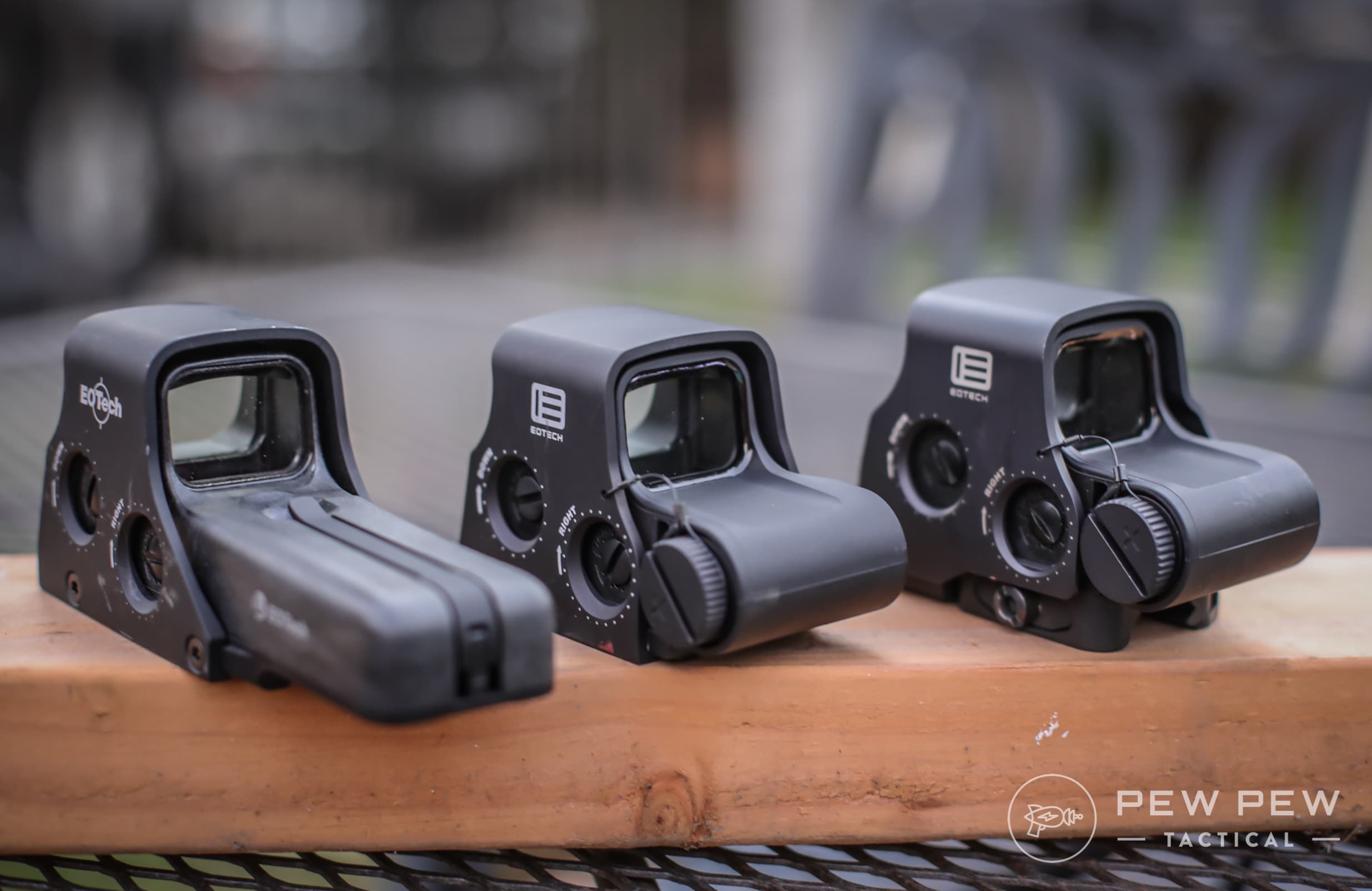

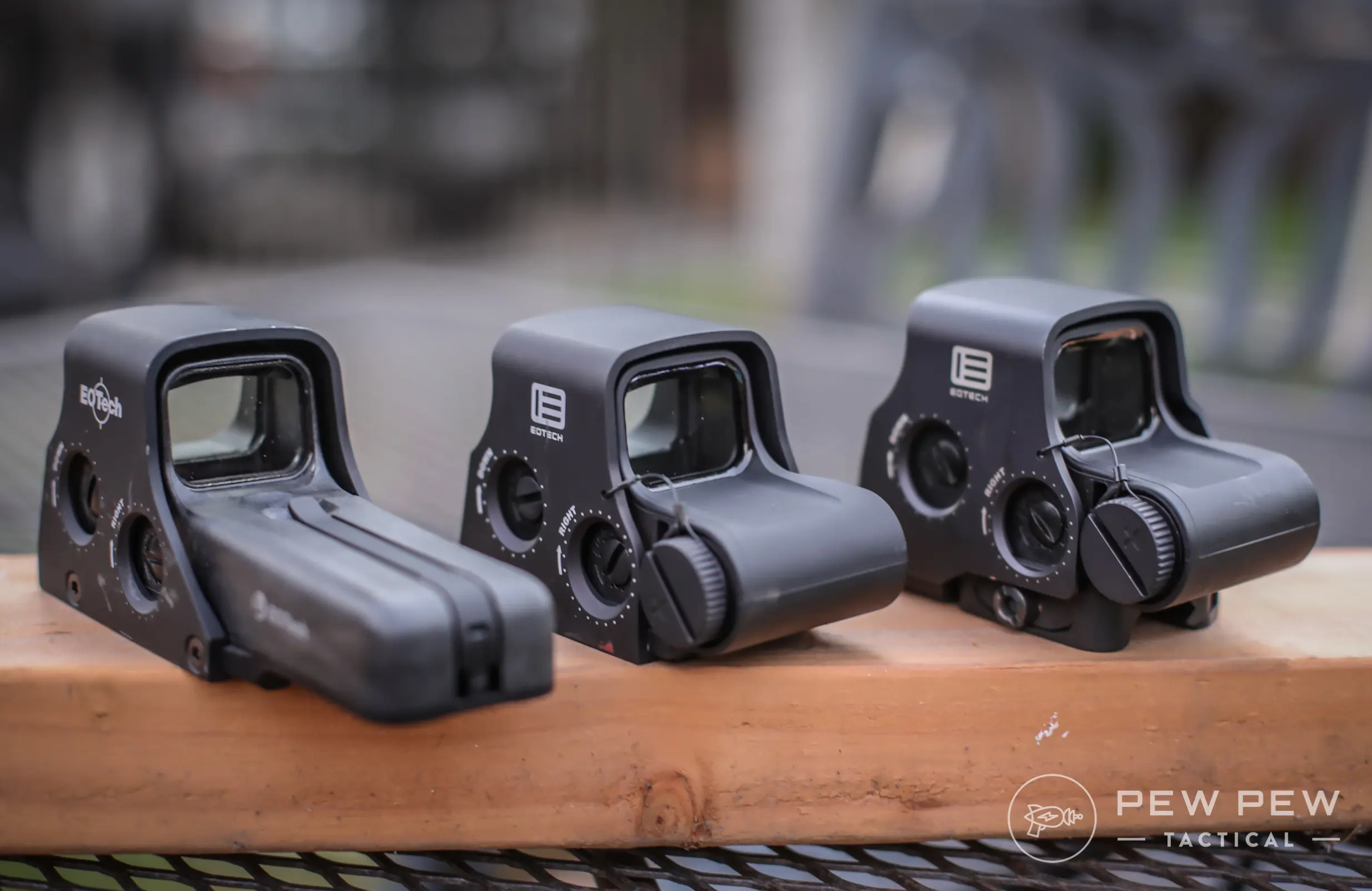

    Three EOTechs, Back
    Three EOTechs, Back (L to R: Model 512, XPS2-0 Green, EXPS2-0)

    By the end, you’ll know the perfect EOTech model for your end-use.

    But first…if you aren’t caught up on holographic sights vs red dots sights…check out our comparison to make sure you know the pros/cons.

    If that helped, please subscribe to our YouTube channel since we’re adding new videos every week!

    Now let’s get on with the best EOTech models!

    THE QUICK LIST

    1. NIGHT VISION CAPABILITY

      EOTech EXPS3-2

    2. BEST GREEN RETICLE

      EOTech XPS2-0GRN

    Table of Contents

    Loading…

    Best EOTech Models

    1. EXPS2-0

    My favorite pick and what I run on my competition PCC rifle (Best Pistol Caliber Carbines) is the EXPS2-0.

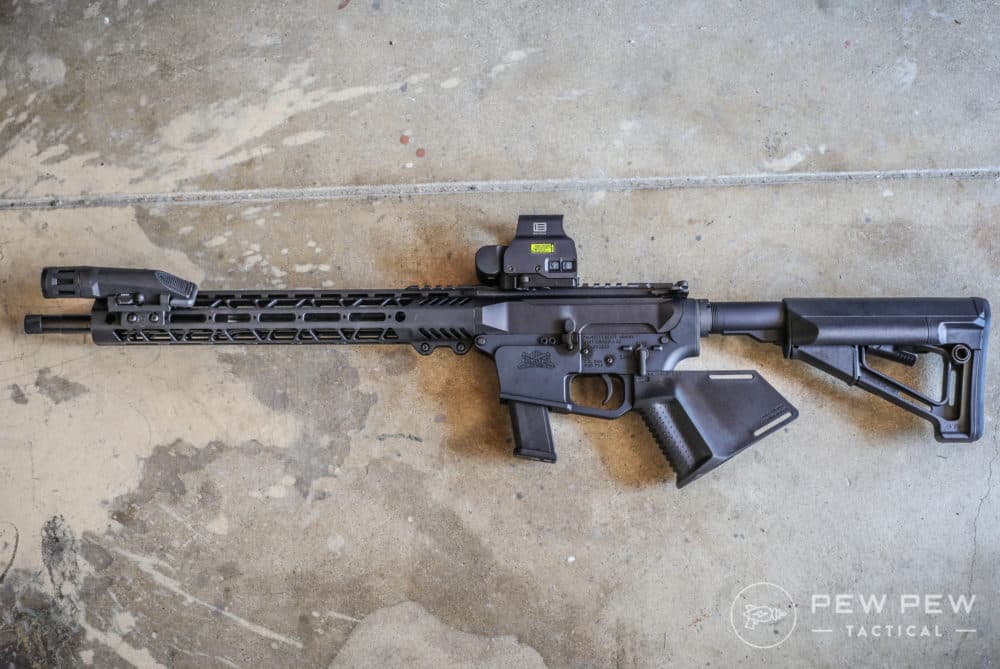

    PSA 9mm PX-9
    PSA 9mm PX-9
    • Newer short model
    • QD Mount
    • Standard reticle

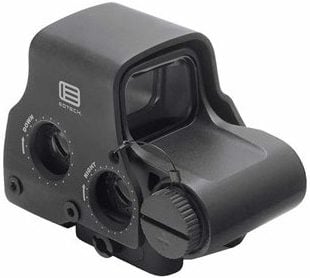

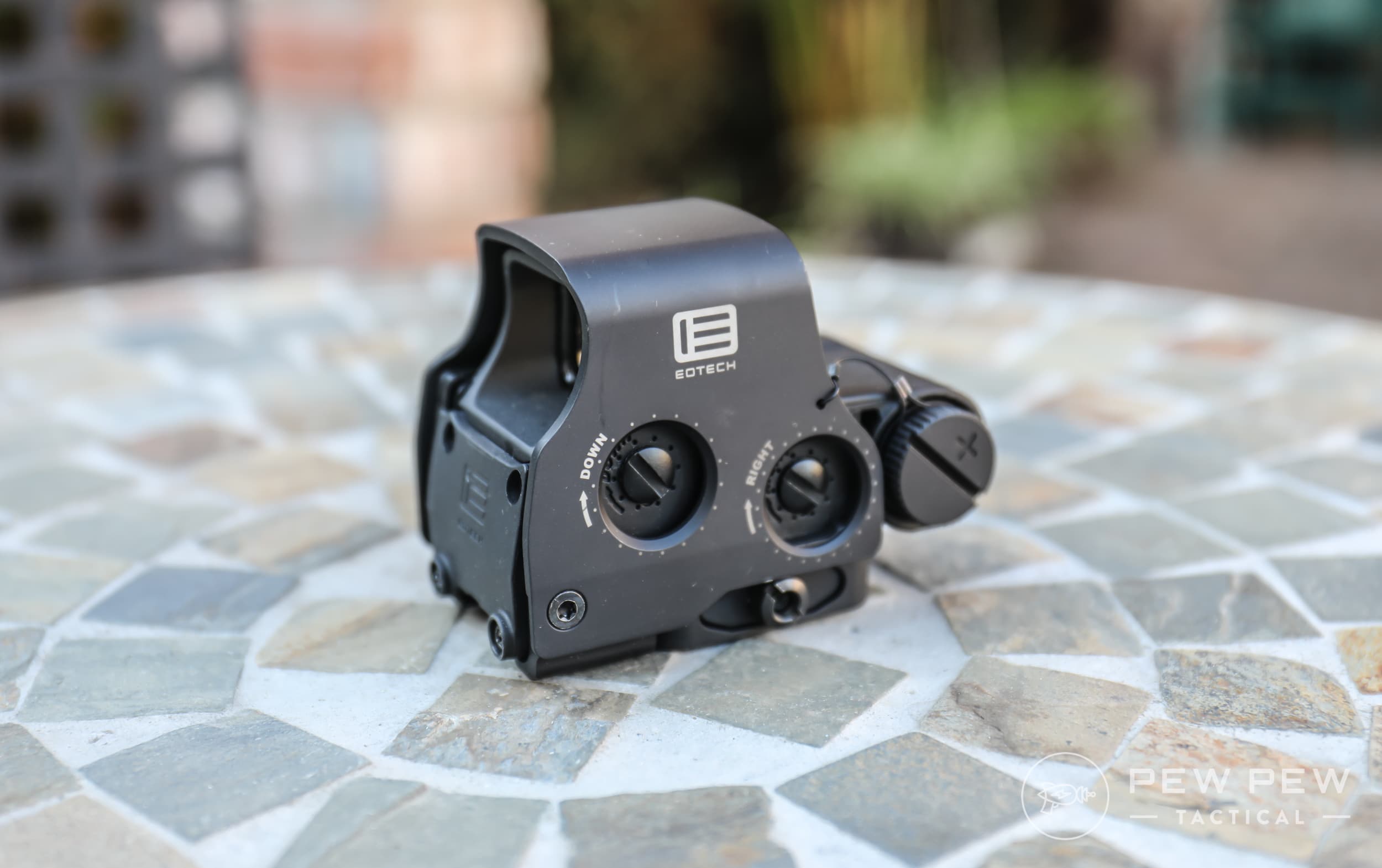

    EOTech EXPS2-0
    EOTech EXPS2-0

    Not as heavy, easy to take on and off while maintaining zero, able to easily accept a magnifier because the buttons are on the side, and comes with the fast standard reticle.

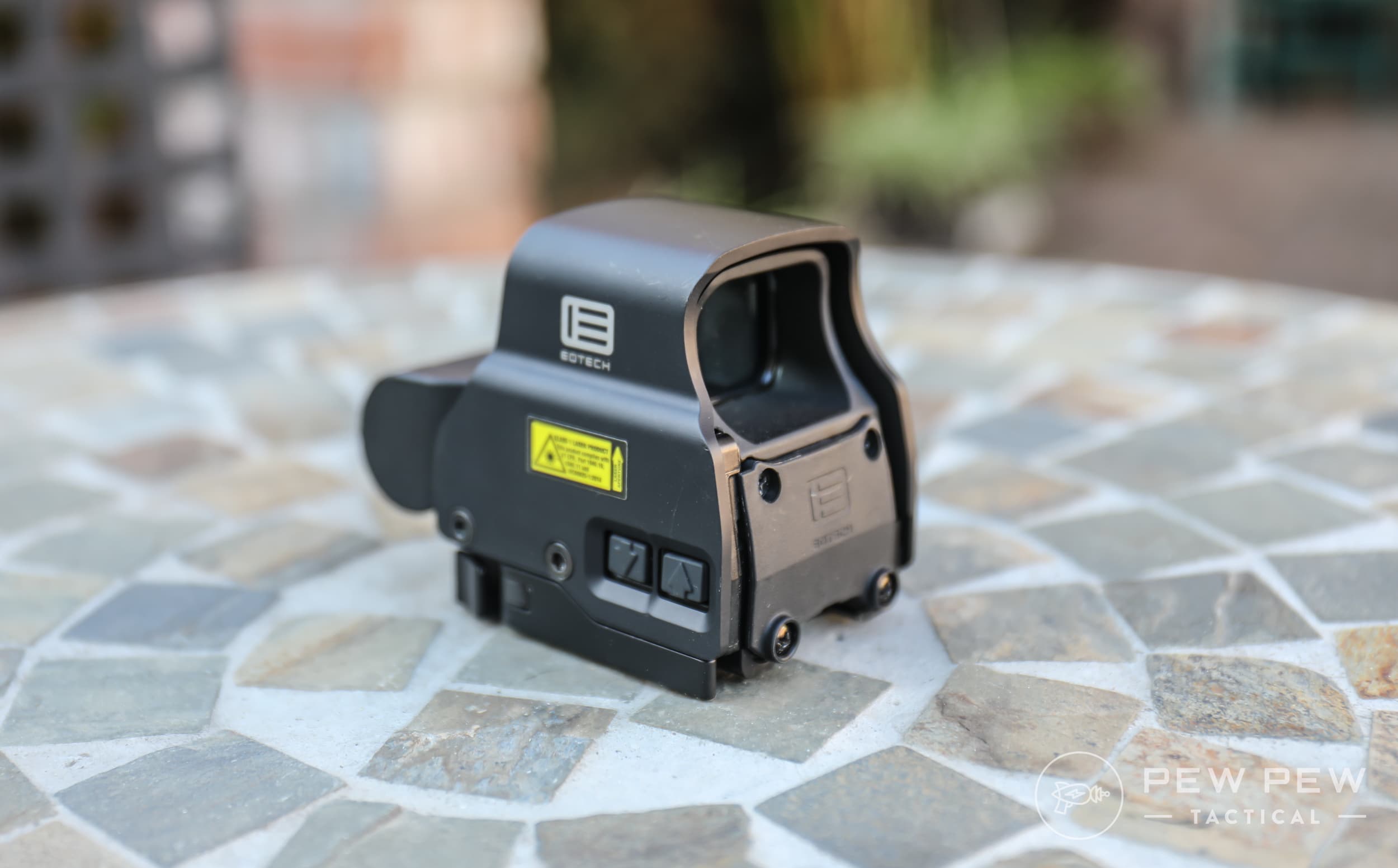

    EOTech EXPS2-0, Buttons
    EOTech EXPS2-0, Buttons

    We recently had a high-end optics torture test and included an EXPS holosight.

    Water submersion…easy.

    Submersing Optics in Water
    Submersing Optics in Water

    Cooling it from -40 degrees to heating up to 140 degrees? It held zero.

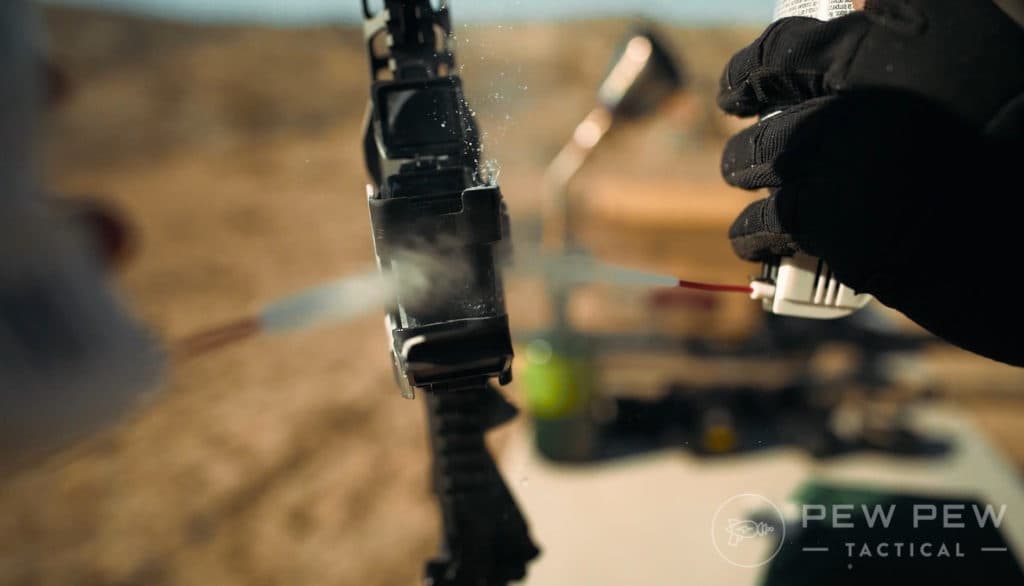

    Spraying Sig Sauer Romeo 8 with Compressed Air Can
    Spraying Sig Sauer Romeo 8 with Compressed Air Can

    We then shot it…starting from rat shot to .410 #9 birdshot, 12ga #7.5 birdshot, and finally .22 LR Mini-Mag where it finally sort of failed.

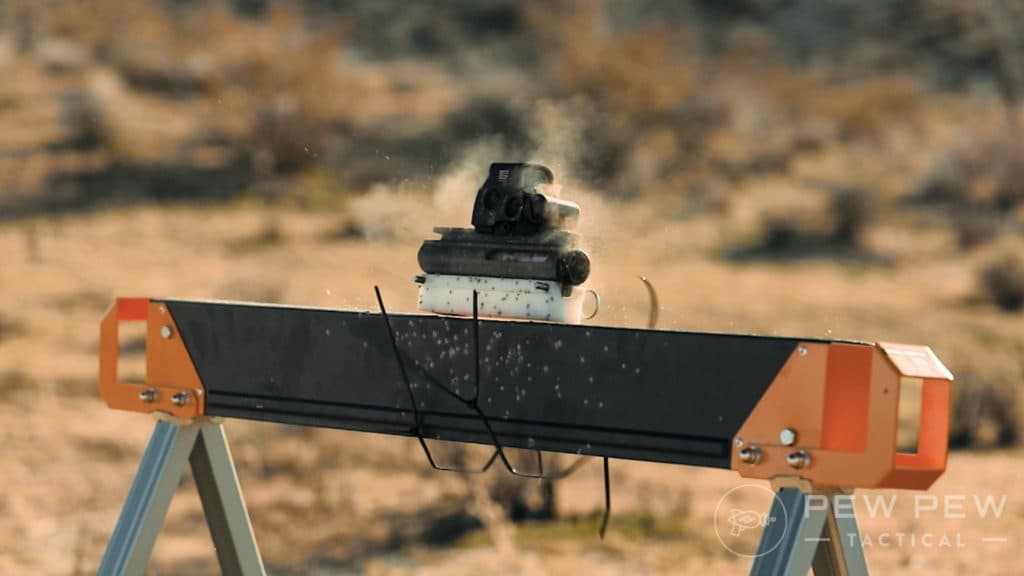

    EOTech EXPS 3 12ga Birdshot
    EOTech EXPS3 12ga Birdshot

    The glass cracked in the front… but due to the holographic tech…it was still serviceable but we found it likely had a few shots left since glass was falling out all over the place.

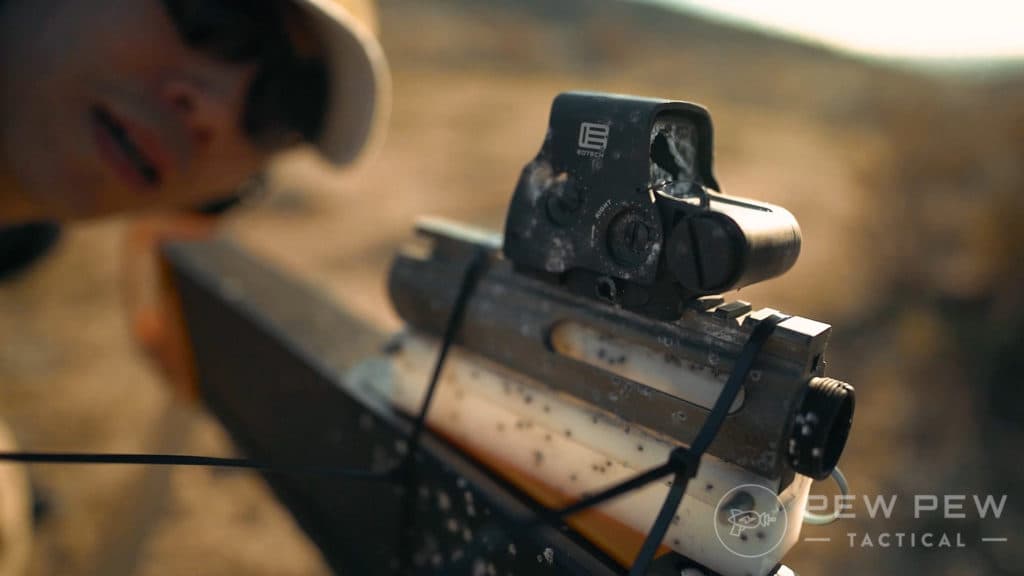

    EOTech EXPS 3 Corpse
    EOTech EXPS 3 Corpse

    But don’t worry…practically every other optic failed on the Mini-Mag. See more damage in the full High-End Optics Torture Test article.

    And that’s another reason why we love EOTechs…and the EXPS line.

    What’s your take on the EXPS2-0? Rate it below!

    Readers’ Ratings

    5.00/5 (1568)

    Your Rating?

    2. Model 512

    My entry-level pick if you want to enter the world of holographic weapon sights is also EOTech’s best-seller….the Model 512.

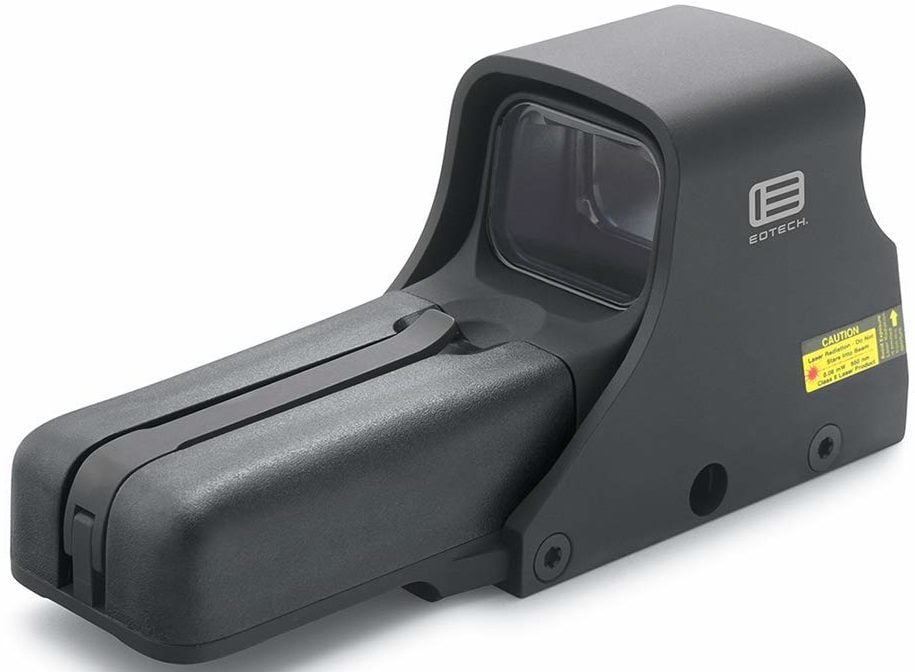

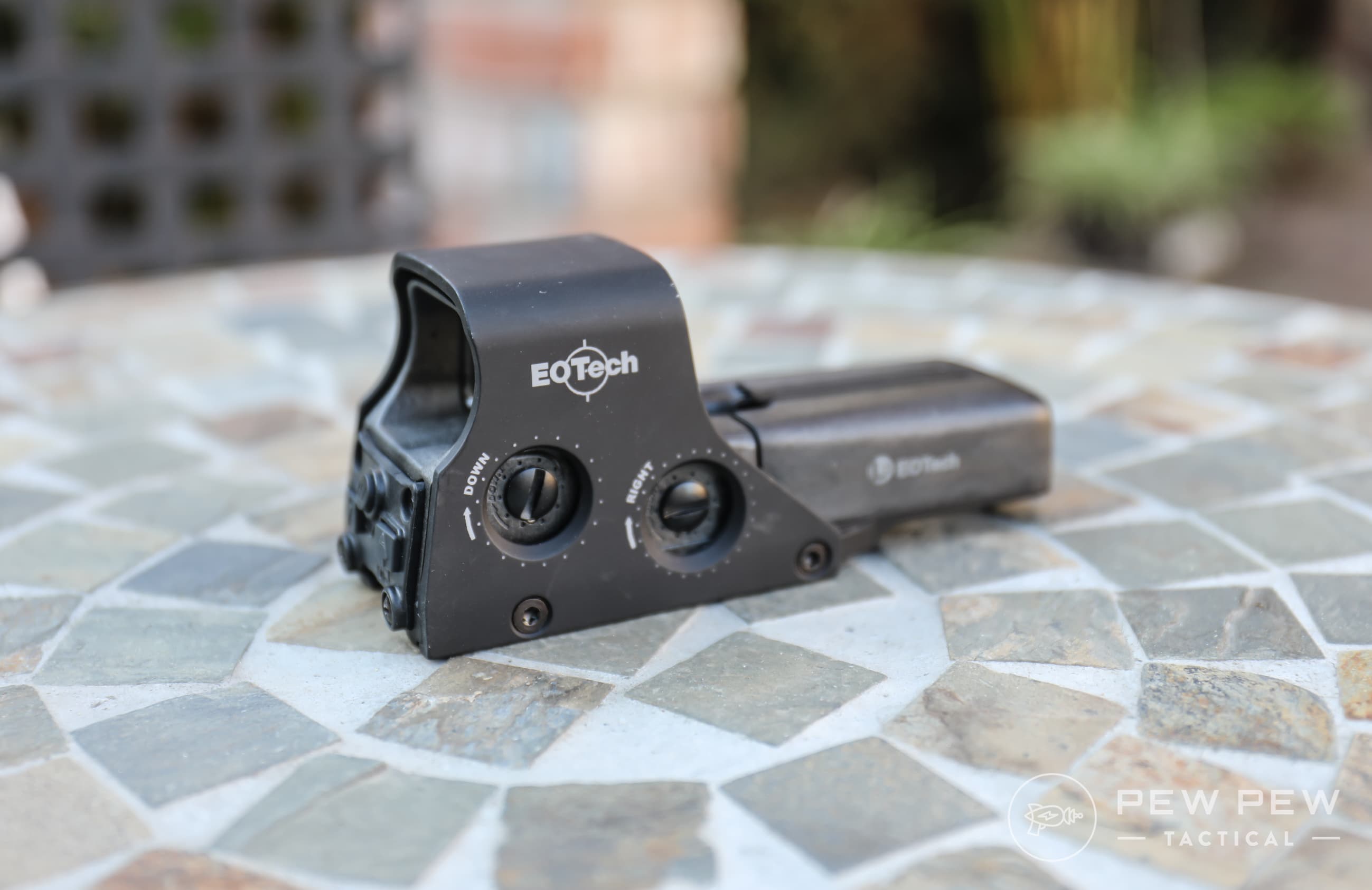

    EOTech Model 512
    EOTech Model 512
    • Classic AA battery design
    • Screw mount
    • Standard Reticle

    No frills if you don’t mind a few more ounces with the classic design and a slower screw mount.

    But if you don’t plan on moving around your optic, that last point doesn’t matter that much.

    3. XPS2-0

    We go back to the newer/smaller design and go with the screw mount system on the XPS2-0.

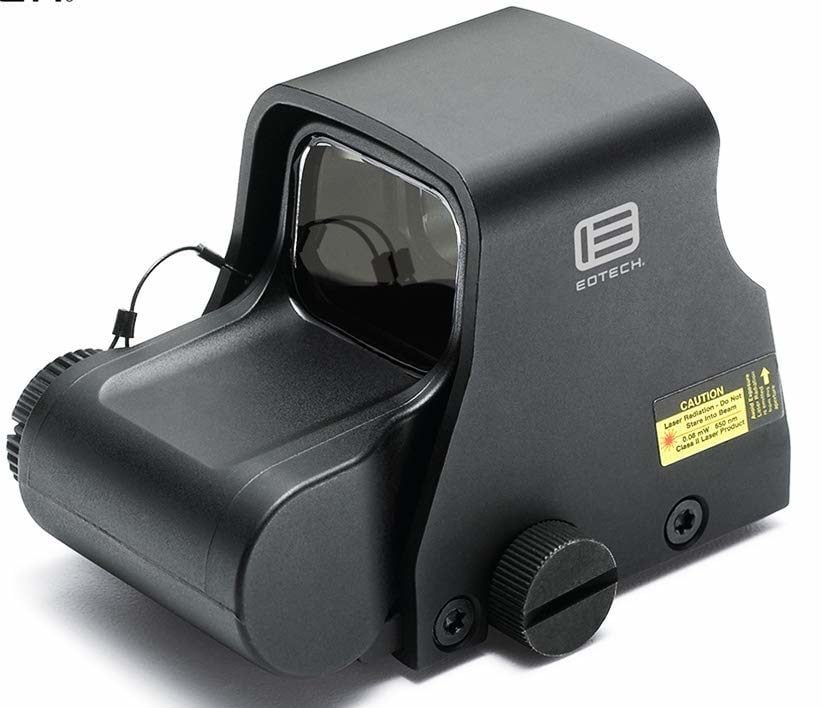

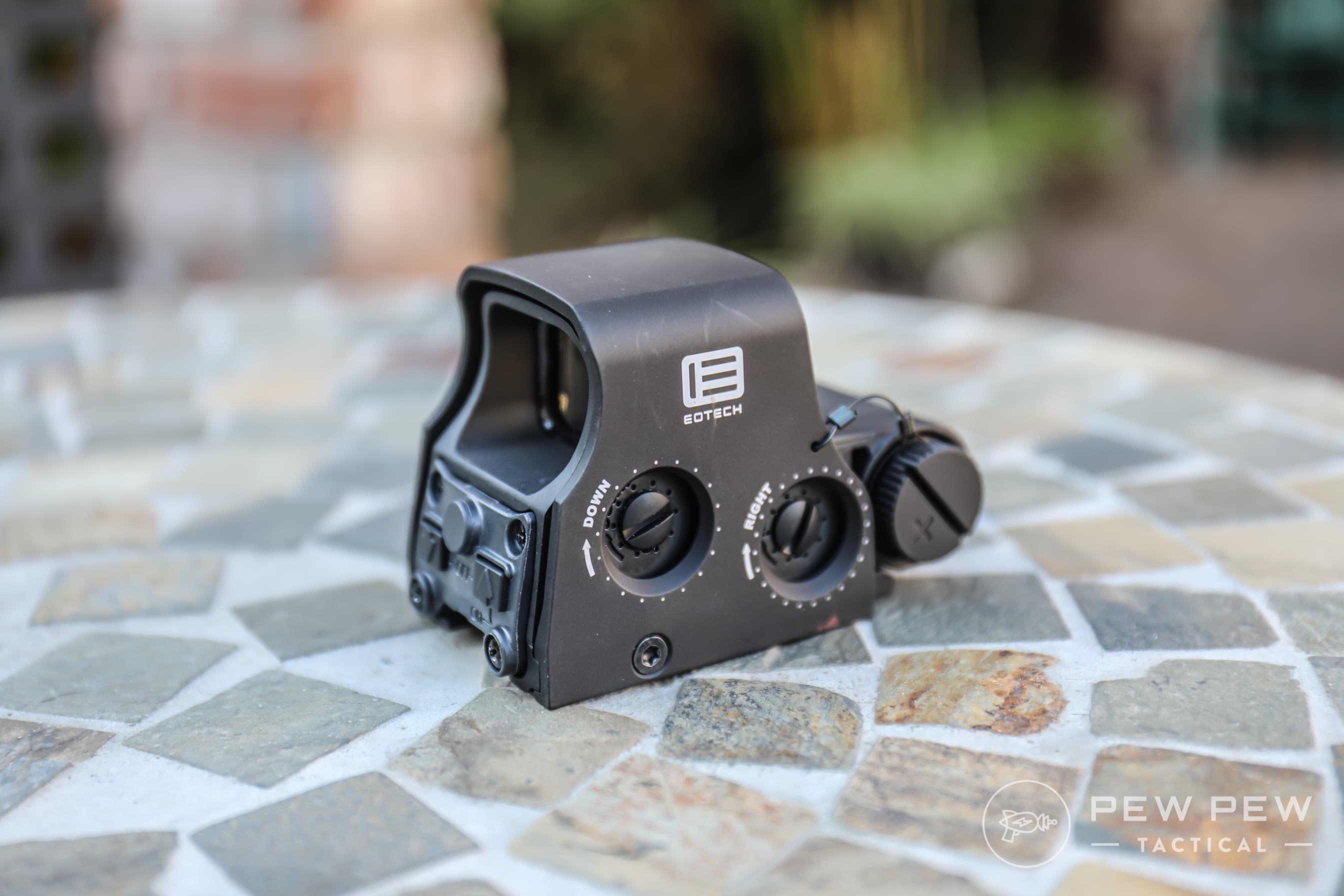

    EOTech XPS2-0
    EOTech XPS2-0
    • Newer short model
    • Screw mount
    • Standard reticle

    What I would get to save a few ounces but don’t need to magnify or quick-detach.

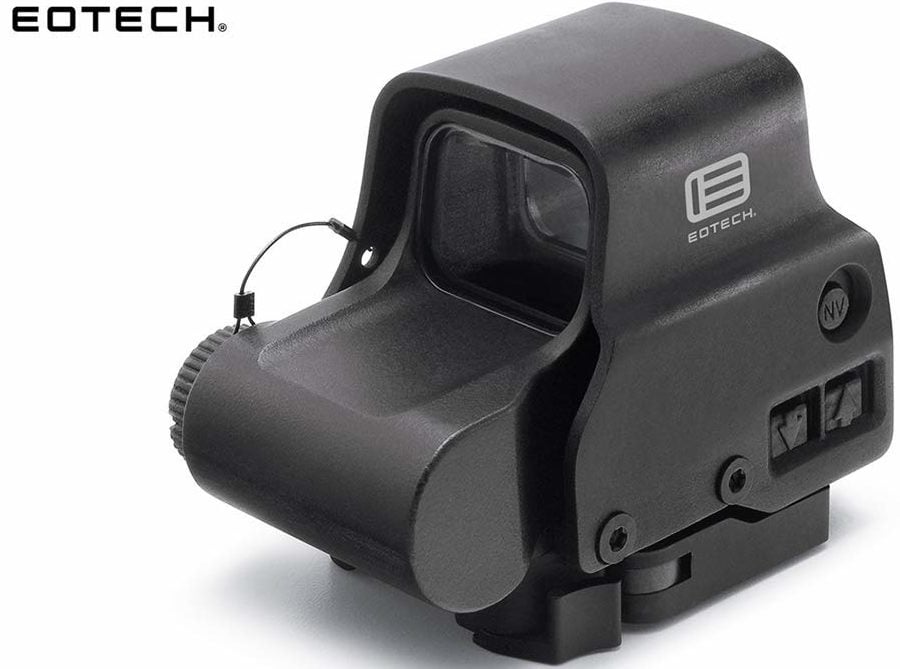

    4. EXPS3-0

    If you need night vision capability…go with the EXPS3-0.

    • Newer short model
    • Screw mount
    • NVG compatible
    • Standard reticle

    I recommend going with the short model for night vision so you save rail space in case you need to mount around your optic.

    5. EXPS2-0 Green Reticle

    Want the fastest acquisition speed?

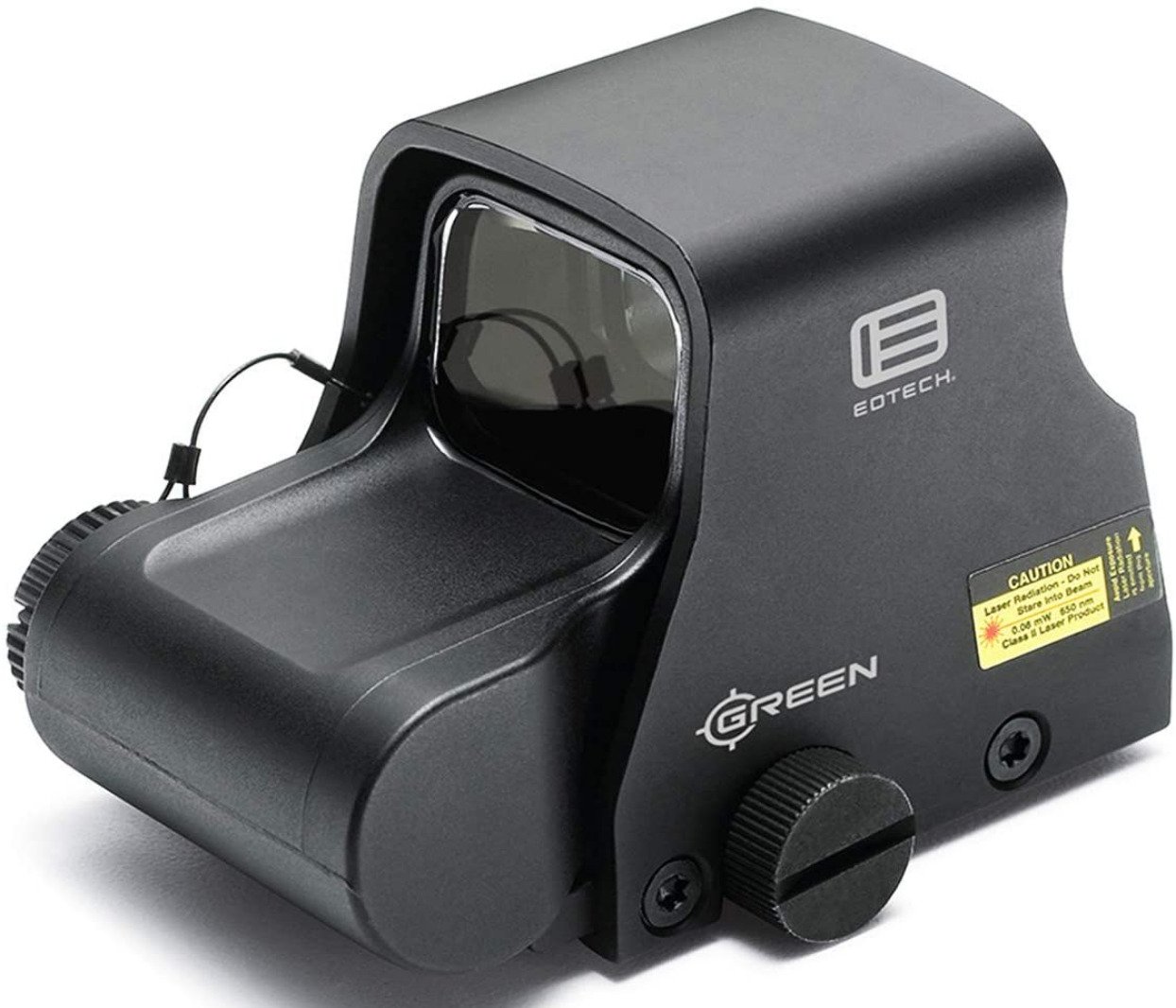

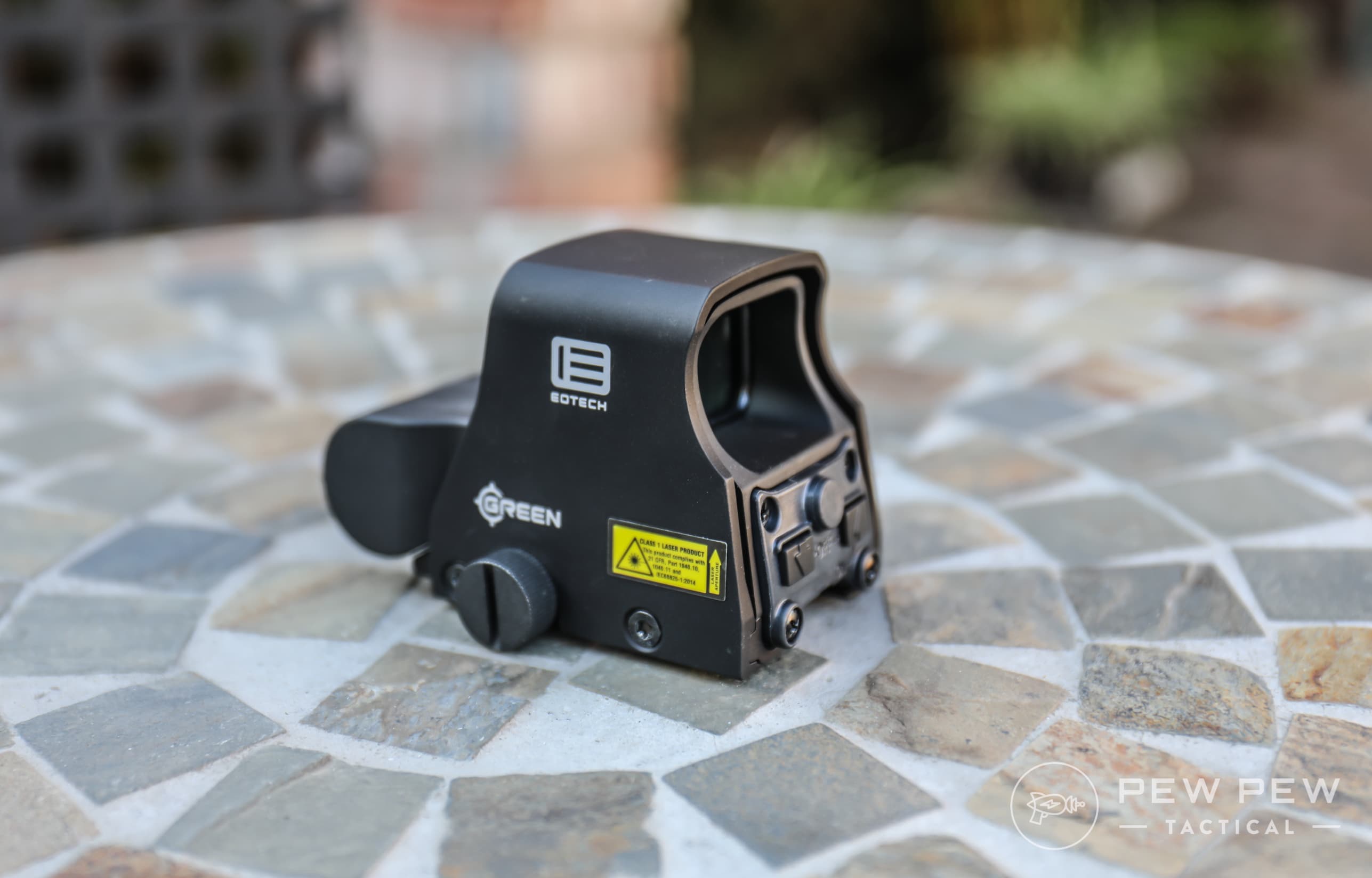

    EOTech XPS2-0, Green
    EOTech XPS2-0, Green

    You’ll want EOTech’s new green reticle optics since green is supposedly picked up 6x faster by the human eye.

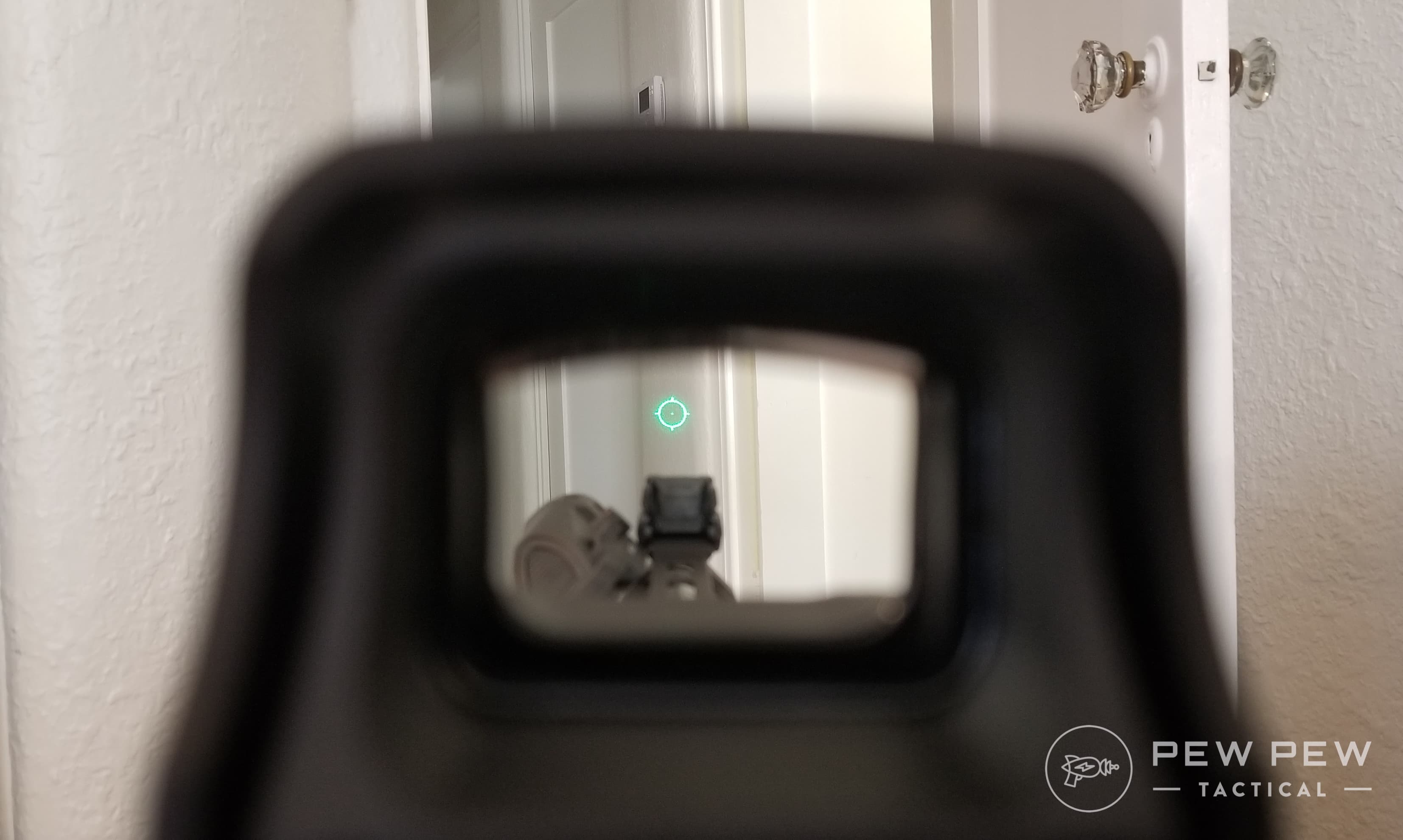

    EOTech Green Reticle
    EOTech Green Reticle

    I have the XPS2-0 to test out the screw-mount system…but I’d instead recommend the EXPS2 QD version.

    Keep in mind that green is great if your lighting conditions are constant (like competitions). But if you might be clearing the first floor and then entering a basement…you’ll want to stick with red.

    • Newer short model
    • QD Mount
    • Standard reticle in green

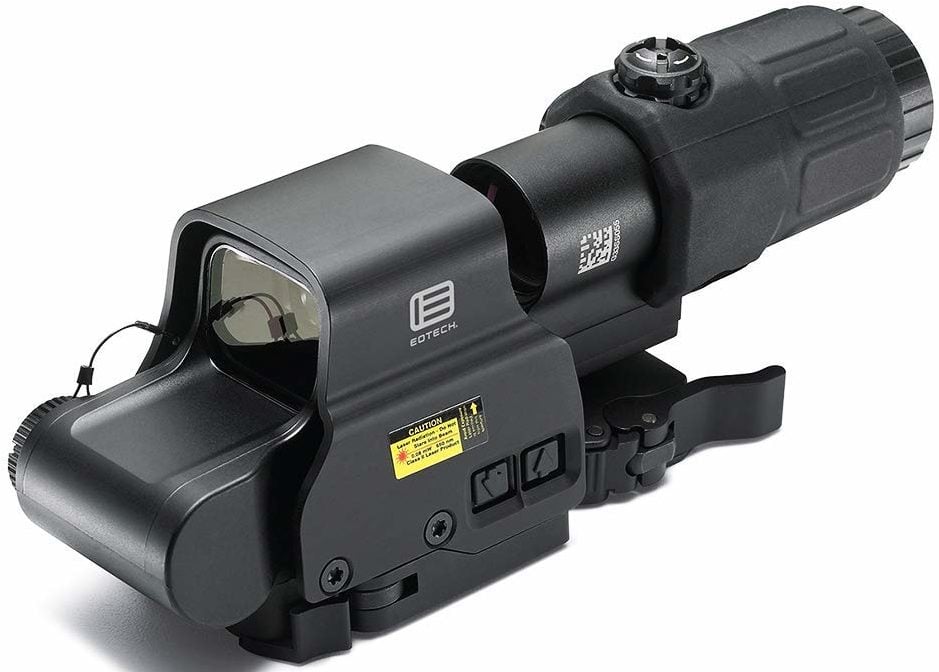

    6. HHS Hybrid

    Looking to have the highest quality 3x magnifier plus your regular EOTech?

    Take a look at the HHS Hybrid models.

    We go over our favorite 3x Magnifiers Under $200 but EOTech’s are in a class of their own with clarity and flip-mount.

    Things to Consider

    Style and Battery

    First thing is which style of EOTech…the “classic” longer model that uses 2 AA batteries…or the newer smaller model that uses 1 CR123 battery.

    Newer vs Classic EOTechs
    Newer vs Classic EOTechs

    Classics are designated with a Model # that is three digits and starts with a 5 (eg Model 512).

    EOTECH Model 512
    EOTECH Model 512

    Newer models are XPS# or EXPS# and then followed by a dash and another number (eg. XPS2-0).

    EOTech XPS2-0
    EOTech XPS2-0
    • Price: Classic is more affordable by about $75
    • Weight: Classic weighs more
    • Length: Classic is longer at 5.6″ compared to 3.8″ (important if you plan on adding a magnifier)
    • Battery Life: Classic is more with 1,000 hours with lithium batteries or 600 with regular alkaline compared with 600 hours of the newer version

    Reticle

    Ah…the famous EOTech reticle. I love it for its speed with its large 68 MOA circle and a precise 1 MOA center dot.

    Its official designation is the model number and then a dash zero (-0)…example is EXPS2-0.

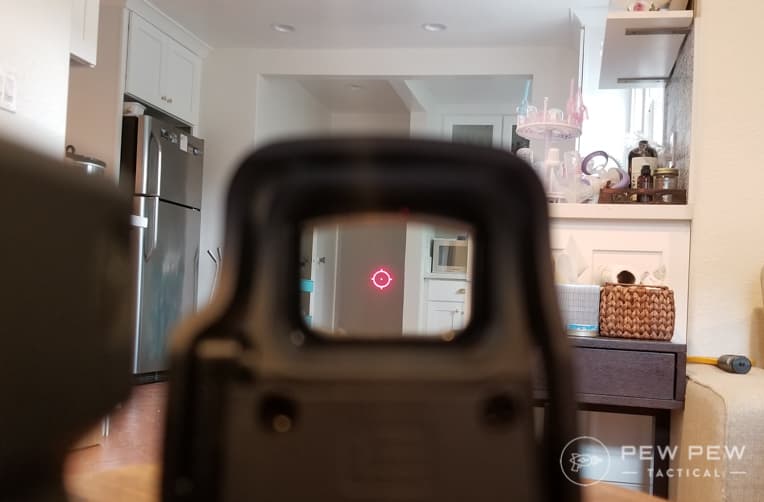

    EOTech EXPS2-0 Reticle
    EOTech EXPS2-0 Reticle

    When you zero the center dot at 50 yards…you get something that works for 200 yards and 7 yards.

    EOTech -0 Reticle
    EOTech -0 Reticle

    There are also other versions but my second favorite is the -2 reticle which works well with a magnifier to reach out to 500 yards.

    EOTech -2 Reticle
    EOTech -2 Reticle

    Night Vision

    This one is easy…

    If you don’t plan on using night-vision goggles…save some money and don’t get the models that have night vision mode (dimmer settings that won’t burn goggles).

    EOTech 558 Night Vision
    EOTech 558 Night Vision

    Learn more in our Best Night Vision Goggles article.

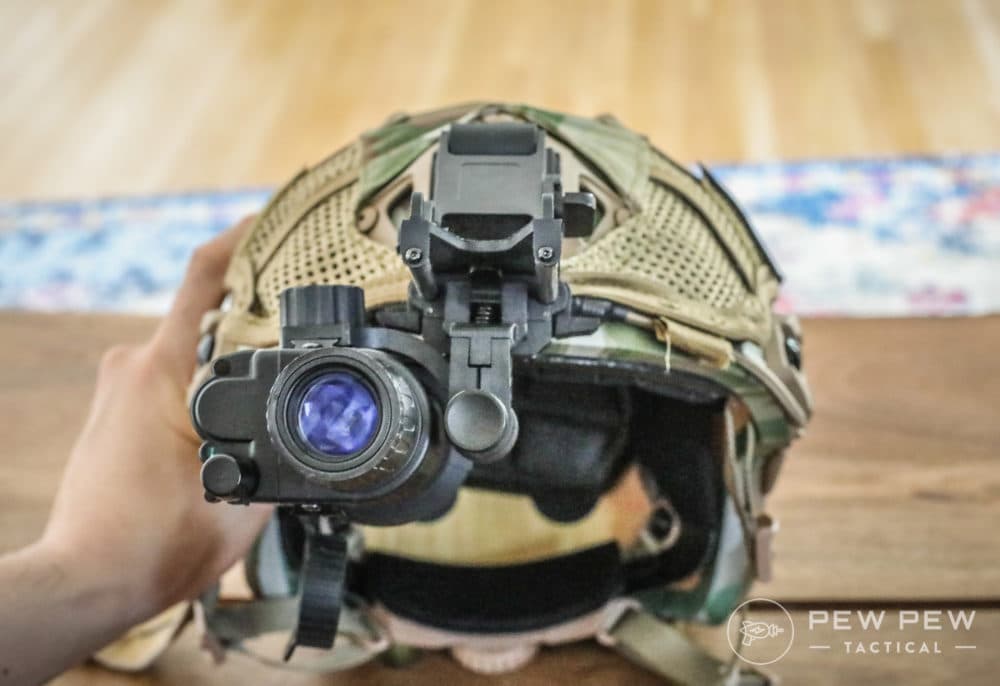

    ATN NVM14-3
    ATN NVM14-3

    Mounting Options

    There are two options…standard with a screw or a QD (quick-disconnect) mount.

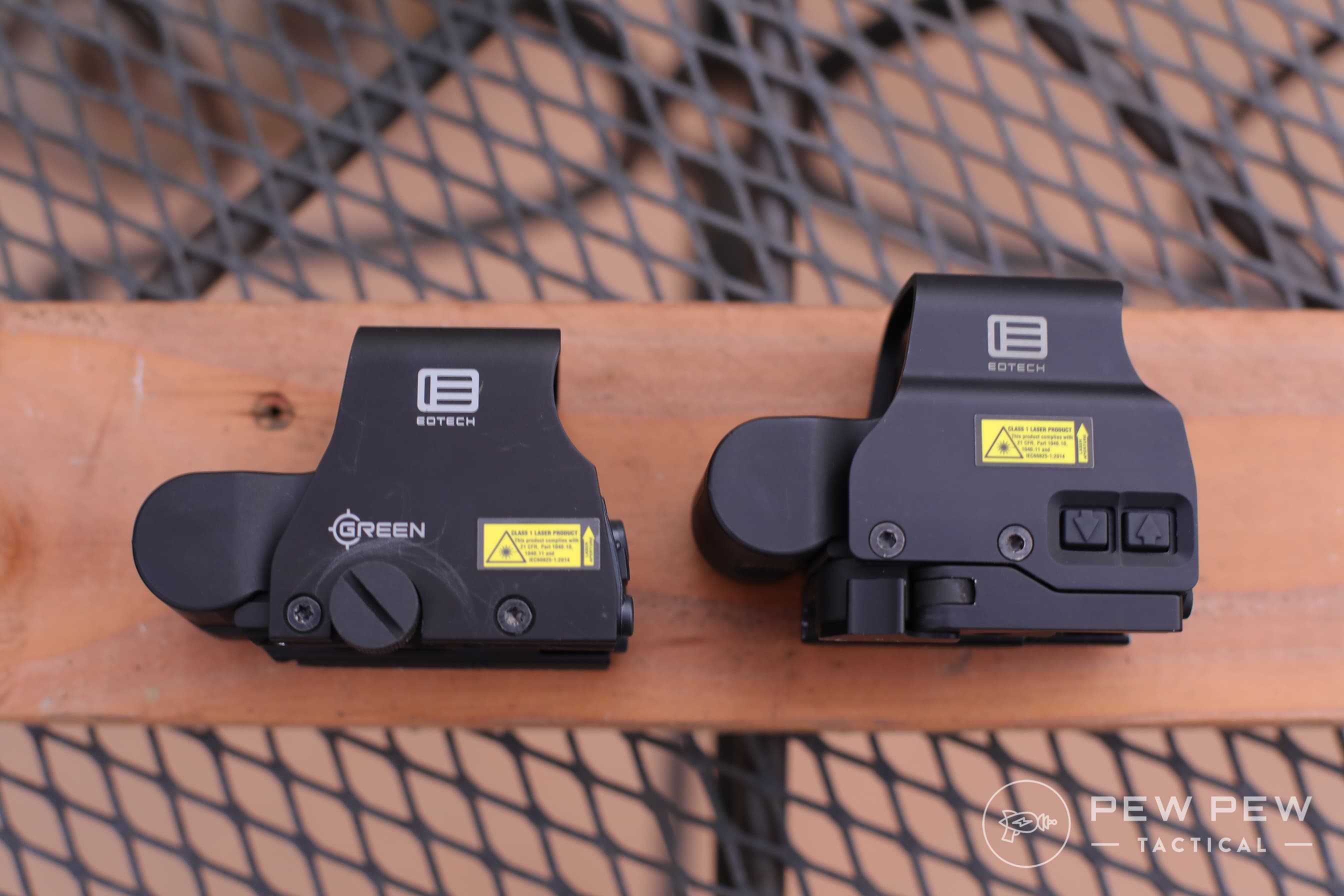

    XPS2 vs EXPS2
    XPS2 (Left, Screw Mount) vs EXPS2 (Right, QD Mount)

    The screw system weighs less (save about 2 ounces) but takes longer to take on and off. And you’ll save around $25 bucks.

    Also…the screw system sits lower and gives you an absolute co-witness compared to the QD mount which will be lower 1/3 co-witness.

    Co-Witness, Absolute vs Lower Third
    Co-Witness, Absolute vs Lower Third

    If you have backup irons that you can move up and down…the choice doesn’t really matter that much. But if you are running fixed irons…I prefer the lower 1/3 so the front post doesn’t get in your way all the time.

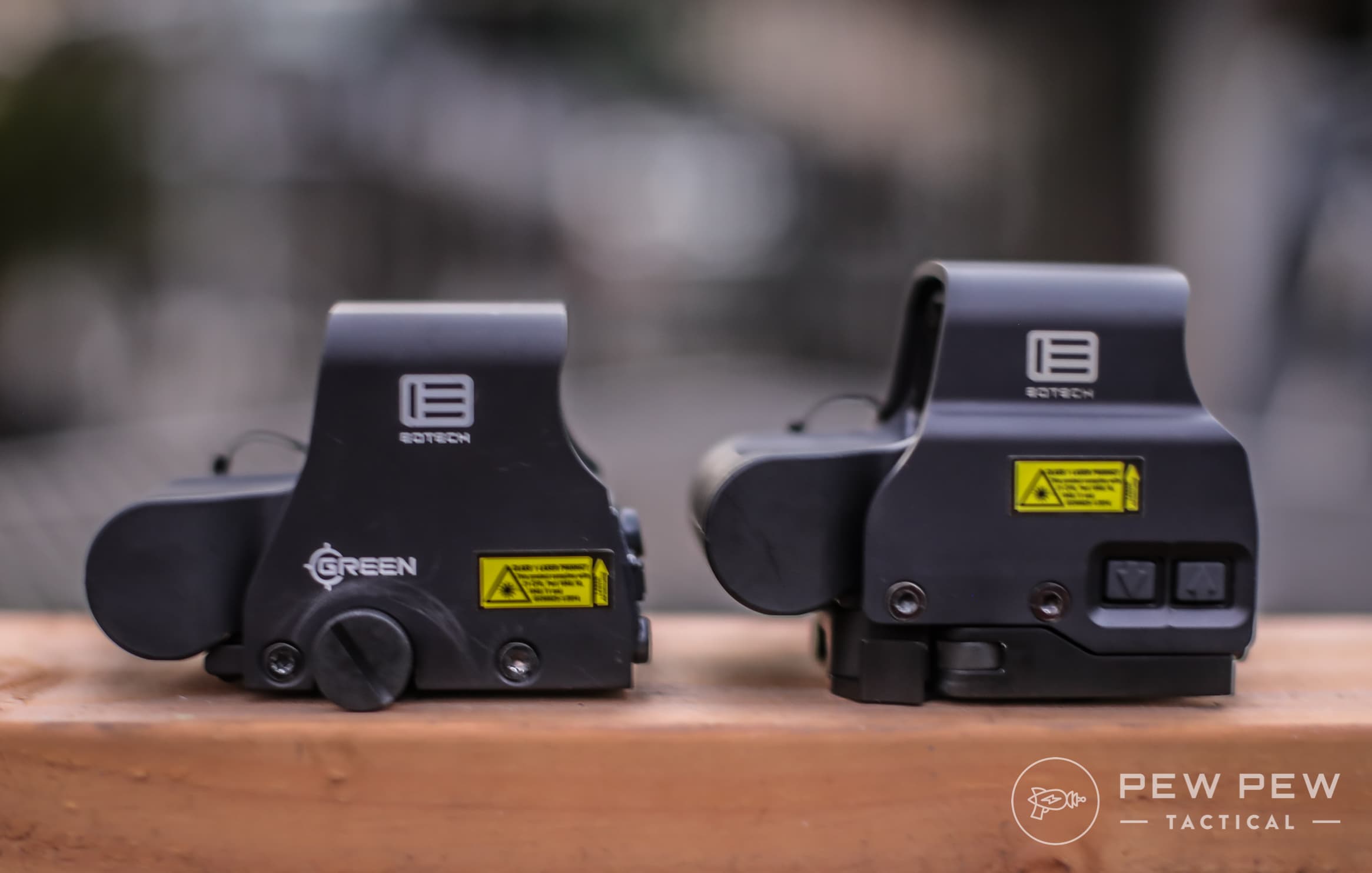

    XPS2 vs EXPS2, Upright
    XPS2 vs EXPS2, Upright

    Plus the height matches up better with most common magnifiers. Check out our favorite ones.

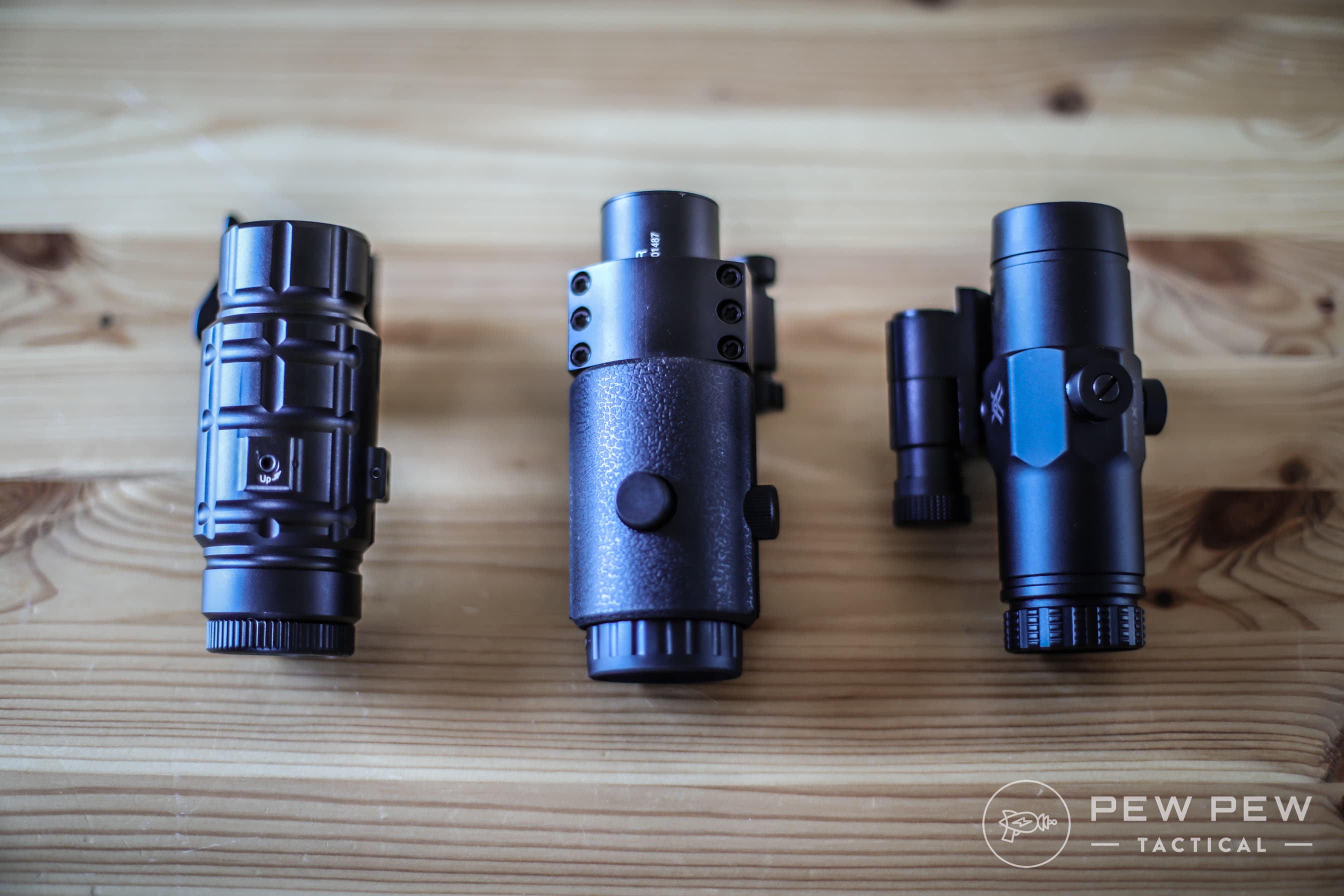

    3x Magnifiers
    3x Magnifiers

    Here is the reticle behind a 3x magnifier.

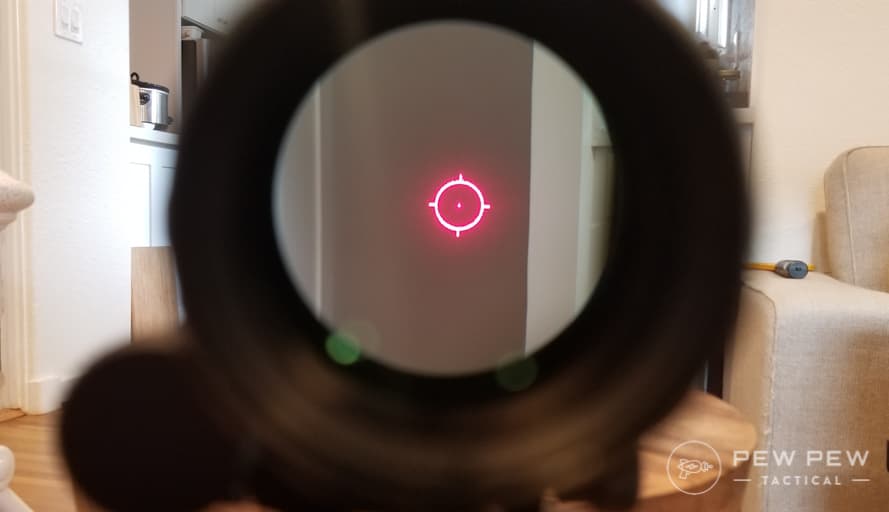

    EOTech Reticle, 3x Zoom
    EOTech Reticle, 3x Zoom

    Lastly…the QD mount versions (EXPS) have buttons on the side which make it easier for manipulation if you have a magnifier behind your optic.

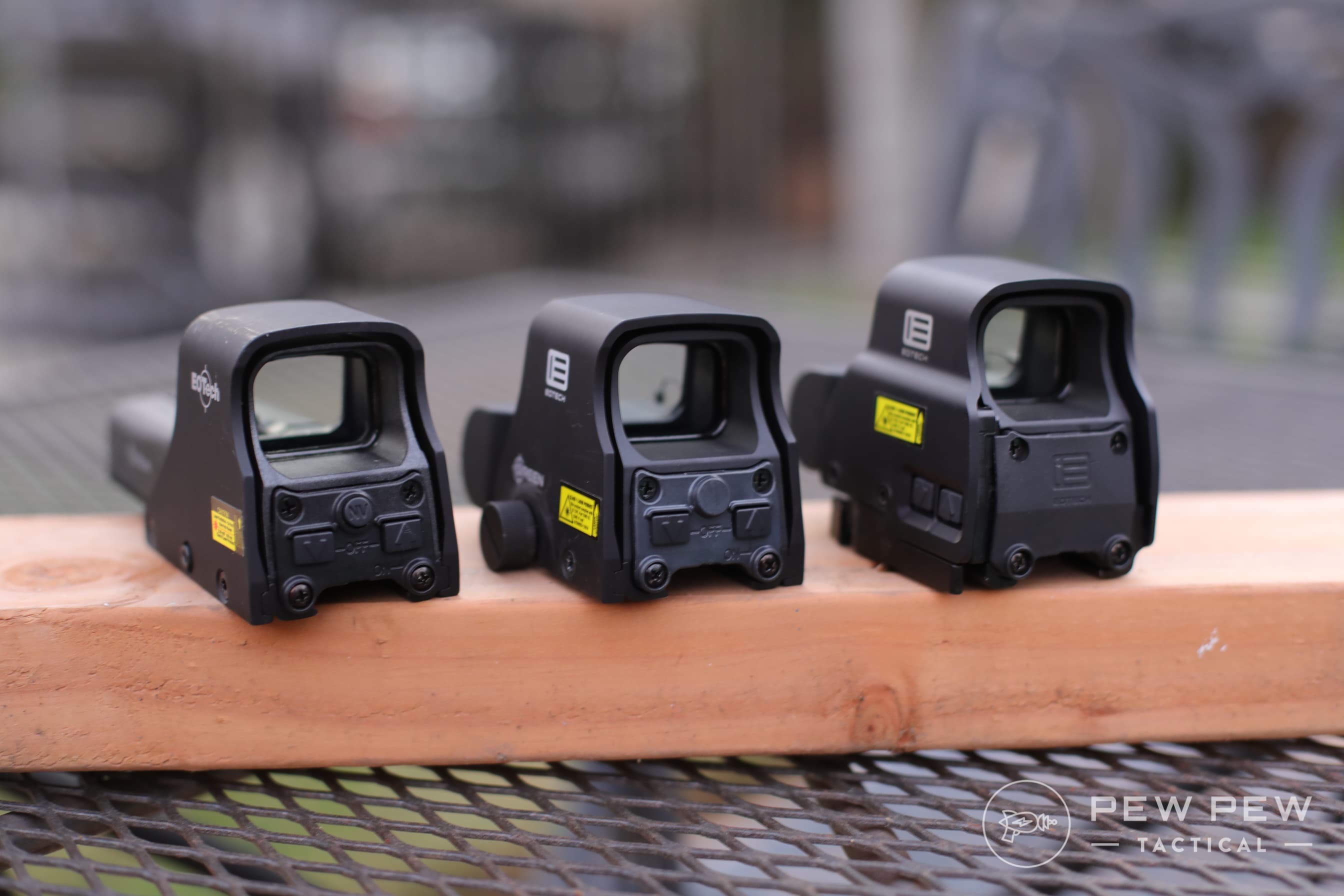

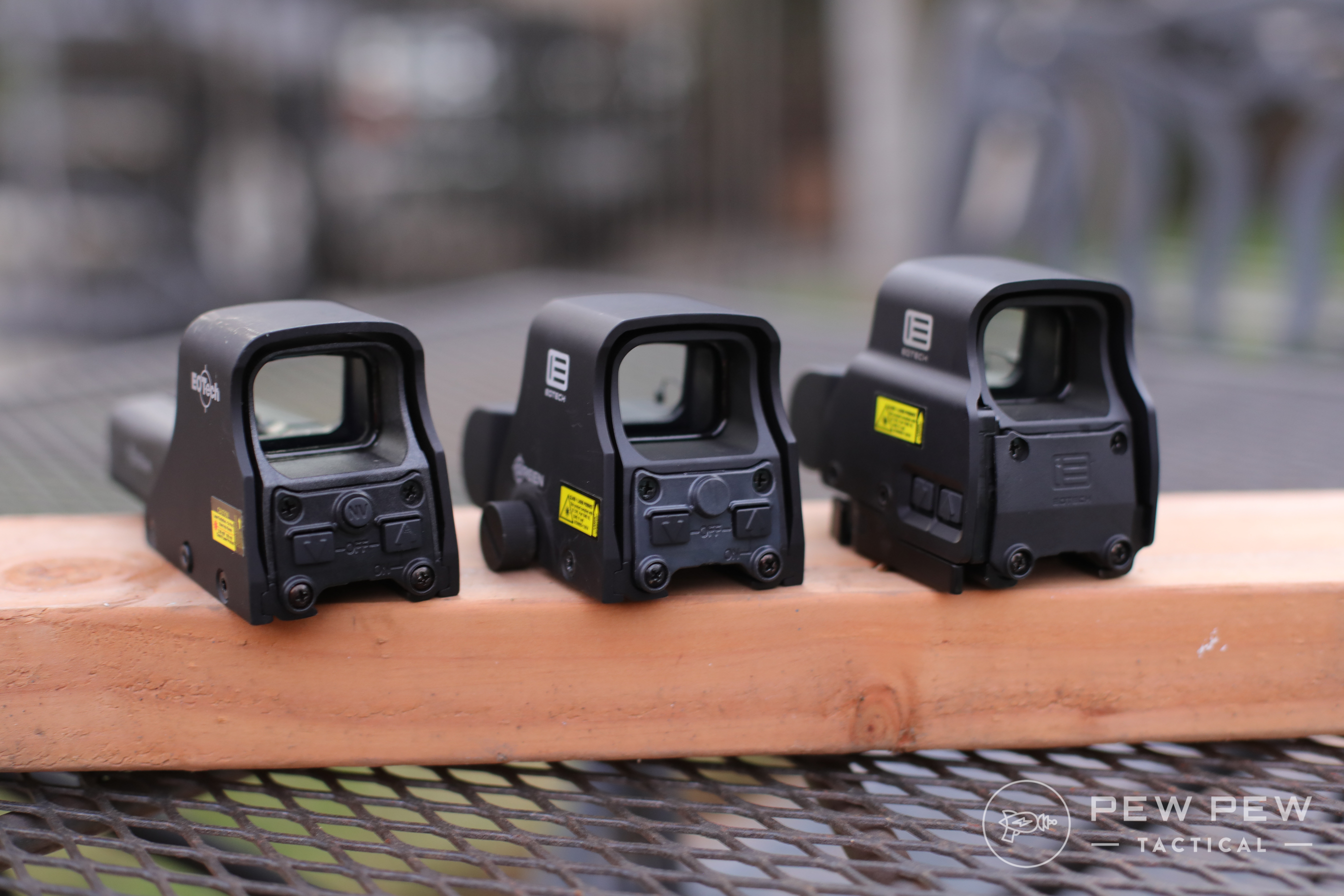

    Three EOTechs, Buttons
    EOTechs, Buttons (L to R: Model 512, XPS2-0, EXPS2-0)

    Even without irons…I prefer the QD mount version since I tend to move my optics around a lot and have gotten used to the buttons on the side.

    Durability

    We abused an EXPS model in our High-End Optics Torture Test series and it survived until the bitter end.

    EOTech EXPS3 Being Dropped
    EOTech EXPS3 Being Dropped

    From water submersion to drop testing (no POI shift), hot/cold cycling (no POI shift), and finally different loads until destruction.

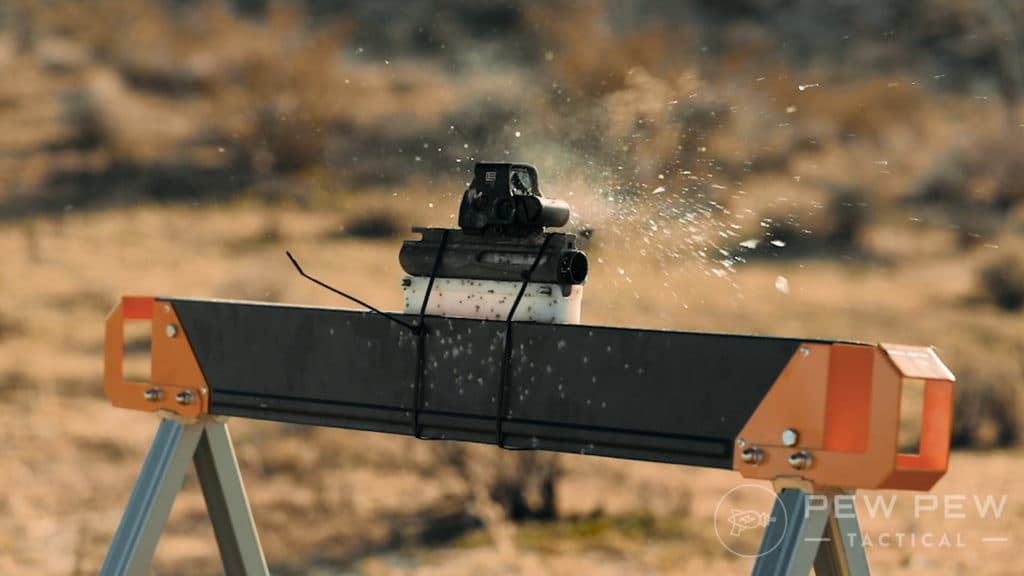

    EOTech EXPS 3 .22 LR Killshot
    EOTech EXPS 3 .22 LR Killshot

    I wouldn’t hesitate to have an EOTech on my duty rifle…and several of them do!

    Here’s the destruction and how it compares to others…

    Conclusion

    There you have it…my favorite EOTech models.

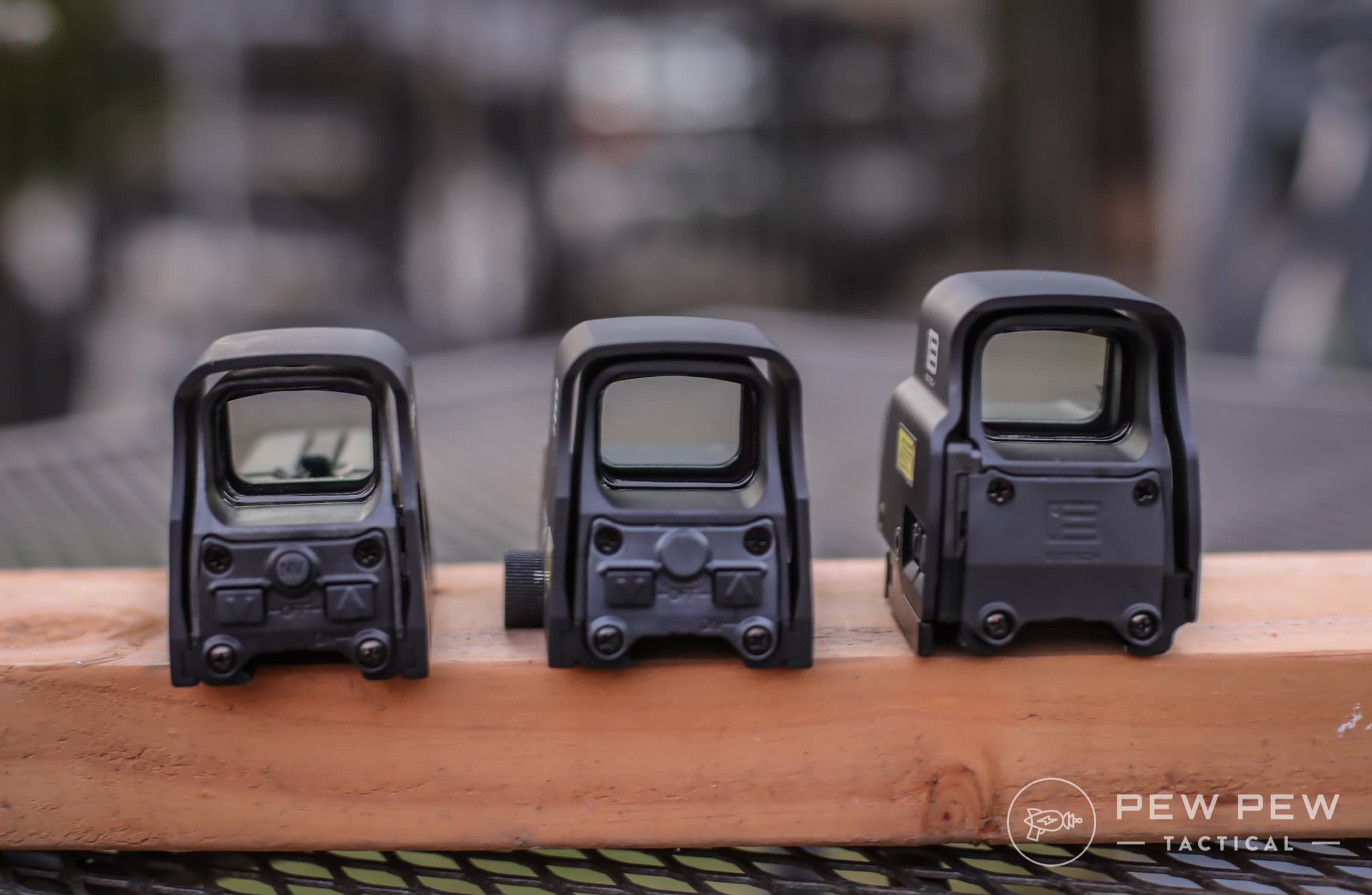

    Three EOTechs
    Three EOTechs (L to R: Model 512, XPS2-0, EXPS2-0)

    Again…if you’re still stuck between choosing a red dot or holographic…check out our comparison article.

    If holo sounds right…my top pick is the EXPS2-0.

    And my most affordable pick is the Model 512 which takes AA batteries.

    Did you end up choosing a favorite EOTech?  Let us know in the comments.  Looking at red dots or magnified options?  Check out our super comprehensive Best AR-15 Scopes & Optics article.
