Ultimate AR-15 Cleaning and Maintenance Guide

So you just bought a new AR-15 and took it to the range.  You ripped through a few boxes of ammo and now you’re home and you need to know….how do you clean this thing?

Maybe you’ve pulled the pins and separated the upper and the lower and you have no idea what to do from there.

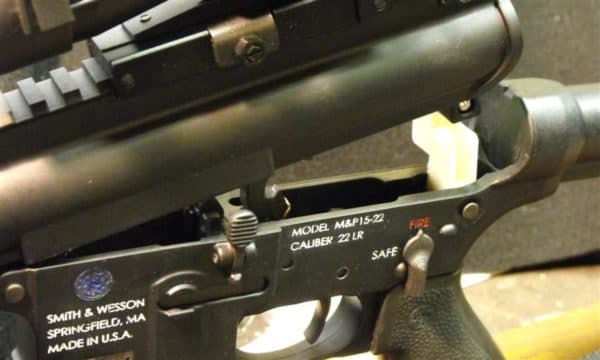

AR15 Cleaning
Wondering where to go from here?

It looks intimidating right?

Feeling a bit overwhelmed?

No need for that, cleaning the AR-15 is pretty easy!

I’m going to show you just how easy it is to tear your rifle apart, clean it in depth, and put it all back together without fear of damaging anything or leaving any parts out.

Let’s get to it.

Note: If the AR-15 is your first gun, make sure you take a look at our general gun cleaning and lubrication guide first to make sure you understand the basics.  Also, you can pick up a sonic cleaner to make this whole process a lot easier, but that’s a subject for another day.

Step One: Get the Tools to Clean Your AR-15

If you already have other guns, and you’re cleaning them like you should be (you are cleaning your guns regularly right?) then you most likely already have just about everything you need to clean an AR-15, except for some AR-specific things like a bore brush for your particular caliber.

If you don’t already have cleaning supplies, or if you want to build a complete AR-15 cleaning kit that you can carry to the range or competitions, you have two options: build a kit, or buy one.

Which one is better?

That’s going to be a decision you have to make for yourself.

If you just want a kit that works, or maybe you don’t shoot your AR a lot and aren’t worried about maximizing your cleaning efficiency, then just buying a pre-made kit is perfectly fine.

Everything is fine dog
Actually fine, not like this.

But, if you are a high volume shooter and you need to clean your rifle frequently, or you’re like me and just enjoy the zen-like process of cleaning your guns, you’ll probably want to build the perfect kit to meet your needs.

Let’s look at the pros and cons of these two approaches.

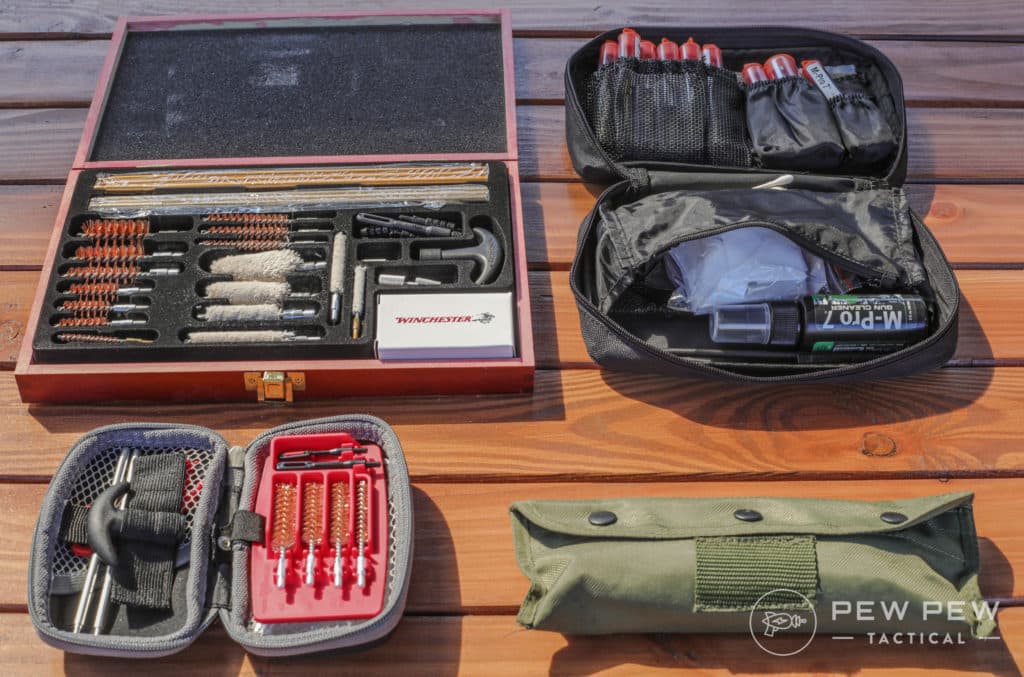

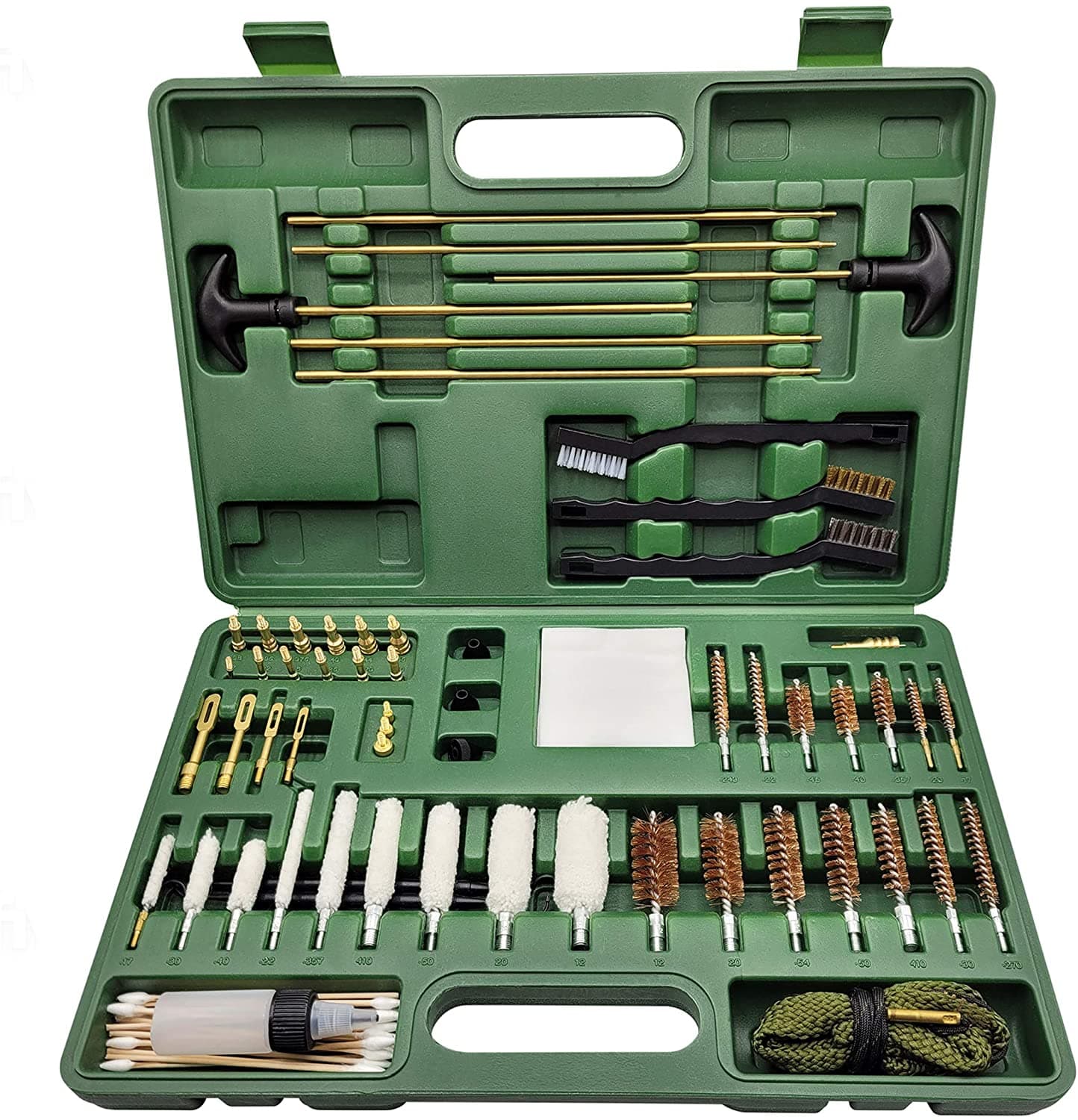

Buying a Pre-Made Gun Cleaning Kit

First, if you want to order a kit that will have just about everything you need, there’s no shame in that.  Not everyone has the time or energy to build a kit from scratch, and there are several good options out there.  The downsides of buying a totally pre-made kit are you can only reliably find universal cleaning kits that are going to include a bunch of extra brushes and bore snakes that you won’t necessarily need.

Think of the pre-made kit like an off-the-rack suit.  Sure it’ll work, but its never going to be as nice, or as personalized as a bespoke option.

Basically, off-the-rack is fine, but you wouldn’t want to wear it to your wedding, or wear it every day.

The same goes for these pre-made kits…you wouldn’t want to rely on them for something important, say, if you’re a competition shooter,  and you’ll want a more personalized option if you’re going to be using it a lot.

That being said, these kits are perfectly fine for most folks, and they’ll be good if you have other guns or other AR-15 calibers, or are looking at acquiring some in the future. Here they are in no particular order:

With these kits, or any kit you buy/build, you’ll want to make sure that they include the correct size bore snakes and brushes, as well as the other tools that work with your AR-15.  Make sure you match the caliber to your gun, or you’re going to have to buy another…and you’ll feel a bit silly in the process.

Building Your Own AR-15 Cleaning Kit

Because cleaning a gun is a process that can vary so much from person to person, its best that you build a kit that meets your own needs.  You can always pick up several different pre-made kits and combine them into one giant “frankenkit”.

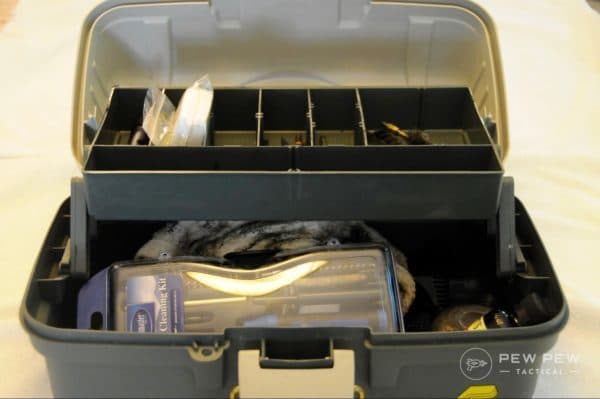

AR15-Cleaning-kit
The best kit is always going to be the one you build and customize yourself.

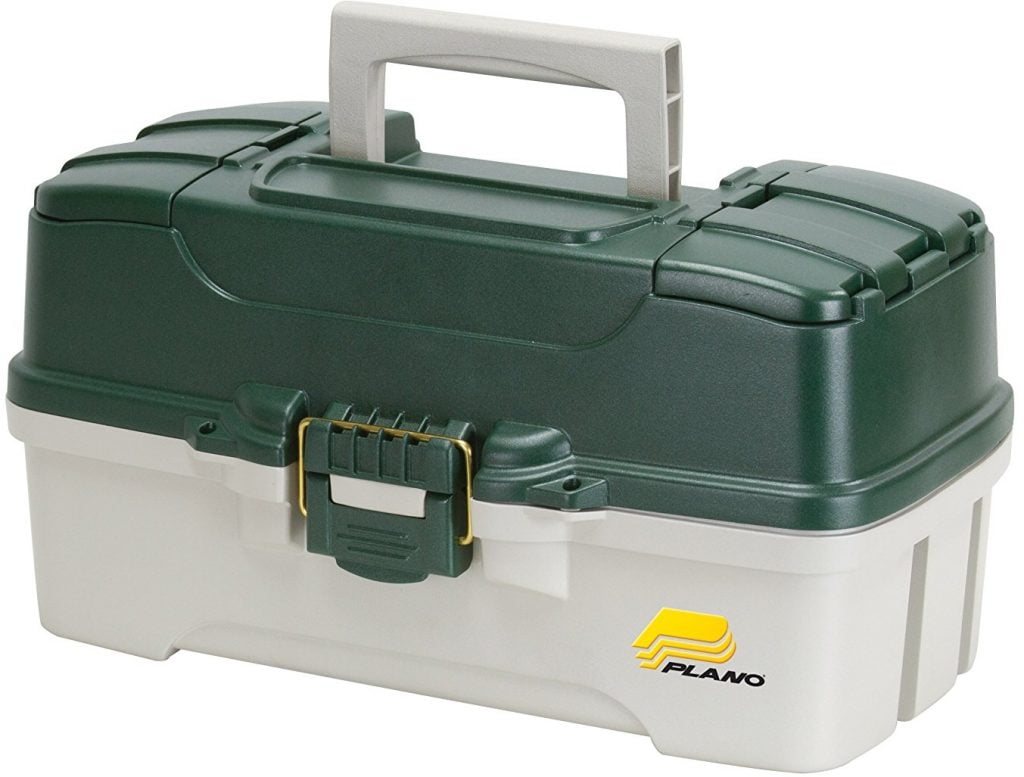

If you’re going to build you own kit, I recommend buying a nice case such as this Plano 3-Tray Tackle Box with Dual Top Access ($14.34), but anything from a cardboard box on up will do.

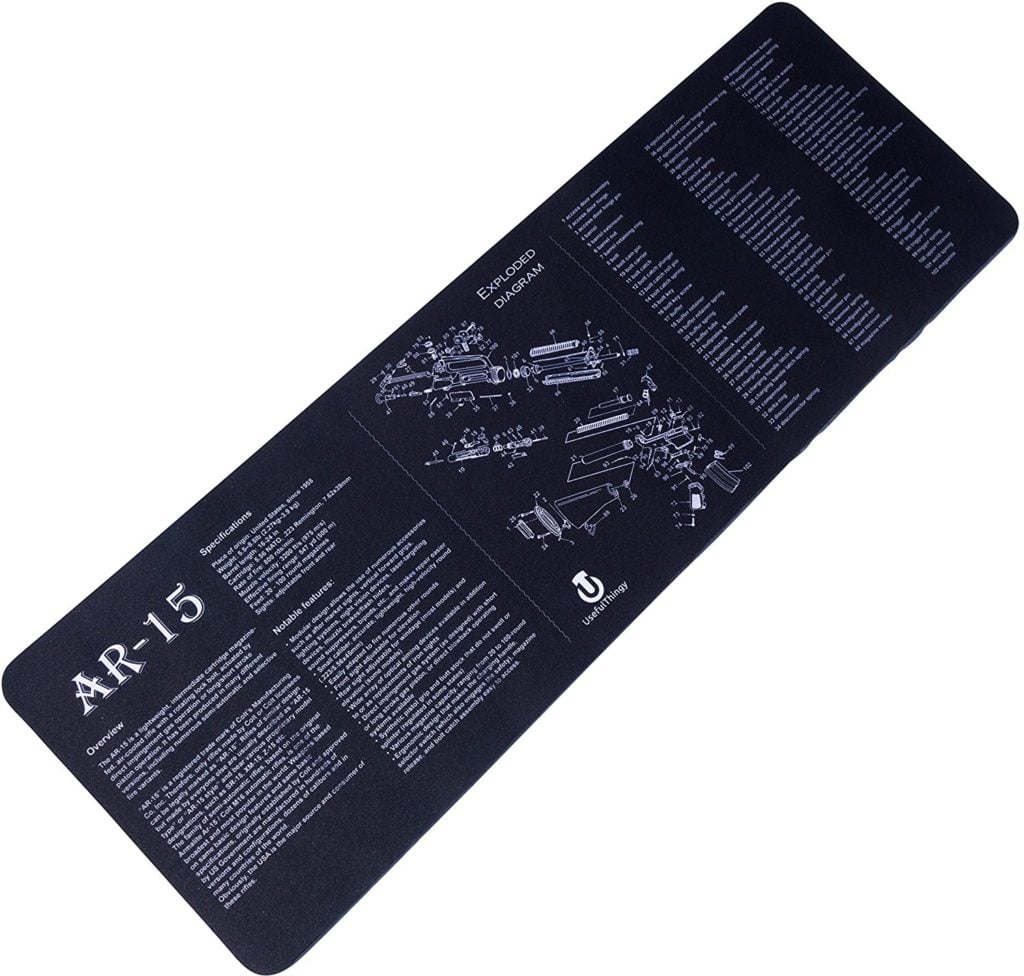

Next, you’ll want a cleaning mat to keep you parts visible and to keep everything organized.  A white sheet or tablecloth will do, but I like this Gun Cleaning Mat ($18.95) because it also includes a handy parts list, making it perfect for a beginner.

AR-15 Cleaning Mat
Plus, it looks pretty freaking cool.

From there, you’ll want to buy the brushes and bore snakes/rods for your particular AR caliber.  I’ve included some links to .223/5.56 caliber ones below since these are the most common flavors of AR on the market, but you’ll need ones that match your particular caliber.

Here are some kits that include more or less everything you need:

With these kits, you should have the brushes, bore snakes/rods, punches, and other various and sundry things you will need, other than your consumable cleaning supplies such as solvent, lubes, and cleaning patches.

The only other things you may find useful (especially if you want to get into some light gunsmithing) is a better punch set like this Ultimate Arms Roll Pin Punch Set ($29.99) and an AR-15 Vise Block ($49.99) that fits into the mag well of the rifle so you can secure it in a bench vise without scratching the finish on your gun.

Best AR-15 Cleaning Solvents and Lubricant

Step 2: Prep the Area and Clear the Firearm

First, lay out your cleaning mat and throw on some gloves.  Some of these chemicals are toxic and you want them in the gun, not on your skin or in your body.

Next, round up all the ammo for your gun, and move it off the table.  Seriously.  Get it out of the room, if possible.  This eliminates the possibility of a round finding its way into the chamber at any point.

Next, clear and render safe your firearm.  (That’s fancy talk for making sure the gun can’t go pew, pew pew, or pew pew pew for any reason.)

Here’s the full procedure

  1. Point the rifle in a SAFE direction.
  2. Remove the magazine.
  3. Place the weapon on safe (don’t worry if you can’t because the hammer isn’t pulled back).
  4. Lock the bolt to the rear.
  5. Visually inspect the chamber and remove any ammunition that may not have been ejected.
  6. Release the bolt.
  7. Place the weapon on safe.

Step 2: Separate the Upper Receiver from the Lower Receiver.

Push the take-down pins out and pull the two halves apart. Some pins can be pushed out with your finger, others may require the use of a punch. Be careful whatever you use so you don’t scratch your finish. I recommend a nylon punch from one of the kits above for general use.

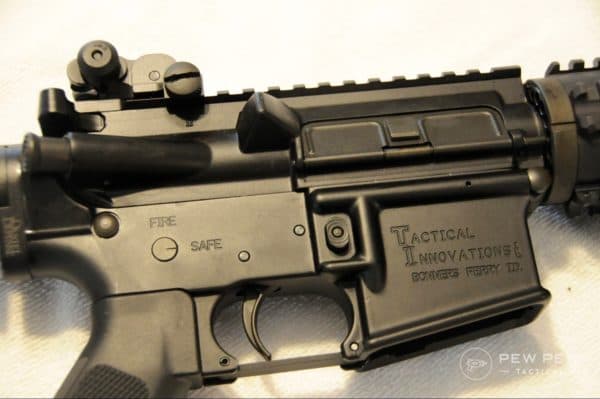

AR15-upper-lower
Use a nylon punch to remove any pins without worrying about scratching your finish

Step 3: Remove the Charging Handle and Bolt Carrier Group

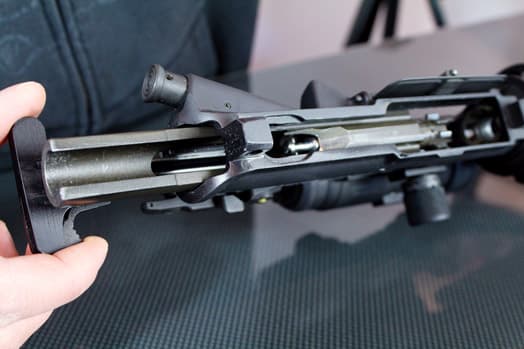

Remove-ar15-bcg
The bolt carrier group and charging handle slide back and out of the body of the upper receiver.

Step 4: Disassemble the Bolt Carrier Group

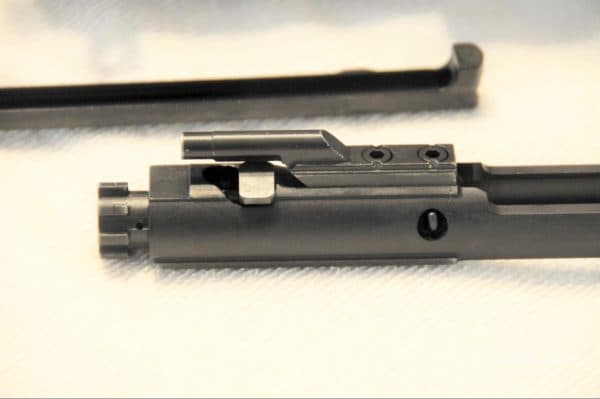

AR15-BCG-disassembly
Rotate the cam pin to the side to remove the bolt.

First push the bolt to the rear (pictured above) and remove the firing pin retaining pin using your pick. Remove the firing pin and set it aside. Rotate the cam pin ninety degrees and remove it. Now the bolt should slide right out!

Step 5: Disassemble the Bolt

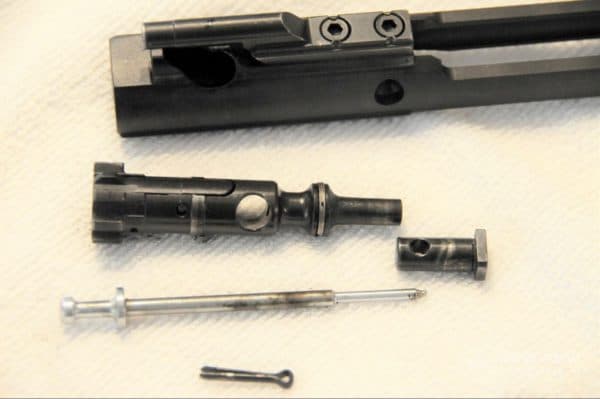

AR15 bolt
Once the bolt is out, its time to remove the extractor.

Once you have the bolt out of the bolt carrier group, use a punch and your mallet to remove the extractor pin, and then remove the extractor and set it aside.

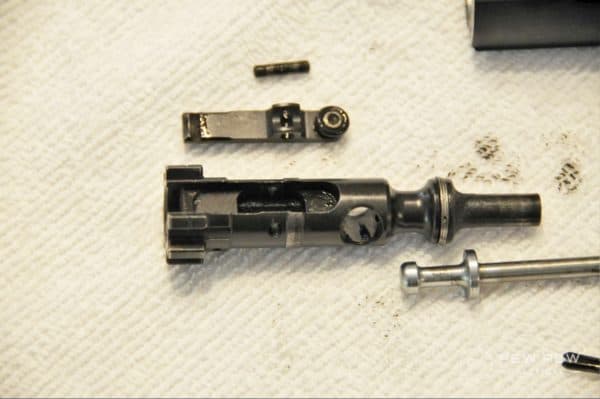

Removing AR15 Extractor
Make sure you keep track of the extractor pin as they have a habit of rolling off of tables, never to be seen again.

Step 6: Remove the Buffer and Buffer Spring from the Buffer Tube

Using a calloused finger, or a punch, press down on the buffer retainer.  Remove the buffer and spring from the tube. Remember the retainer is under pressure, so try not to push down on it too far and slip once the pieces are out.

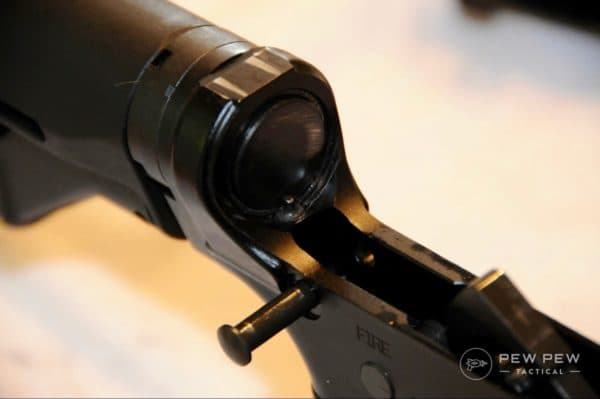

AR-15 Buffer
If you’ve removed all your ammo, this little guy should be the only projectile you have to worry about.

Otherwise you’ll spend the next few hours looking for it after it springs off to the other end of the room.

Step 7: Clean the Chamber and Barrel

Everyone has their method for this, but there are a few things you need to remember.

The most important thing is that you clean the chamber and barrel from rear to front. You want to make sure the debris comes out the front of the barrel, and that any brush you use on a rod is inserted from the rear – go with the bullet.

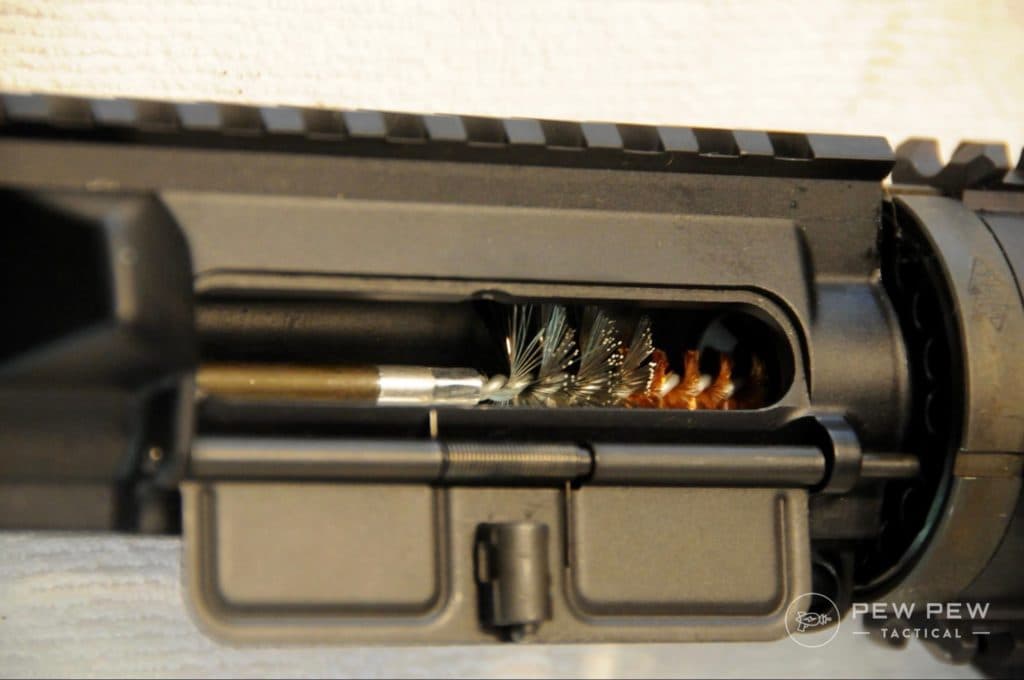

AR-15 Cleaning Brush
Clean with the path the bullet takes from the gun.

This helps keep the rifling intact. The movies are wrong; you don’t clean from the muzzle to the chamber!

This area takes some creativity to clean up, but with time you’ll find what works for you. This is a good place to drop a little bit of that Bore Cleaner you picked up.

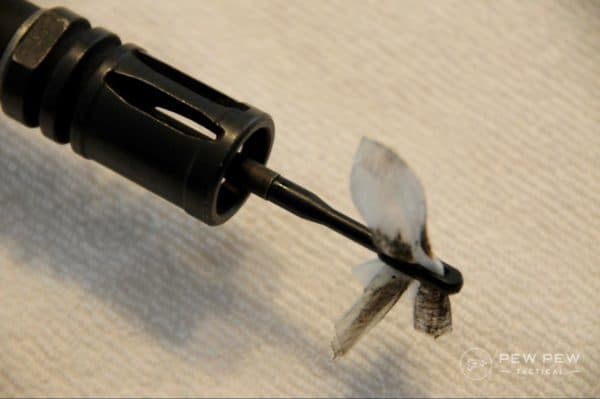

AR15 Cleaning Patch
Keep running patches through until they start coming out clean.

Step 8: Clean the Bolt Carrier Group

This is easier than the chamber and barrel.

Give everything a good scrub. Look for carbon buildup, especially at the rear of the firing pin.

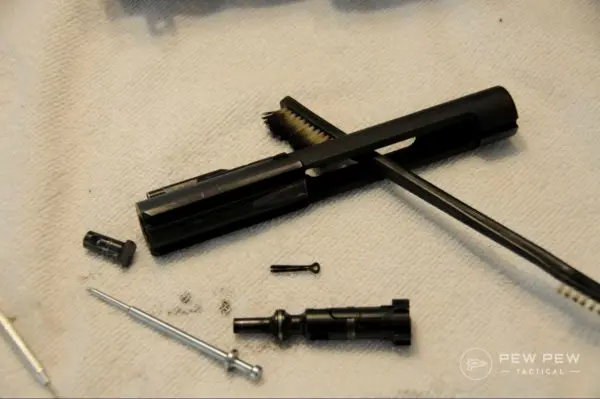

Cleaning AR15 Bolt
Your cleaning kit should have come with brushes just for this, but a stiff toothbrush will do in a pinch.

Clean the extractor well, attention to detail is key.  I make sure my rags are all plain white and cleaned after every use with bleach.

Set one aside as an “inspection” rag so you can easily find missed carbon.

When you’re finished, reassemble the bolt carrier group in the exact opposite order of disassembly.  Make sure your bolt is fully to the front so it can be reinserted in the upper. A flick of the wrist helps this along.

Step 9: Clean the Buffer Assembly

This part is easy.  Get a rag with a little lube on it and wipe it all down.

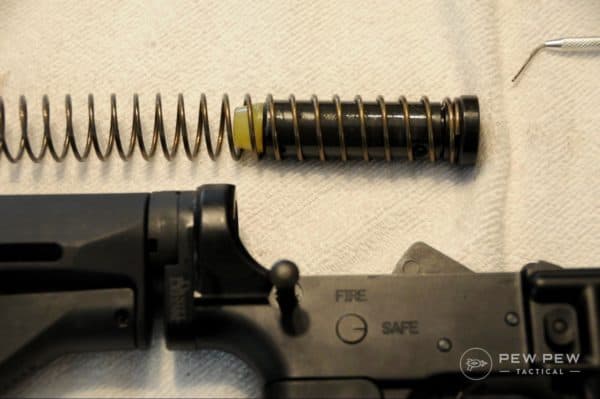

AR15 Buffer Spring
This part should be pretty easy.

Unless you took your rifle to a really cool obstacle course, you probably won’t need to get back in the tube itself.  Wipe down the spring and buffer and you’re all set.

During this step, if you have a collapsible stock it’s not a bad idea to remove it and wipe down the outside of the buffer.  It’s an option if you have been in a messy environment, but not needed for range trips.

Step 10: Clean the Charging Handle and Upper Receiver

Just like the buffer assembly, a lightly oiled rag is all you should really need here.

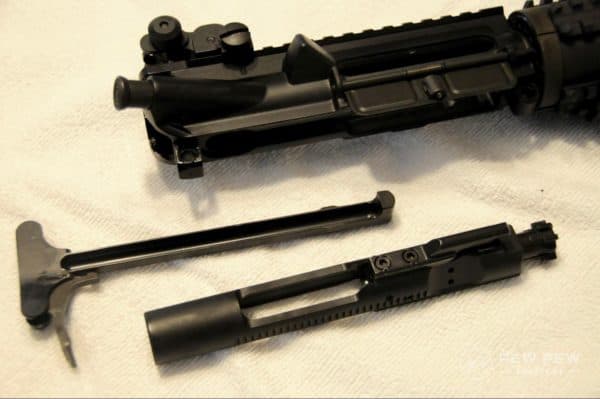

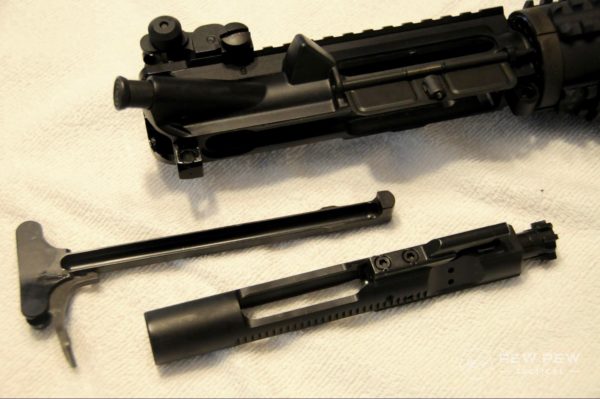

AR15 Charging Handle and BCG
Wipe everything down until your can touch your inspection rag to it and not pick up any carbon.

You’ll find what works best for you, but once reassembled the charging handle should move effortlessly within the upper receiver.

Step 11: Clean the Fire Control Group (FCG) and Lower Receiver

This takes a brush, oil, and patience.

It generally doesn’t get too fouled up. Pay attention to your FCG and make sure there are no cracks on the hammer or anywhere on the lower receiver.

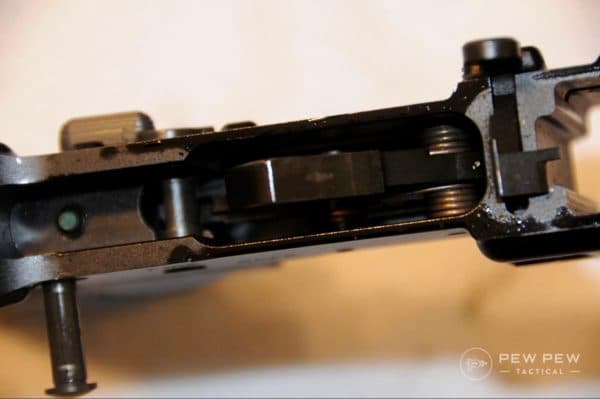

AR15 Lower Cleaning
Make use of those brushes for the hard to reach areas.

Step 12: Reassemble your Rifle

Work backwards from take down, just like the bolt carrier group. After the fifth time you do this it will become second nature! It should look something like this when you’re done.

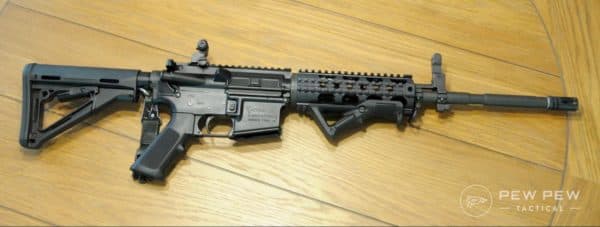

Reassembled AR-15
Be proud of your hard work! And get ready to do this a few hundred more times.

Step 13:  Lubricate your Rifle

There are more details to this, but I’m going to keep it simple for right now.  All the pieces of your bolt carrier group and your charging handle should receive a light coat of lubricant. It should have a nice sheen to it.

Your FCG, mag release button, bolt catch button, safety selector should all get a drop or two of lubricant.  Fiddle with them a touch to work it in there.  Bottom line, anything that moves needs to have a bit of lubricant on it.

Mr. Bean meme
If you know what I mean.

Step 14: Perform a Function Check

You put all your ammo away at the beginning of this whole deal (right?) so there should be no way a round is anywhere near the chamber but do a safety check just in case.

Then:

  1. Point the weapon in a safe direction.
  2. Pull the bolt to the rear and release it forward.
  3. Place the rifle on safe. Squeeze the trigger.  If the hammer doesn’t drop, you passed that step.
  4. Place the rifle on fire and pull the trigger.  The hammer should fall.  If it does, then you’re all finished with the hard part.
Congratulations meme
You have done well, assuming the gun is clean and you didn’t shoot yourself in the foot.

Step 16: Clean Your Magazine

This is an often overlooked step.  It doesn’t need to be cleaned after every trip to the range.  Just pay attention to it during loading.

Does it bind up?  Can you hear dirt rattling around in there?  Is it hard to load?

Cleaning the magazine is just like cleaning the buffer assembly.  Use a pick or whatever you have handy to remove the base plate.

Remove the spring and follower.  Wipe it all down and clean it up.  Reassemble in the reverse of disassembly.

These are pretty straight forward.  If you’ve invested in anti-tilt followers for your GI magazines, this is a great time to install them.

Step 17: Maintenance

Just like the break-in procedure, every rifle has its own maintenance schedule. Consult the manufacturer for more. A general rule of thumb is to give your rifle a thorough inspection every thousand rounds. Once you hit the five thousand round mark, it is a good idea to move to inspections every five hundred rounds.

The most common failures occur in the various springs (specifically the extractor spring), and in the O-Rings on the bolt carrier group.  If failures begin, start there!

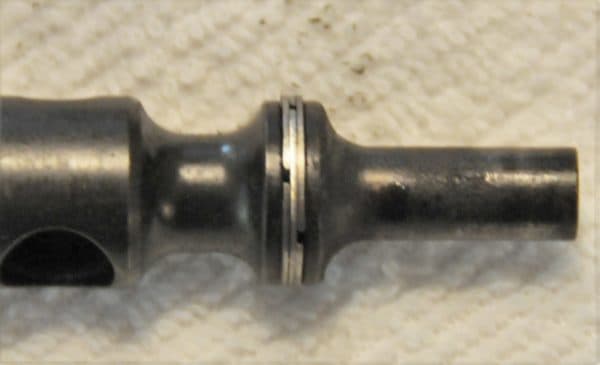

AR15 O-ring check
If you see any cracked or frayed O-rings, its time to swap them out.

Keeping a clean and properly lubricated rifle will naturally reduce the risk of failure and extend the life of your rifle. During each cleaning, inspect all parts of cracks, burrs and general wear and tear that may bring your rifle out of spec.

Some Final Thing to Consider When cleaning an AR-15

Do you shoot corrosive ammo?  Check out our handy guide for more information and proper cleaning instructions.

Take your time.  You want to be as thorough as possible.  Really get inside the bolt carrier with every rag and cleaner you possible can.

When inserting the firing pin retaining pin, remember the big hole is where it goes in.  If you put it in the small hole on the other side, you’re going to have a bad day.

Anything that moves on your rifle should get at least one drop of lubricant whenever you clean.  Just like an engine, that oil is important! I cannot stress this enough.

That about does it for this one folks, if you have any questions or want tell us about your own cleaning procedures, drop us a line in the comments below!
